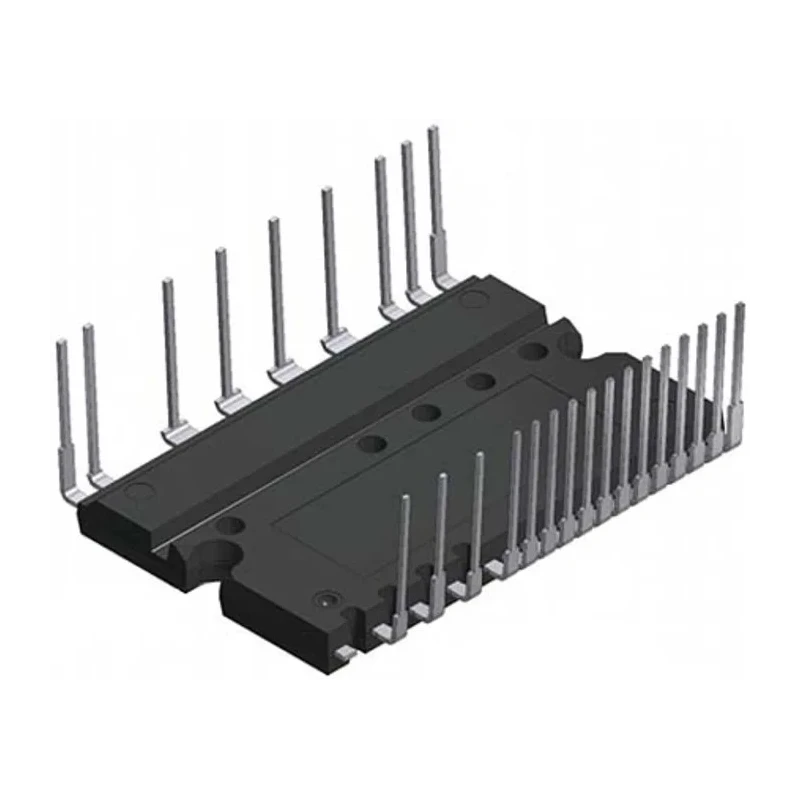

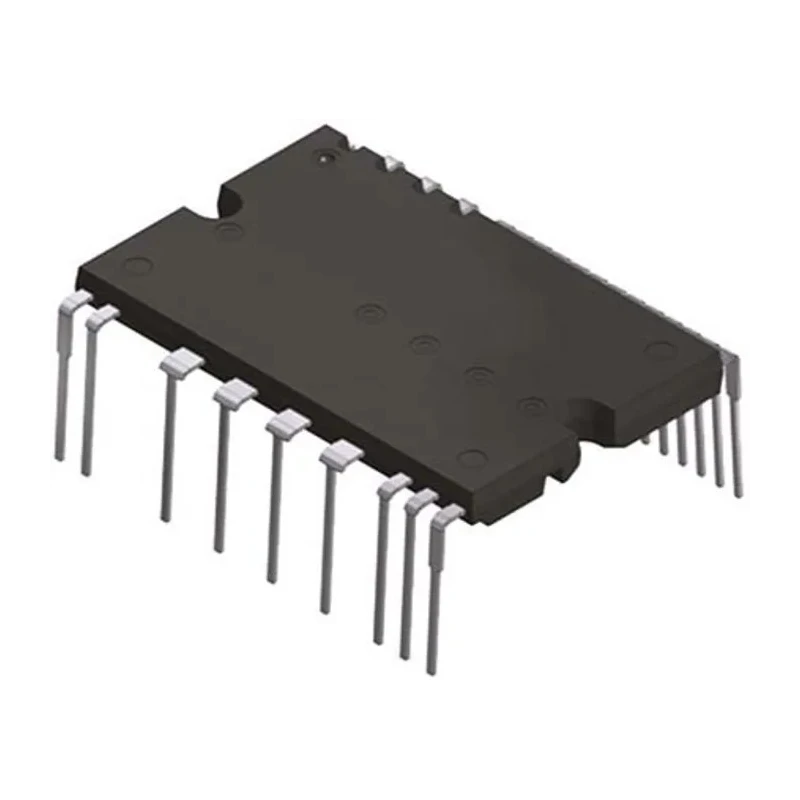

STMicroelectronics N-Channel Array Smart Power Module 15 A 600 V 26-Pin SDIP2F Through Hole STGIF10CH60TS-L

STMicroelectronics STGIF10CH60TS-L is a high-performance N-Channel Array Smart Power Module designed for motor drive and power control applications. It supports a maximum continuous collector current of 15 A and a collector-emitter voltage of 600 V, making it suitable for demanding industrial and commercial uses. The module comes in a 26-pin SDIP2F through-hole package for reliable mounting and connectivity.

This smart power module features 6 transistors configured as an array, enabling efficient three-phase motor control with integrated drivers and protections. Its Small Low-Loss Intelligent Molded Module (SLLIMM™) design offers an optimal balance of conduction and switching energy, enhancing motor drive efficiency up to 20 kHz switching frequencies.

The STGIF10CH60TS-L operates reliably across a wide temperature range from -40°C to 125°C junction temperature and includes essential functions such as undervoltage lockout, smart shutdown, interlocking, and comparator-based fault protection against over-temperature and over-current conditions.

Its compact dimensions (38 mm length, 24 mm width, 3.5 mm height) help reduce PCB footprint without compromising performance. The module's low collector-emitter saturation voltage (1.95 V) and maximum power dissipation of 33 W contribute to its efficient power management and thermal stability.

This smart power module is widely used in industrial motor controllers, HVAC systems, manufacturing equipment, and other commercial electric motor drive applications requiring robust and efficient power electronic components.

Includes 6 transistors in an array configuration for effective motor control. Features SDIP2F package with 26 pins and through-hole mounting. Operates reliably from -40°C up to 125°C operating temperature. Maximum power dissipation is 33 watts with low collector emitter saturation voltage at 1.95 V.

Compact dimensions of 38 mm length, 24 mm width, and 3.5 mm height optimize PCB space. Incorporates advanced SLLIMM™ technology for low switching loss and EMI reduction. Supports undervoltage lockout, smart shutdown, and fault protection for enhanced safety.

Designed for 3-phase inverter bridges with integrated control ICs and freewheeling diodes. Explore our broad range of Power Modules and semiconductors for industrial and commercial electronics at EnvMart.
