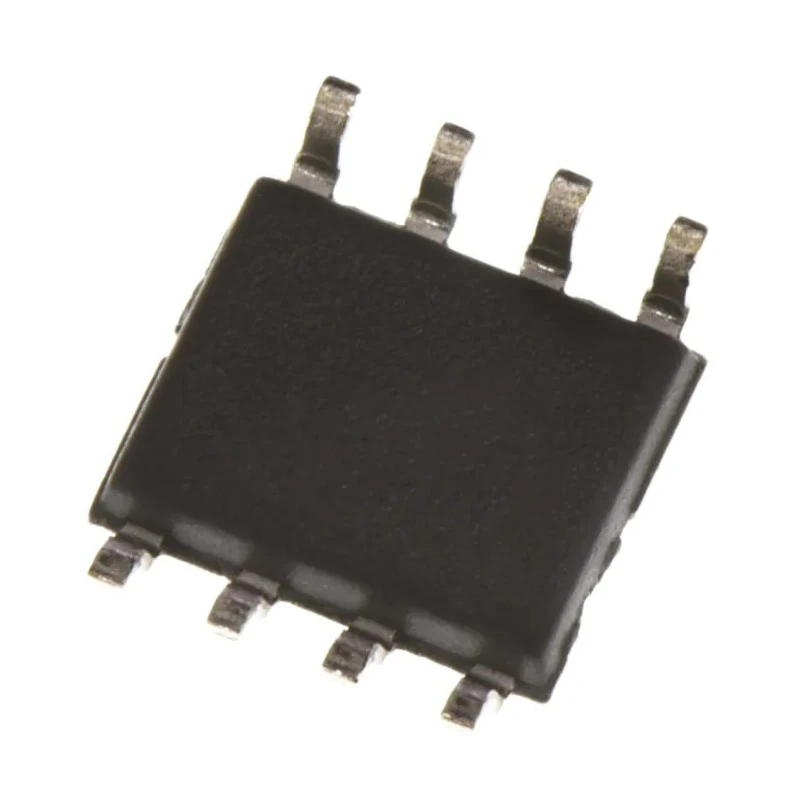

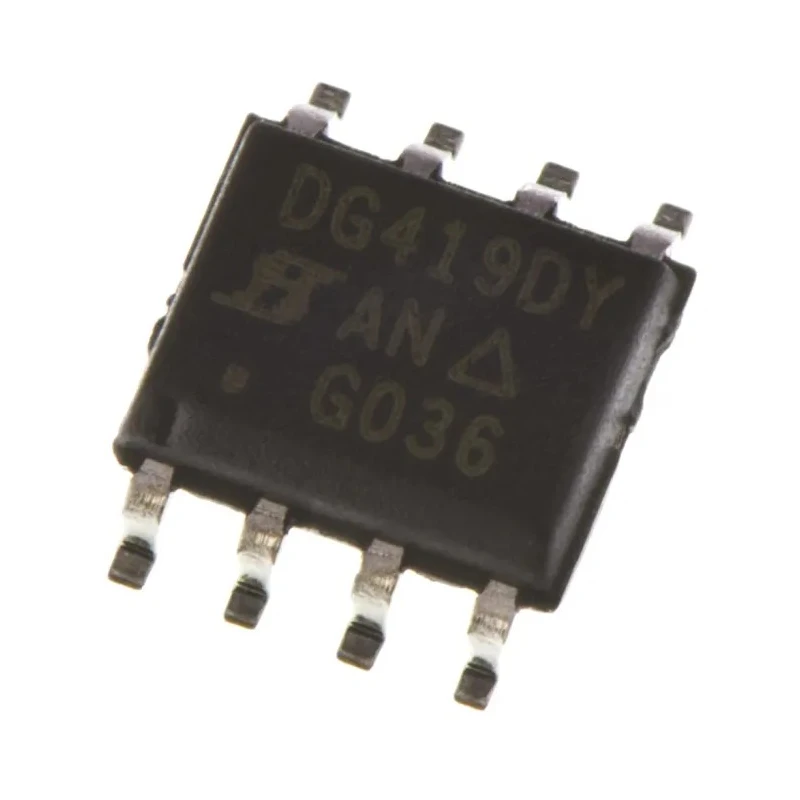

Vishay Analogue Switch CMOS Single SPDT 8-Pin SOIC DG419DY-T1-E3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 1.55mm |
| Length | 5mm |
| Model | DG419DY-T1-E3 |
| Width | 4mm |
| Mount Type | Surface |
| Output type | CMOS/TTL |
| Series | DG419 |
| Configuration | Single SPDT |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Number of Elements per Chip | 1 |
| Maximum Supply Voltage | 44V |
| Logic Family | CMOS |
| Maximum On State Resistance | 45Ω |
Key Features
- Operates from 5V to 44V supply voltage, allowing versatile system integration.
- Maximum on-state resistance is 45 ohms, ensuring controlled signal attenuation.
- CMOS logic family guarantees compatibility with TTL-level interfaces.
- Compact 8-pin SOIC surface-mount package suitable for space-constrained PCBs.
- Operational temperature range from -40°C to 85°C for reliable industrial applications.
- Single-pole double-throw configuration simplifies signal switching between two outputs.
- RoHS compliant, meeting environmental and material standards.
- Ideal for instrumentation, audio multiplexing, and sensor input routing in mixed-signal controllers.
Product Description
Vishay DG419DY-T1-E3 is an analogue switch featuring a CMOS single SPDT configuration housed in a compact 8-pin SOIC package. It supports a broad supply voltage range from 5V to 44V, facilitating adaptable system design across diverse industrial and commercial applications.
This device is designed for efficient surface mounting and is well-suited for mixed-signal circuits requiring TTL-compatible switching elements. The maximum on-state resistance of 45 ohms ensures minimal signal loss during operation.
With an operational temperature span of -40°C to 85°C, the DG419DY-T1-E3 maintains reliable performance in demanding environments. Its RoHS compliance confirms adherence to important environmental standards.
The single-pole double-throw architecture enables precise routing of analogue signals, making it an excellent choice for instrumentation, multiplexing audio and sensor inputs, and signal steering in low-voltage power modules. Usage extends to compact consumer electronics requiring surface-mount components.
Operates within a 5V to 44V supply voltage range for system flexibility. Maximum on-state resistance of 45Ω for optimized signal integrity. CMOS logic family ensures easy interfacing with TTL logic levels. Compact 8-pin SOIC surface-mount package ideal for dense circuit layouts.
Wide temperature range (-40°C to 85°C) for industrial-grade reliability. Single SPDT switch configuration simplifies signal routing. RoHS certified, meeting industry environmental standards. Applicable in mixed-signal controllers, instrumentation, and consumer electronics.
This analogue switch from Vishay is suitable for industrial, laboratory, manufacturing, and electronics applications where reliable signal control and compact design are paramount. Explore more products in the Semiconductor Analogue Switch category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a supply voltage range of 5V to 44V, allowing for versatile system integration across various applications.
The maximum on-state resistance is 45 ohms, which helps ensure controlled signal attenuation during operation.
It utilizes a CMOS logic family, ensuring compatibility with TTL-level interfaces for easy integration into existing systems.
This unit has a height of 1.55mm, a length of 5mm, and a width of 4mm, making it suitable for space-constrained PCB layouts.
The operational temperature range is from -40°C to 85°C, ensuring reliable performance in demanding industrial environments.
It is housed in a compact 8-pin SOIC surface-mount package, ideal for dense circuit designs.
This analogue switch is ideal for instrumentation, audio multiplexing, and sensor input routing in mixed-signal controllers.
Yes, it is RoHS compliant, meeting important environmental and material standards.
The DG419DY-T1-E3 contains 1 element per chip, which simplifies its integration into various circuits.
This model features a surface mount type, making it suitable for automated assembly processes in manufacturing.
The output type is CMOS/TTL, allowing for compatibility with a wide range of digital systems.
This analogue switch is part of the DG419 series, which is known for its reliable performance in signal switching applications.
