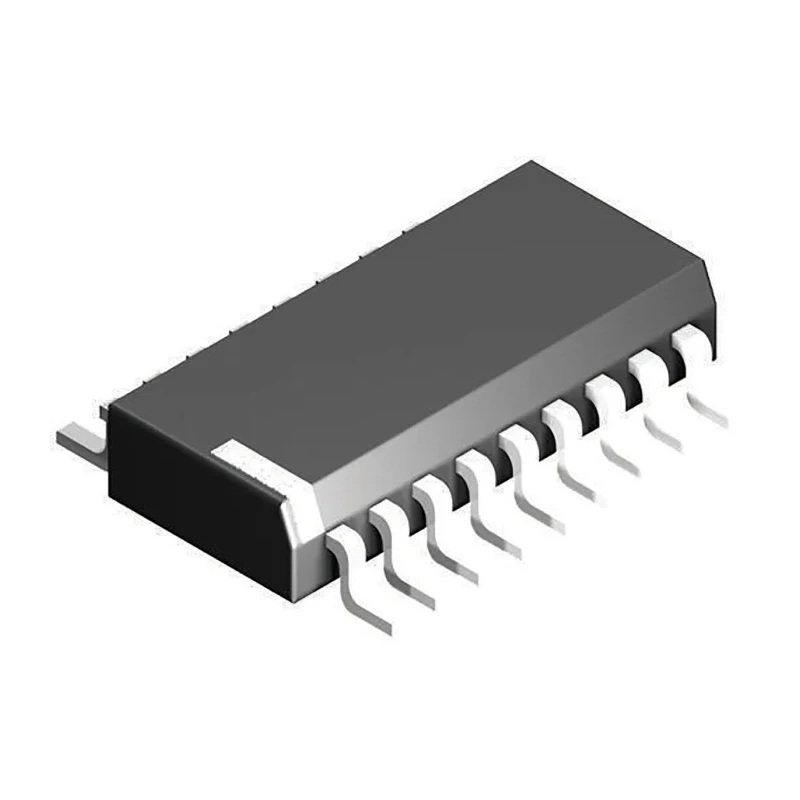

Toshiba High Side Power Switch IC, 8 Outputs, 18-Pin SOP TBD62083AFG(Z)
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Toshiba |
| Model | TBD62083AFG(Z) |
| Mount Type | Surface |
| Number of inputs | 8 |
| Series | TBD62083A |
| Maximum Operating Temperature | 85°C |
| Package Type | SOP |
| Minimum Operating Temperature | -40°C |
| Operating Current | 0.1mA |
| Number of outputs | 8 |
| Pin Count | 18 |
| Maximum Supply Voltage | 25V |
| Minimum Supply Voltage | 0.5V |
Key Features
- Features 8 high side switch outputs for parallel load operation.
- Wide supply voltage range from 0.5V to 25V for various operating conditions.
- 18-pin SOP surface mount package optimizes PCB layout and integration.
- Handles an operating current of 0.1mA and supports temperatures from minus 40 to 85 degrees Celsius.
- Ideal for relay and inductive load applications requiring efficient MOSFET driver arrays.
- DMOS transistor array structure with integrated clamping diodes for protection.
- Inputs compatible with low voltage logic sources, enabling seamless interfacing.
Product Description
The Toshiba TBD62083AFG(Z) is a high performance high side power switch IC, built for efficient, reliable switching in industrial and advanced electronic systems. As part of Toshiba's MOSFET driver array series, this integrated circuit supports eight independent high side switch channels. Its design allows direct driving of resistive and inductive loads such as relays, solenoids, or lamps.
With a minimum supply voltage of just 0.5V and a maximum of 25V, the TBD62083AFG(Z) caters to a wide range of applications while maintaining low quiescent current draw (0.1mA). The IC is housed in an 18-pin SOP surface-mount package, making it suitable for compact electronics and automated PCB assembly. Its DMOS transistor architecture delivers optimal switching efficiency and minimal heat generation under rated operating conditions.
Additional features include integrated clamping diodes for robust protection against inductive kickback, and a shared ground and supply pin arrangement to simplify board layout and enhance system reliability. The device supports operation throughout a temperature range from minus 40 to plus 85 degrees Celsius, meeting the requirements for both industrial and automotive settings (note: not certified to automotive standards).
Inputs accept low voltage logic signals, permitting straightforward connection to microcontrollers and digital circuits. The IC's compact SOP package and multiple output design make it an excellent choice for system designers requiring a scaleable, multi-channel solution. Typical applications include control panels, relay and lamp driving modules, PLC expansion cards, and other automation hardware.
Toshiba's TBD62083AFG(Z) stands out for its combination of robust power handling, integrated driver logic, and surface-mount convenience, providing both reliability and space-saving advantages in modern electronics manufacturing environments.
Industrial applications include PLCs, machine automation systems, control cabinets, process instrumentation, and sophisticated relay or solenoid switching subsystems that demand parallel high-side drive capacity with integrated device protection.
Explore more advanced power management and semiconductor solutions from Toshiba in EnvMart's Electronics & Electricals category.
Explore more products in our Power Switch ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this model is 25V.
The minimum operating temperature is -40°C.
It has 8 high side switch outputs.
This model is housed in an 18-pin SOP surface mount package.
The operating current is 0.1mA.
It operates within a temperature range of -40°C to 85°C.
It can drive resistive and inductive loads such as relays, solenoids, or lamps.
The integrated clamping diodes provide protection against inductive kickback.
The minimum supply voltage is 0.5V.
This IC has 8 inputs compatible with low voltage logic sources.
It is suitable for applications such as control panels, relay and lamp driving modules, and PLC expansion cards.
It belongs to the TBD62083A series.
