| Country of Origin | India |
|---|---|
| Brand | ROHM |
| Height | 0.7mm |
| Length | 1.25mm |
| Model | RB500SM-30T2R |
| Width | 0.85mm |
| Mount Type | Surface |
| Series | RB500SM |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-523 |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 100mA |
| Peak Reverse Repetitive Voltage Vrrm | 30V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Maximum Forward Voltage Vf | 0.45V |

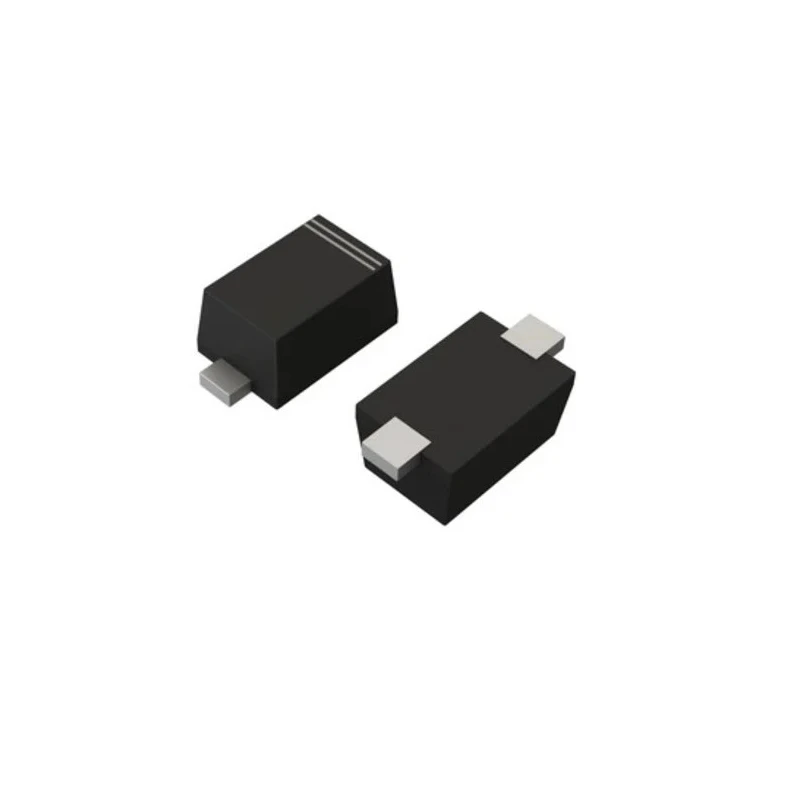

ROHM RB500SM-30T2R Schottky Barrier Diode is a high-reliability surface mount diode engineered for small current rectification applications. It operates at a maximum peak reverse voltage of 30 V and a continuous forward current of 100 mA, making it suitable for low-power electronic circuits requiring efficient rectification.
The diode comes in a compact SOD-523 package with dimensions of 1.25 mm length, 0.85 mm width, and 0.7 mm height, facilitating space-saving PCB designs. The epitaxial planar-type small mold structure enhances performance by providing a low forward voltage drop of 0.45V, which minimizes power loss and heat generation.
It has a maximum operating temperature rating of 150°C, ensuring stable operation within typical industrial and electronics environments. The 2-pin single diode configuration is designed for standard surface mount technology (SMT) assembly processes.
This Schottky Barrier Rectifier is commonly used in applications such as power supply circuits, voltage clamping, and switching circuits requiring rapid recovery times and low forward voltage drop. Despite lacking automotive certification, it is ideal for general electronics manufacturing, including semiconductors and discrete constructions.
Low forward voltage of 0.45V for efficient diode operation. Compact SOD-523 package measures 1.25mm x 0.85mm x 0.7mm. Maximum continuous forward current of 100 mA. Peak reverse repetitive voltage of 30 V for protection against reverse polarity.
High operating temperature rating of 150°C ensures thermal stability. Surface mount design for automated assembly and compact systems. Single diode configuration with 2 pins for simple integration. Epitaxial planar structure offers improved semiconductor reliability.
This ROHM diode is an essential component for manufacturers and engineers developing power-efficient electronic devices requiring reliable small current rectification. It supports industrial, commercial, and consumer electronics use cases, including power conditioning and signal rectification circuits.
