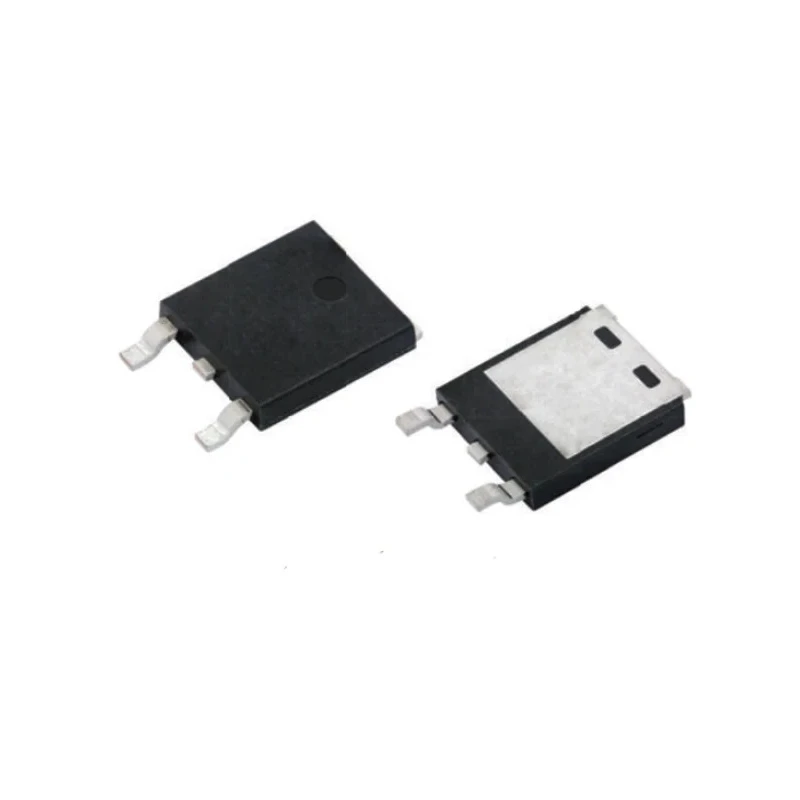

Vishay 150 V 35 A Schottky Barrier Schottky DPAK Surface Mount Low Forward Voltage Rectifier V35PWM153HM3/I
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | V35PWM153HM3/I |
| Mount Type | Surface |
| Series | eSMP |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-252 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 35A |
| Peak Reverse Repetitive Voltage Vrrm | 150V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Non-Repetitive Forward Surge Current Ifsm | 260A |
| Maximum Forward Voltage Vf | 0.71V |
Key Features
- Low profile surface-mount device with a typical height of 1.3 mm.
- Utilizes Trench MOS Barrier Schottky technology for high efficiency.
- Suitable for DC/DC converters, freewheeling diodes, and polarity protection.
- Maximum continuous forward current of 35 A and peak forward surge current of 260 A.
- Operates within temperature range from -40°C to 175°C.
- Meets RoHS compliance and is AEC-Q101 automotive qualified.
- Maximum forward voltage drop of 0.71 V for low power losses.
Product Description
Vishay V35PWM153HM3/I is a high-current density Schottky Barrier rectifier designed for surface mount applications requiring low forward voltage and high efficiency. It operates at a maximum reverse voltage of 150 V and supports a maximum continuous forward current of 35 A. The TO-252 package ensures reliable and automated placement on PCBs, ideal for power supply and automotive applications.
Based on Trench MOS Barrier Schottky technology, this rectifier delivers low profile packaging with a typical height of 1.3 mm, enabling compact and efficient circuit designs. Typical applications include DC/DC converters, freewheeling diodes, polarity protection, and various power electronic devices operating at high frequencies.
The device can withstand peak non-repetitive forward surge currents up to 260 A and operates reliably within temperatures from -40°C to 175°C. It is RoHS compliant and meets the automotive industry standard AEC-Q101, ensuring suitability for automotive and industrial environments where robustness and quality are critical.
This rectifier's low forward voltage drop of 0.71 V minimizes power consumption and heat generation, improving system efficiency. Its surface mount TO-252 (DPAK) package facilitates automated manufacturing processes in high volume production.
Low profile surface mount package with 1.3 mm height. Trench MOS Barrier Schottky technology for low forward voltage drop. High continuous forward current and surge capability. Wide operating temperature range from -40°C to 175°C.
RoHS compliant and automotive standard AEC-Q101 qualified. Optimized for high frequency DC/DC converters and polarity protection.
This Vishay Schottky Barrier Rectifier is ideal for industrial, automotive, power management, and electronic manufacturing applications. Browse our extensive selection of semiconductor components on EnvMart for related products and support.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this model is 35 A.
It has a peak reverse repetitive voltage rating of 150 V.
The maximum forward voltage drop is 0.71 V, which helps in minimizing power losses.
This unit operates reliably within a temperature range from -40°C to 175°C.
It is packaged in a TO-252 (DPAK) surface mount configuration.
This rectifier meets the AEC-Q101 automotive standard, ensuring its suitability for automotive applications.
It can withstand peak non-repetitive forward surge currents up to 260 A.
It is suitable for applications such as DC/DC converters, freewheeling diodes, and polarity protection.
This model utilizes Trench MOS Barrier Schottky technology for high efficiency.
Yes, it is RoHS compliant, making it suitable for environmentally conscious applications.
The country of origin for this rectifier is India.
It features a single diode configuration.
