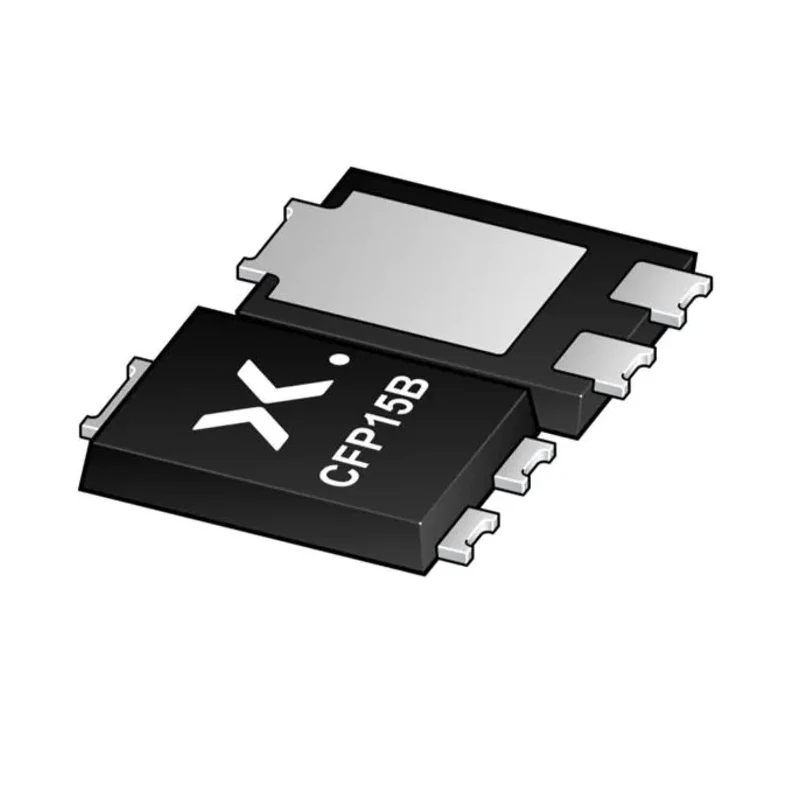

Nexperia 60 V 2 A Trench MEGA Schottky Barrier Rectifier Surface Mount CFP15B 3-Pin PMEG060T040CLPE-QZ

Name: Nexperia 60 V 2 A Trench MEGA Schottky Barrier Rectifier Surface Mount CFP15B 3-Pin PMEG060T040CLPE-QZ
Brand: Nexperia
SKU: 310229
Price: 0.52 USD
Availability: InStock



Category Schottky Barrier Rectifier Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Height	0.95mm
Model	PMEG060T040CLPE-QZ
Mount Type	Surface
Series	PMEG060T040CLPE
Maximum Operating Temperature	175°C
Package Type	CFP15B
Minimum Operating Temperature	-55°C
Standards/Approvals	AEC-Q101
Pin Count	3
Automotive Standard	AEC-Q101
Maximum Continuous Forward Current If	2A
Peak Reverse Repetitive Voltage Vrrm	60V
Diode Configuration	Single
Rectifier Type	Trench MEGA Schottky
Peak Reverse Current Ir	1.2μA
Peak Non-Repetitive Forward Surge Current Ifsm	60A
Maximum Forward Voltage Vf	620mV
Peak Reverse Recovery Time trr	12ns

Key Features

This rectifier features low forward voltage for reduced conduction losses.
It has a maximum continuous forward current of 2 amperes.
The device provides a peak reverse repetitive voltage of 60 volts.
It has a peak non-repetitive forward surge current rating of 60 amperes.
The rectifier exhibits a very low peak reverse current of 1.2 microamperes.
It operates reliably within a temperature range of -55°C to 175°C.
The device has a fast peak reverse recovery time of 12 nanoseconds.
It is compliant with the automotive AEC-Q101 standard for quality and reliability.

Product Description

Nexperia PMEG060T040CLPE-QZ is a low voltage Schottky Barrier Rectifier designed for high efficiency DC-to-DC conversion and low power consumption applications. It features trench MEGA Schottky technology which minimizes forward voltage drop and leakage current, enhancing power efficiency and thermal performance in compact surface mount plastic packages (CFP15B).

This 3-pin rectifier supports a maximum continuous forward current of 2 A and can tolerate surge currents up to 60 A. It offers a peak reverse repetitive voltage of 60 V, making it suitable for a wide range of power management and automotive applications. The rectifier’s fast peak reverse recovery time of 12 ns reduces switching losses, optimizing performance in power supplies and freewheeling applications.

Engineered for automotive grade reliability, it complies with the AEC-Q101 standard, ensuring ruggedness and durability under harsh operating conditions from -55°C to 175°C. The low profile of 0.95 mm height plastic package and flat leads enable reliable surface mount soldering and thermal dissipation on modern PCBs.

The PMEG060T040CLPE-QZ is ideal for industrial, automotive, and communications equipment requiring efficient power rectification with reverse polarity protection and high power capability.

Low forward voltage reduces conduction losses and improves efficiency. Compact CFP15B surface mount package with flat leads for easy PCB mounting. Fast switching with 12 ns peak reverse recovery time for reduced switching losses.

AEC-Q101 automotive standard certified for high reliability in automotive and industrial environments. Wide operating temperature range suitable for extreme conditions. High surge current capability supports transient loads and inrush currents.

Low reverse leakage current improves power efficiency in low voltage applications. Versatile for use in DC-to-DC converters, freewheeling diodes, and reverse polarity protection circuits.
