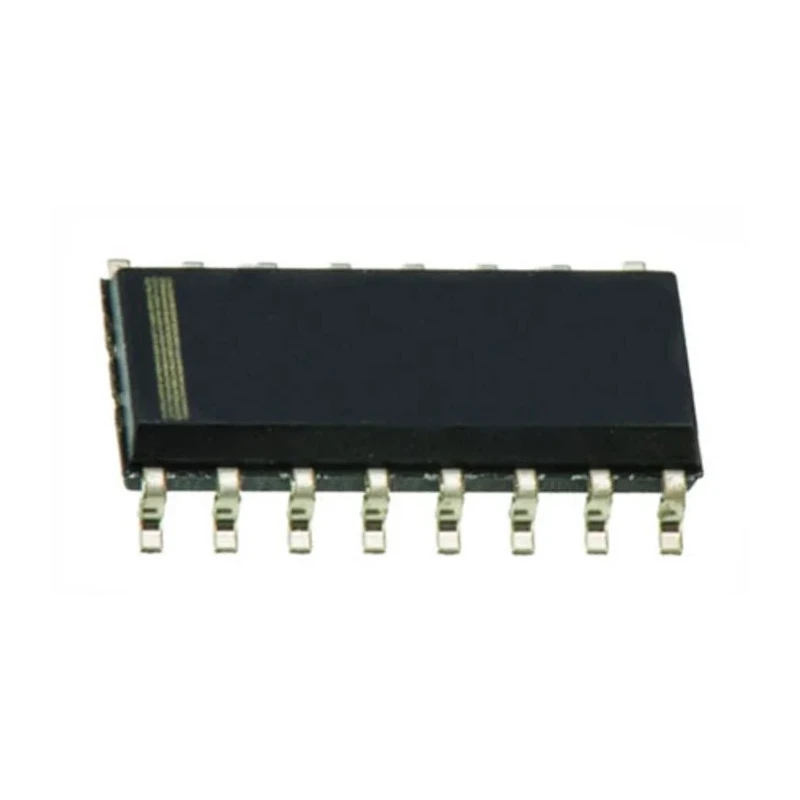

Texas Instruments Voltage Level Shifter 4 TTL to CMOS Uni-Directional 5 to 18V 16-Pin SOIC CD4504BM96

Free Delivery in India | Lowest Global Shipping Charges

Texas Instruments Voltage Level Shifter 4 TTL to CMOS Uni-Directional 5 to 18V 16-Pin SOIC CD4504BM96

Name: Texas Instruments Voltage Level Shifter 4 TTL to CMOS Uni-Directional 5 to 18V 16-Pin SOIC CD4504BM96
Brand: Texas Instruments
SKU: 203373
Price: 0.71 USD
Availability: InStock



Category Voltage Level Shifter Brand Texas Instruments Condition New

Specifications

Country of Origin	India
Brand	Texas Instruments
Height	1.58mm
Length	9.9mm
Model	CD4504BM96
Mount Type	Surface
Output type	TTL/CMOS
Series	CD4504B
Maximum Operating Temperature	125°C
Package Type	SOIC
Minimum Operating Temperature	-55°C
Pin Count	16
Number of Elements per Chip	4
Maximum Supply Voltage	18V
Logic Family	4000
Logic Function	Voltage Level Shifter
Minimum Supply Voltage	5V
Maximum High Level Output Current	-4.2mA
Maximum Propagation Delay Time @ CL	280ns
Direction Type	Uni-Directional
Maximum Low Level Output Current	4.2mA
Translation	TTL to CMOS, CMOS
Wide operating voltage range	3 to 18V

Key Features

Belongs to the 4000 CMOS logic family.
Uni-directional voltage level shifting between TTL and CMOS.
Includes four elements per chip for efficient translation.
Maximum propagation delay time of 280ns at load capacitance.
Surface mount SOIC package suitable for automated assembly.
Wide operating voltage range from 3 to 18 volts.
Maximum output current of ±4.2 mA for both logic levels.
Operates within industrial temperature range of -55°C to 125°C.

Product Description

Texas Instruments CD4504BM96 is a high-performance voltage level shifter from the 4000 Series CMOS Logic family designed for electronic and industrial applications requiring reliable signal translation between TTL and CMOS logic levels.

This uni-directional device integrates four Voltage Level Shifter elements within a 16-pin SOIC surface mount package, delivering efficient signal integrity across a broad supply voltage range from 5V to 18V, with actual operating capability between 3V and 18V.

The maximum propagation delay time is 280ns at specified load capacitance, ensuring fast and stable performance suitable for complex logic circuits.

Its electrical characteristics include a maximum low-level output current of 4.2mA and maximum high-level output current of -4.2mA, enabling it to drive various digital logic loads.

Operating temperature range of -55°C to 125°C makes it ideal for harsh environmental conditions typically found in industrial, automotive, and instrumentation equipment.

The compact form factor with a length of 9.9mm and height of 1.58mm permits optimized PCB layouts. It does not carry any automotive or special standards approvals but is a reliable component for general electronics use.

Belongs to the 4000 CMOS Logic Family. Uni-Directional Level Shifter from TTL to CMOS logic. 4 Elements per chip packaged in 16-pin SOIC. Wide supply voltage range from 3 to 18 volts. Supports high and low-level output currents up to ±4.2mA.

Industrial grade temperature range from -55°C to 125°C. Compact size for surface mount PCB integration. Non-automotive without special regulatory approval.

These features make the CD4504BM96 suitable for use in industrial, laboratory, communication equipment, and various electronics design projects requiring level shifting and signal interfacing.

Explore more Texas Instruments semiconductor and logic IC solutions with confidence at EnvMart’s comprehensive electronics components catalog.
