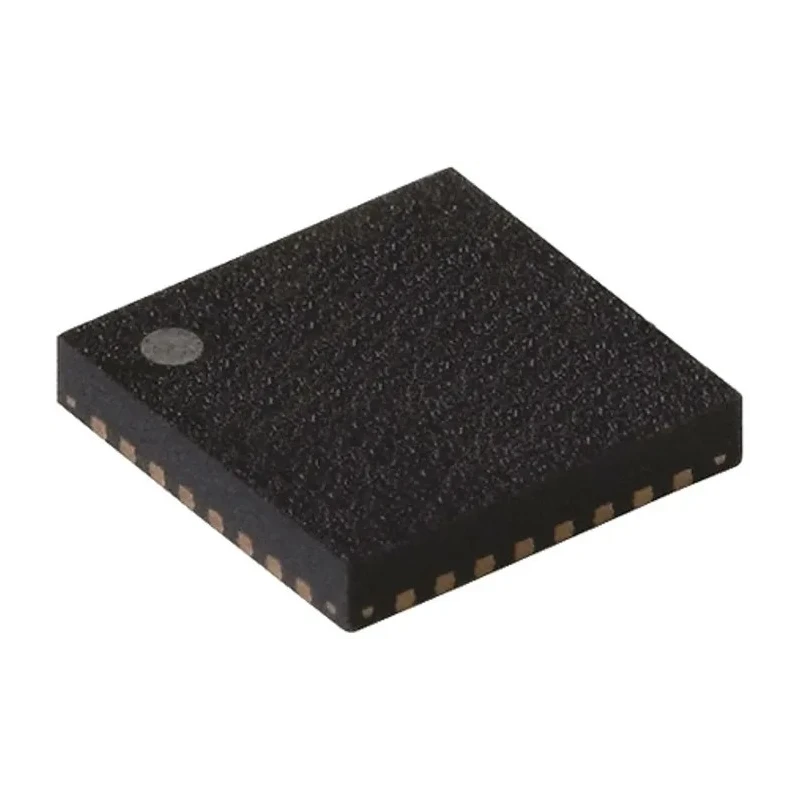

NXP RFID Transponder, 32-Pin QFN Package, ASK Modulation, 3.4Mbps Data Rate, Operating Voltage 2.5V to PN5120A0HN1/C1,151

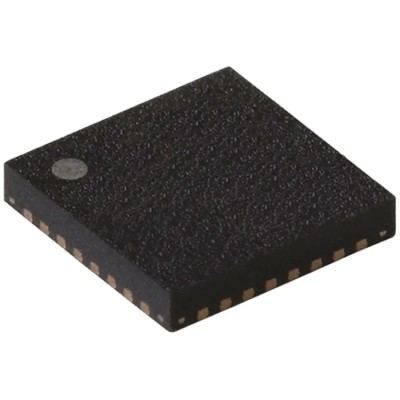

The NXP PN5120A0HN1/C1,151 is a highly integrated RFID transponder device designed for NFC contactless communication and RFID applications operating at a frequency of 13.56MHz. It features a compact 32-pin QFN surface mount package with dimensions 5.1mm length, 5.1mm width, and a low profile height of 0.95mm. The device supports ASK modulation with a data rate of up to 3.4Mbps and an OTA data rate of up to 424kbps, making it suitable for high-speed NFC communication.

This transponder operates over a wide supply voltage range from 2.5V minimum to 3.6V maximum, compatible with most low-power embedded systems. Its industrial temperature range from -40°C to +90°C ensures robust operation in harsh environments. The device integrates RF level and data mode detectors, a 64-byte Tx/Rx FIFO buffer, and a CRC coprocessor for reliable data integrity and signal processing.

The PN512 supports host communication via SPI, I²C, and UART interfaces, offering flexible connectivity options for system designers. It conforms to ISO/IEC 14443 Type A/B and FeliCa standards, providing interoperability with a wide range of RFID and NFC products. The RF operating frequency of 13.56MHz supports proximity communication distances of up to 50mm, suitable for secure access control, inventory management, and automotive NFC applications.

Highly integrated NFC transceiver supporting ISO/IEC 14443 Type A/B and FeliCa standards. 32-pin QFN surface mount package optimized for space-constrained designs. Supports ASK modulation and core data rates up to 3.4Mbps for efficient communication.

Wide operating voltage and temperature range ensuring versatile application compatibility. Includes advanced RF detection and data buffering features for performance reliability. Multiple host interface options (SPI, I²C, UART) for system integration flexibility.

Enables proximity communication with up to 50mm operating distance at 13.56MHz RF.

This product is ideal for industrial, commercial, automotive, and general NFC/RFID implementations requiring compact, reliable RFID transponders compliant with international communication standards. Incorporate the PN5120A0HN1/C1,151 RFID Transponder for seamless integration in NFC-enabled devices and secure contactless applications. Explore other RF ICs and communication modules to build complete contactless system solutions within various industrial and commercial environments.
