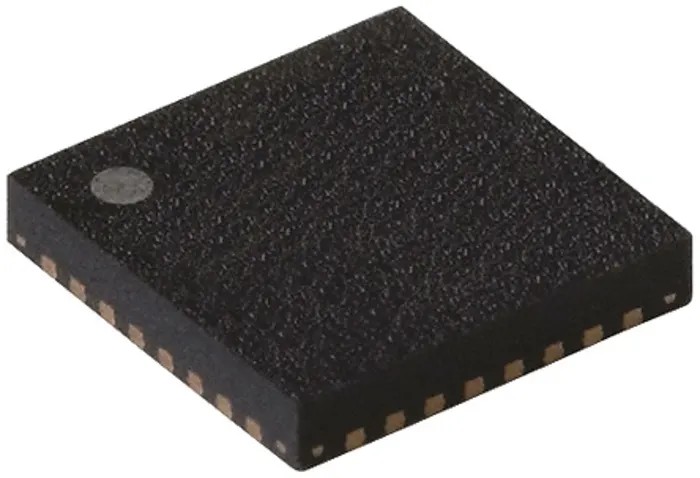

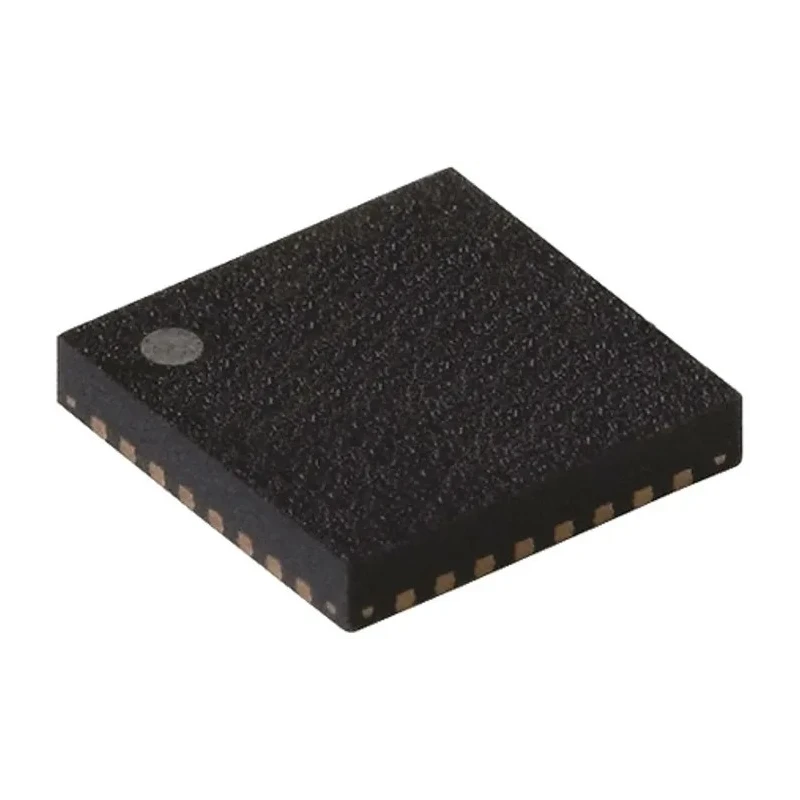

NXP RFID Transponder Module PN5120A0HN1/C1,151 32-Pin QFN Package 13.56MHz ASK Modulation PN5120A0HN1/C1,151
Specifications
| Country of Origin | India |
|---|---|
| Brand | NXP |
| Height | 0.95mm |
| Operating Temperature Range | -30 to +85°C |
| Length | 5.1mm |
| Model | PN5120A0HN1/C1,151 |
| Width | 5.1mm |
| Mount Type | Surface |
| Series | PN512 |
| Maximum Operating Temperature | 90°C |
| Package Type | QFN |
| Sub Type | RFID Transponder |
| Minimum Operating Temperature | -40°C |
| Pin Count | 32 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 2.5V |
| Host communication | SPI, I²C, UART |
| Modulation Technique | ASK |
| OTA Data Rate | up to 424kbps |
| RF Operating Frequency | 13.56MHz |
| Operating Band 1 Frequency | 13.56MHz |
| Number of Operating Bands | 1 |
| Proximity operating distance | up to 50mm |
Key Features
- Supports ASK modulation technique for reliable signal transmission.
- Data rate of up to 3.4Mbps ensures fast communication.
- Compatible with surface mount applications using 32-pin QFN package.
- Operating voltage range from 2.5V to 3.6V enables versatile power supply options.
- Designed to operate within temperature range from -40°C to 90°C for tough environments.
- Compact package dimensions with 5.1mm length and width and 0.95mm height.
- Compliant with NFC Forum standards for contactless communication.
- Integrated host communication interfaces including SPI, I²C, and UART.
Product Description
NXP PN5120A0HN1/C1,151 RFID Transponder is a highly integrated NFC Forum compliant transceiver designed for contactless communication in industrial and commercial applications. Featuring a 32-Pin QFN package, this module operates at RF frequency of 13.56MHz and supports ASK modulation technique to ensure secure and efficient data transmission.
Operating within a voltage range of 2.5V to 3.6V, the device is suitable for various power supply configurations. Its compact dimensions (5.1mm x 5.1mm x 0.95mm) and surface mount design enable flexible integration into printed circuit boards.
The module supports a maximum data rate of 3.4Mbps and provides a proximity operating distance up to 50mm, making it ideal for RFID applications such as asset tracking, access control, and secure identification. It supports multiple host communication protocols including SPI, I²C, and UART to facilitate versatile system interfacing.
Designed to withstand operating temperatures from -40°C to 90°C, this transponder is suitable for challenging environments including industrial, manufacturing, and commercial systems. Standards compliance includes ISO/IEC 14443 Type A/B and FeliCa, ensuring interoperability across diverse RFID and NFC applications.
Comes housed in a 32-pin QFN surface mount package for easy PCB integration. Features integrated RF level and data mode detectors, along with a 64-byte Tx/Rx FIFO buffer. Includes a CRC coprocessor that enhances communication reliability.
Supports a single operating band at 13.56MHz frequency. Offers proximity operation up to 50mm, suitable for contactless applications. Qualified for use in industrial, electrical, electronics, and wireless communication applications.
Integrate the NXP PN5120A0HN1/C1,151 RFID Transponder into advanced RFID reader systems, NFC devices, and secure identification platforms. This transponder module enhances efficient data communication in modern industrial and commercial electronic ecosystems.
Explore a wide range of RFID components and modules in the Electronics & Electricals category at EnvMart for professional and industrial-grade technology solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at a frequency of 13.56MHz, suitable for RFID applications.
The PN5120A0HN1/C1,151 supports a maximum data rate of up to 3.4Mbps, ensuring fast communication.
This unit has compact dimensions of 5.1mm x 5.1mm x 0.95mm, making it suitable for surface mount applications.
The operating temperature range for the PN5120A0HN1/C1,151 is from -40°C to 90°C, allowing it to function in tough environments.
It supports multiple host communication interfaces including SPI, I²C, and UART for versatile system integration.
The PN5120A0HN1/C1,151 allows for a proximity operating distance of up to 50mm, making it effective for contactless applications.
This transponder is housed in a 32-pin QFN package, which is suitable for surface mounting on PCBs.
The PN5120A0HN1/C1,151 uses ASK modulation for reliable signal transmission.
The operating voltage range for this model is from 2.5V to 3.6V, allowing for flexible power supply options.
Yes, it is compliant with NFC Forum standards and ISO/IEC 14443 Type A/B and FeliCa, ensuring interoperability in various applications.
This model is suitable for applications such as asset tracking, access control, and secure identification in industrial and commercial settings.
The height of this transponder is 0.95mm, contributing to its compact design for integration into electronic systems.
