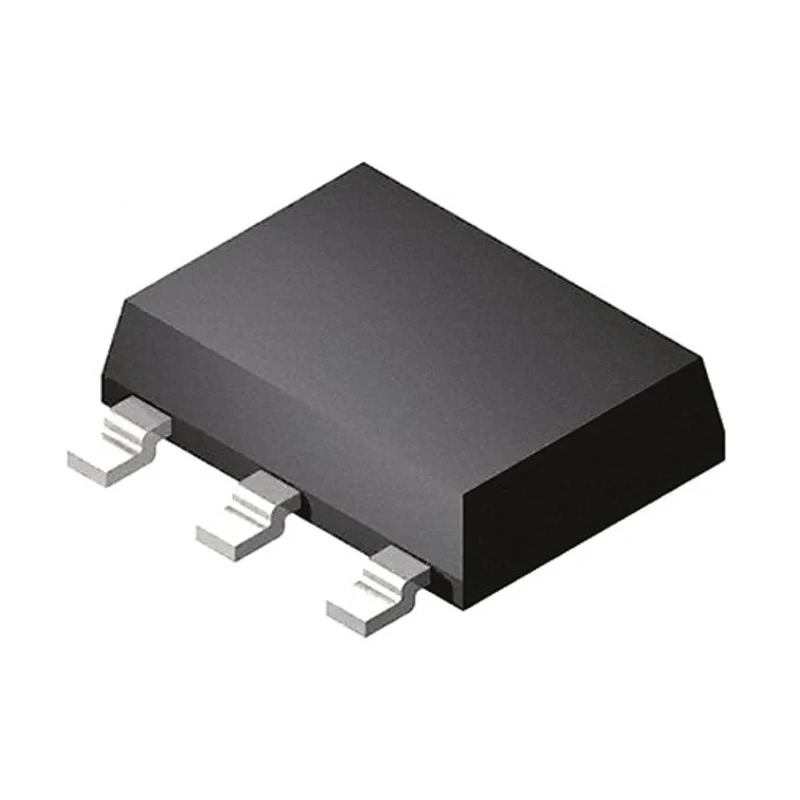

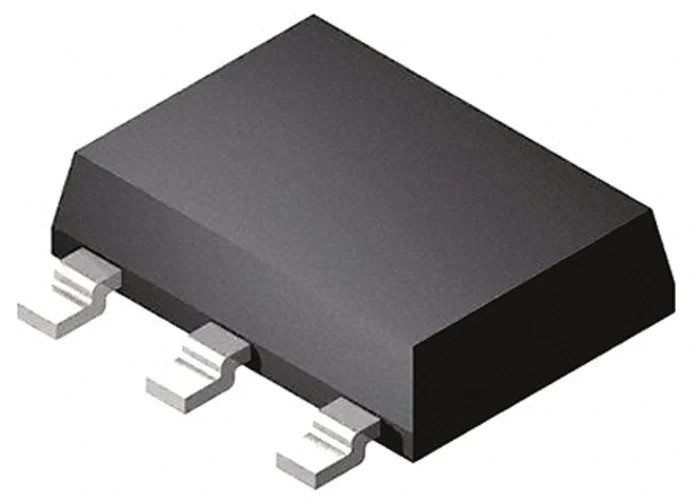

DiodesZetex Bipolar Power Transistor NPN 6A 60V 4-Pin SOT-223 ZX5T851GTA

DiodesZetex ZX5T851GTA is a reliable Bipolar Power Transistor designed for high-performance electronic circuits requiring robust current and voltage handling capabilities. This NPN transistor supports a maximum collector current of 6 amps and withstands collector-emitter voltages up to 60 volts, making it suitable for power amplification and switching applications.

Encapsulated in a compact 4-pin SOT-223 surface mount package, the transistor offers efficient heat dissipation with a maximum power rating of 12.8 watts. Its maximum transition frequency of 130 MHz supports fast switching, ideal for power management and signal processing in industrial, automotive, and consumer electronics.

The component operates reliably in a wide temperature range from -55°C to 150°C, meeting the AEC-Q101 automotive standard for enhanced durability in demanding environments. With a minimum DC current gain of 20, the device ensures consistent amplification performance, suitable for various high-frequency applications.

The ZX5T851GTA transistor's physical dimensions, including a length of 6.55 mm, width of 7.1 mm, and height of 1.65 mm, aid in designing compact and efficient printed circuit boards (PCBs). This surface-mounted transistor is tailored for advanced electronic designs in sectors such as automotive, industrial control, and power regulation.

Supports a maximum collector current of 6 amperes for high power applications. Collector-emitter voltage rating of 60 volts ensuring reliable operation. Constructed with NPN transistor polarity for standard bipolar operations.

Compact SOT-223 package with 4 pins suitable for surface mounting. Maximum power dissipation of 12.8 watts for efficient heat handling. Maximum transition frequency of 130 MHz ideal for switching applications. Operating temperature range from -55°C to 150°C for extended environmental durability.

Automotive grade standard AEC-Q101 certification ensuring quality and reliability. Minimum DC current gain of 20 providing dependable amplification. Pin length of 6.55 mm, width 7.1 mm, and height 1.65 mm fits compact electronic designs.

This transistor is widely used in electronic manufacturing for switching and amplification purposes, meeting industrial-grade standards and automotive quality certifications. It supports various applications in power management, signal conditioning, and electronic circuit protection.
