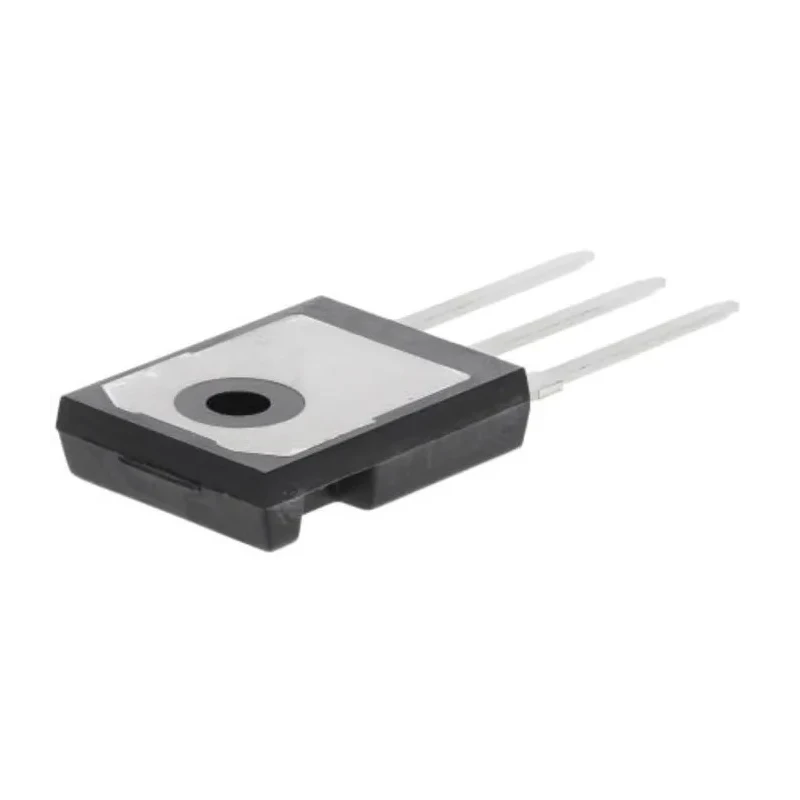

onsemi Bipolar Power Transistor NPN 25 A 100 V dc 3-Pin SOT-93 Through Hole TIP35CG

onsemi TIP35CG Bipolar Power Transistor is a reliable and versatile NPN transistor designed for high power amplification and switching purposes. It supports a maximum continuous collector current of 25 amperes and a collector emitter voltage rating of 100 volts dc, which makes it suitable for demanding electronic circuits and industrial applications.

This transistor features a 3-pin SOT-93 package with through-hole mount type, ensuring strong mechanical support and easy integration into printed circuit boards. The device offers high power dissipation capabilities up to 125 watts, ensuring thermal stability during heavy load operation.

Featuring a low leakage current (ICEO) at only 1.0 mA at both 30 and 60 volts and an excellent typical DC gain (hFE) of 40 at 15 amperes, the TIP35CG ensures efficient signal amplification with minimal distortion. It operates comfortably across a wide temperature range from -65°C up to 150°C, making it well-suited for challenging industrial environments.

The transistor has a maximum transition frequency of 3 MHz and voltage ratings of 100 V between collector-base (VCBO) and 5 V from emitter-base (VEBO). Its 3-pin configuration and NPN polarity allow for straightforward implementation in power amplifier stages, motor control drivers, and general switching circuits.

Engineers and designers can use the TIP35CG transistor in industrial equipment, manufacturing systems, electronics prototypes, and laboratory setups. It is part of the TIP35 series and allows for complementary pairing with TIP36 series (PNP types) for push-pull amplifier designs.

Designed for power amplifier and switching applications with 25 A maximum collector current. Robust SOT-93 package with through-hole mounting for secure installation. High power dissipation rating of 125 W for thermal efficiency.

Wide operating temperature range from -65°C to 150°C for harsh conditions. Low leakage and high gain performance for signal integrity. 3-pin NPN configuration suitable for general-purpose circuits. Maximum transition frequency of 3 MHz supports mid-frequency operation.

Voltage limits: 100 V collector-emitter and 5 V emitter-base. Country of origin: China.
