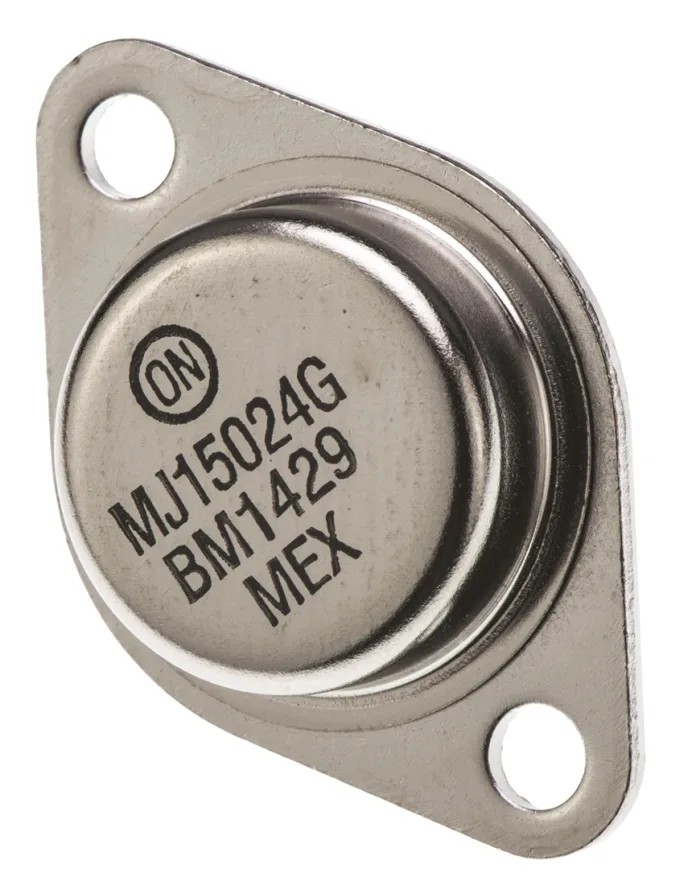

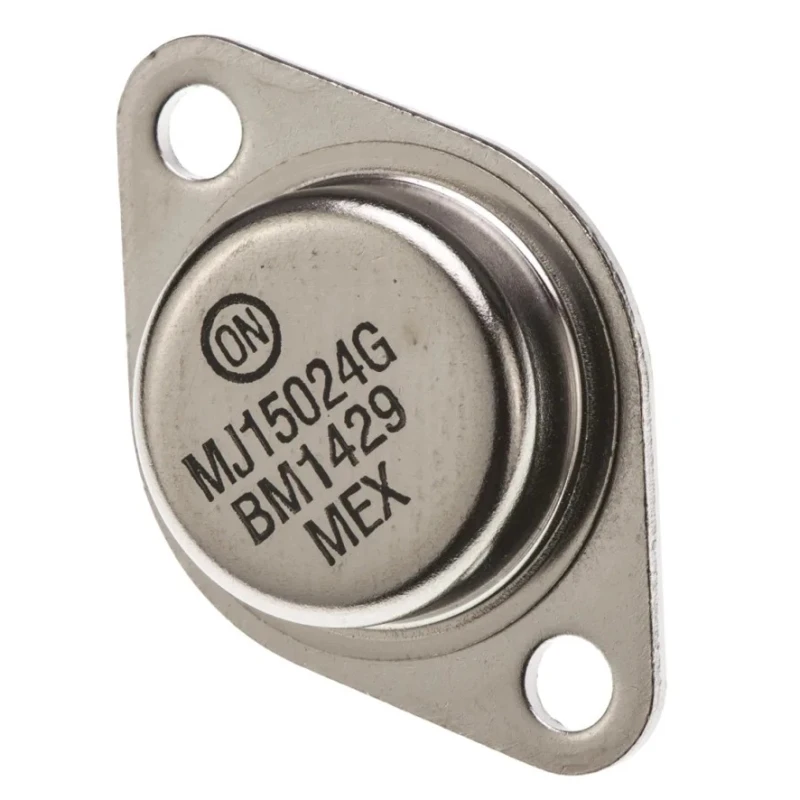

onsemi Transistor 16 A NPN 250 V 3-Pin TO-204 Bipolar Power Transistor MJ15024G

onsemi MJ15024G Bipolar Power Transistor is a high-power NPN transistor designed to handle 16 amperes of collector current with a collector-emitter voltage rating of 250 volts. Packaged in a robust metal TO-204 form factor featuring 3 pins, it is ideal for demanding linear and audio amplifier applications as well as disk head positioners.

This device is manufactured to deliver a high safe operating area and excellent DC current gain with a minimum gain (hFE) of 5, providing effective performance in power switching and amplification tasks. The transistor is built to operate reliably within a wide temperature range, from -65°C to a maximum of 200°C.

The metal TO-204 package enhances heat dissipation to support a power dissipation of up to 250 watts, making it suitable for high temperature environments in industrial or commercial electronics.

The MJ15024G is designed for through-hole mounting, featuring a 3-pin configuration for straightforward PCB integration. Its maximum emitter-base voltage is 5 volts while the maximum collector-base voltage is rated at 400 volts, adding to its robust electrical characteristics.

Typical applications include high-power audio amplifiers, industrial control systems, linear amplification, and disk drive head positioner control circuits. This transistor provides a high safe operating area for enhanced reliability.

Supports a maximum DC collector current of 16 amperes for high power applications. Features a maximum collector-emitter voltage of 250 volts suitable for various power electronics. Housed in a metal TO-204 package for thermal management and ruggedness.

Minimum DC current gain (hFE) is 5 for effective amplification. Designed to dissipate up to 250 watts supporting high power density. Operating temperature range from -65°C to 200°C ensures wide usability. NPN transistor polarity supports standard circuit designs and configurations.

Transition frequency of up to 4 MHz allows for adequate switching performance. 3-pin through hole mounting type for easy integration into PCBs.

The MJ15024 series by onsemi is known for its reliable performance in industrial and commercial electronics where robust power transistors are essential. This product belongs in the category of Bipolar Power Transistors for semiconductor applications.
