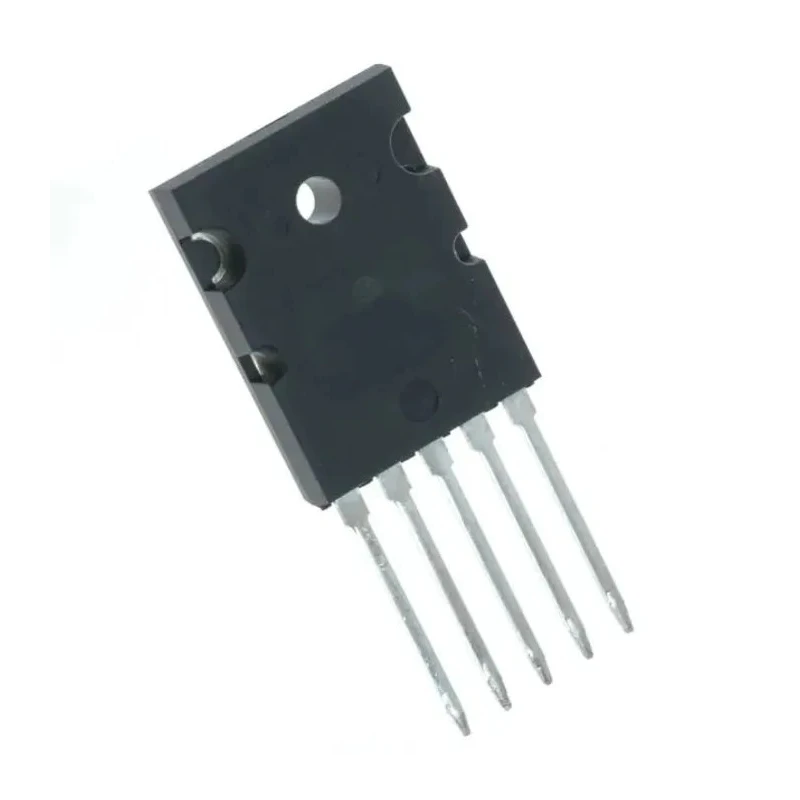

onsemi Bipolar Power Transistor PNP -25 A, -260 V, 200 W, 5-Pin TO-264 NJL1302DG

onsemi NJL1302DG Bipolar Power Transistor PNP is engineered for high-performance audio amplifier applications, featuring a maximum DC collector current of -25 A and a maximum collector-emitter voltage of -260 V. Its robust power dissipation rating of 200 W ensures reliable operation under demanding conditions, making it suitable for professional and high-fidelity consumer audio equipment.

This transistor uses a 5-pin TO-264 package with a through-hole mounting type for easy integration into various PCB designs. It includes thermally matched bias diodes to prevent thermal runaway, providing instant thermal bias tracking and improved sound quality in audio applications.

Designed with absolute thermal integrity, the NJL1302DG offers a high safe operating area, contributing to enhanced durability and operational stability. It operates reliably across a wide temperature range from -65°C to 150°C, making it versatile for industrial and commercial uses.

The transistor features a minimum DC current gain (hFE) of 45 and a maximum transition frequency (ft) of 1 MHz, optimizing performance in audio frequency applications. Its compact physical dimensions (46.79 mm height, 20.02 mm length, and 5.18 mm width) facilitate compact and efficient circuit designs.

Applications include high-fidelity consumer audio devices and professional audio amplifiers, where thermal management and signal quality are critical. Designed to eliminate thermal lag time and bias trimming in audio amplifiers.

Thermally matched bias diodes prevent thermal runaway and enhance reliability. Provides instant thermal bias tracking for superior sound quality. High power dissipation rating of 200 W for demanding applications. Wide operating temperature range from -65°C to 150°C.

Compact 5-pin TO-264 package with through-hole mounting. Pb-Free packaging supports environmental compliance. Ideal for industrial, commercial, and audio amplifier use cases. Explore other semiconductor and transistor products at EnvMart for your electronic component needs.
