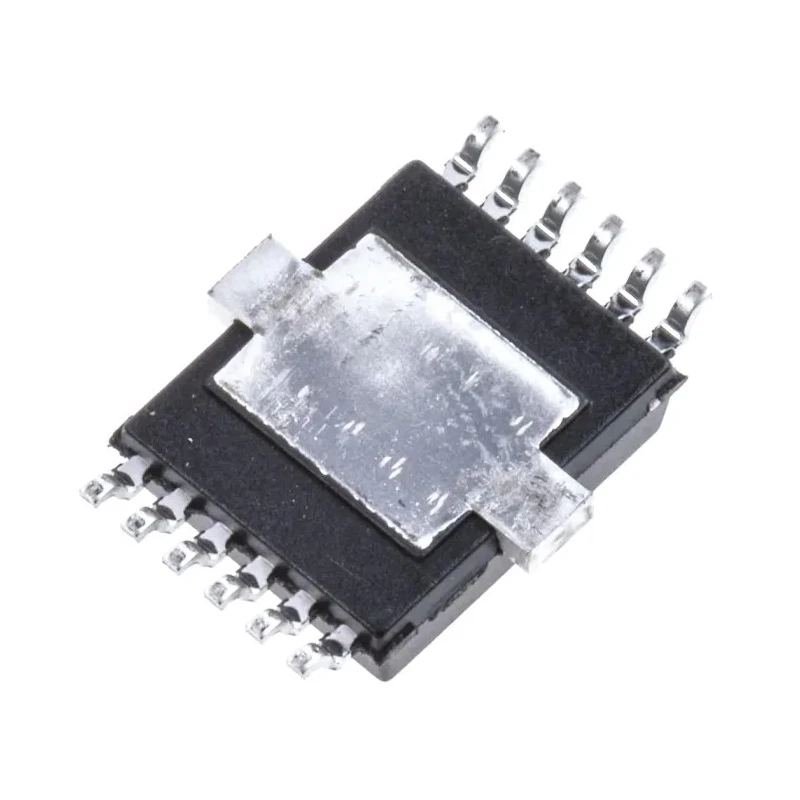

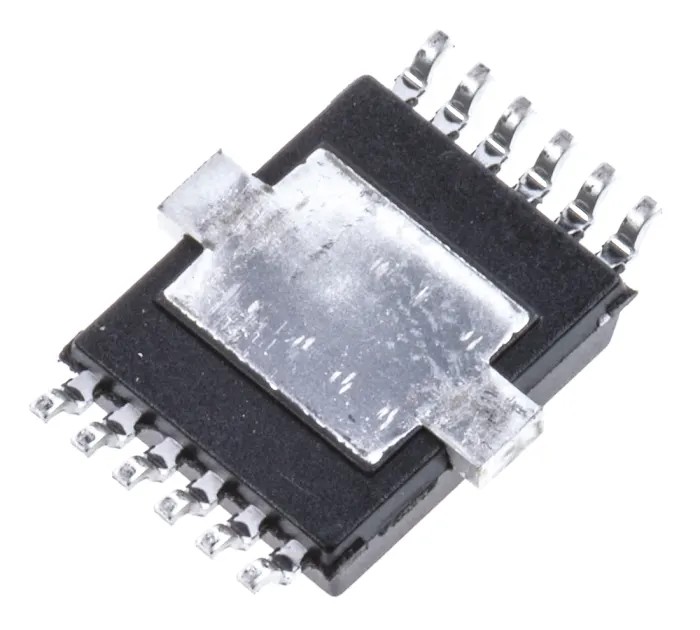

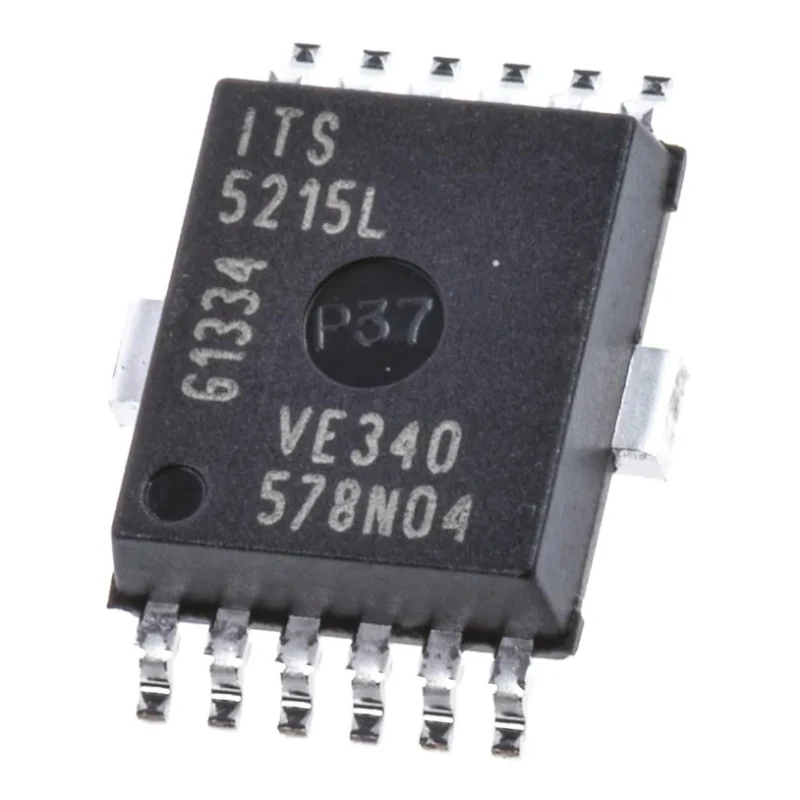

Infineon High Side Power Switch IC, 2 Outputs, 12-Pin SOIC, 5.5-16V, 3.1W Power Rating ITS5215LCUMA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 2.35mm |
| Length | 6.4mm |
| Model | ITS5215LCUMA1 |
| Width | 7.5mm |
| Mount Type | Surface |
| Number of inputs | 2 |
| Series | PROFET |
| Power Rating | 3.1W |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -30°C |
| Operating Current | 9.5A |
| Number of outputs | 2 |
| Pin Count | 12 |
| Maximum Supply Voltage | 16V |
| Minimum Supply Voltage | 5.5V |
| Switch On Resistance RdsOn | 180mΩ |
Key Features
- Device has a low switch on resistance of 180 milliohms for efficient power conduction.
- Operates with a supply voltage range of 5.5 to 16 volts.
- Power rating is 3.1 watts with an operating current of 9.5 amperes.
- Includes protection features such as overload, short-circuit, thermal shutdown, and overvoltage protection.
- Rated for operation between -30 to 85 degrees Celsius ambient temperature.
- Compact dimensions support surface mount PCB designs (2.35mm height, 6.4mm length, 7.5mm width).
- Part of the PROFET series offering reliable smart high-side switching.
Product Description
Infineon ITS5215LCUMA1 is a smart high side power switch IC designed to manage power distribution effectively in electronic systems. It provides 2 output channels with low on-state resistance of 180 milliohms, enabling efficient current flow up to 9.5 amperes. The device operates reliably across supply voltages from 5.5V up to 16V and supports a power dissipation rating of 3.1 watts, suitable for automotive, industrial, and consumer applications.
This 12-pin SOIC packaged switch includes comprehensive protection mechanisms including overload protection, short-circuit prevention, thermal shutdown, and overvoltage protection, ensuring durability and system reliability. Its operating temperature range of -30°C to 85°C makes it ideal for harsh environmental conditions.
The device dimensions (2.35mm height, 6.4mm length, 7.5mm width) support compact PCB layouts typical in power management designs. The ITS5215LCUMA1 belongs to Infineon’s PROFET series which is known for intelligent power switching in industrial and automotive electronics.
Low switch on resistance of 180 milliohms for efficient operation. Dual output channels suitable for multi-channel power switching applications. Wide operating voltage range from 5.5V to 16V. Maximum operating current of 9.5A for high-power loads.
Advanced protection features including overload, short-circuit, thermal shutdown, and overvoltage protection. Compact 12-pin SOIC surface-mount package. Operating temperature range from -30°C to 85°C for wide application scope.
This power switch IC is optimal for integration in electronics manufacturing, automotive modules, industrial machines, and power management systems where space, safety, and performance are critical factors. Explore EnvMart’s Power Switch ICs category for related Infineon products and compatible components to enhance your designs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The power rating of this model is 3.1 watts, allowing it to manage power distribution effectively in electronic systems.
It supports a maximum operating current of 9.5 amperes, making it suitable for high-power loads.
This model operates within a supply voltage range of 5.5 to 16 volts, providing flexibility for various applications.
The device has compact dimensions of 2.35mm in height, 6.4mm in length, and 7.5mm in width, supporting surface mount PCB designs.
It includes advanced protection features such as overload protection, short-circuit prevention, thermal shutdown, and overvoltage protection.
The model operates reliably in an ambient temperature range from -30°C to 85°C, suitable for harsh environmental conditions.
This power switch IC features two output channels, allowing for multi-channel power switching applications.
The switch on resistance is 180 milliohms, which contributes to efficient power conduction.
It is packaged in a 12-pin SOIC format, suitable for surface mounting on PCBs.
This model is part of the PROFET series, which is known for its reliable smart high-side switching capabilities.
The country of origin for this power switch IC is India.
It is suitable for automotive, industrial, and consumer applications where efficient power management is critical.
