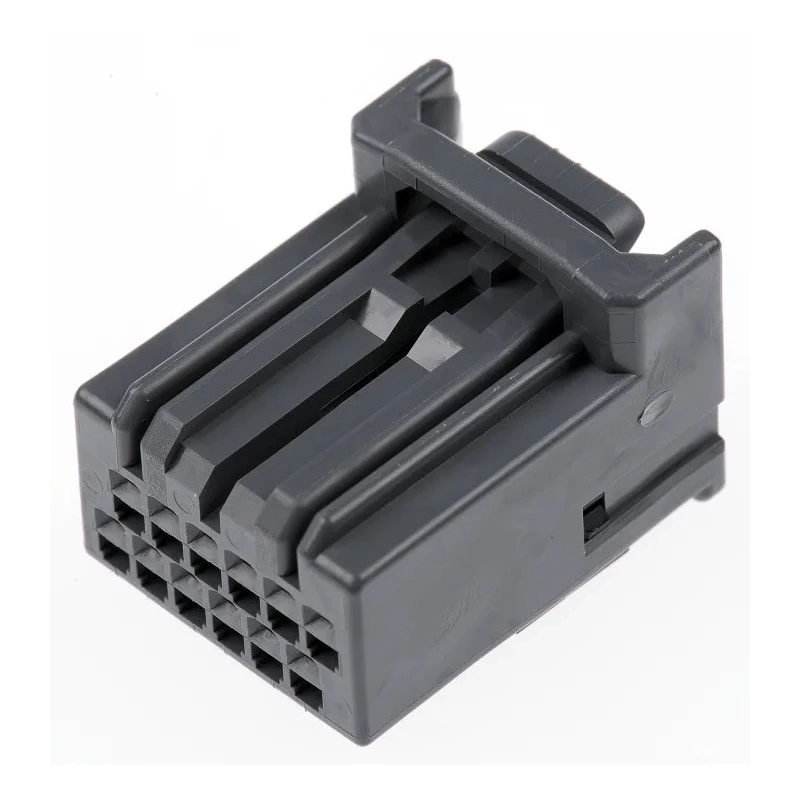

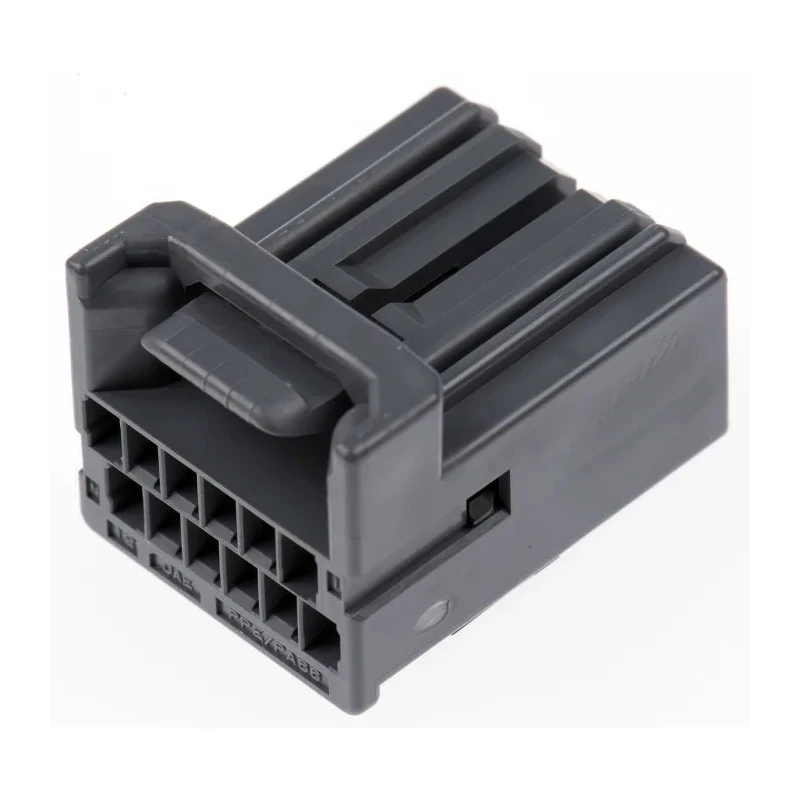

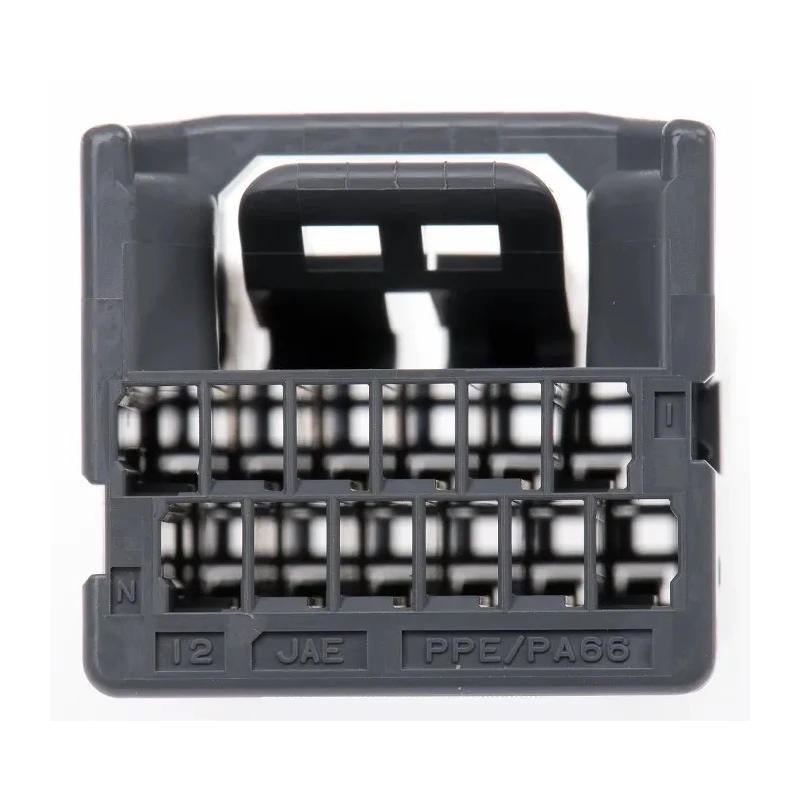

JAE MX34 Automotive Connector Female Grey Cable 12 Way Crimp Termination MX34
Specifications
| Country of Origin | India |
|---|---|
| Brand | JAE |
| Colour | Grey |
| Current | 3A |
| Height | 14mm |
| Model | MX34 |
| Depth | 21.3mm |
| Width | 16.3mm |
| Gender | Female |
| Mount Type | Cable |
| Housing Material | Polyphenylene Ether, Nylon |
| Series | MX34 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 85°C |
| Sub Type | Socket Housing |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Standards/Approvals | RoHS |
| Contact Plating | Tin |
| Number of Contacts | 12 |
Key Features
- The connector features a grey socket housing designed for cable mount.
- It supports up to 12 contact pins arranged in two rows.
- Termination type is crimp, suitable for automotive cable connections.
- Operating temperature range from -40°C up to 85°C ensures reliable performance.
- Made with durable polyphenylene ether and nylon housing materials.
- Contacts are tin plated for corrosion resistance and reliable conductivity.
- The connector complies with RoHS standards for environmental safety.
- Connector designed with a preset double locking mechanism, enhancing durability and secure fit.
Product Description
JAE MX34 automotive connector model MX34 is a female socket housing designed for cable termination using a 12-way crimp configuration. It supports a 3 ampere current rating suitable for automotive electrical applications and ensures dependable connections in harsh automotive environments.
The grey housing is constructed from polyphenylene ether combined with nylon, providing high durability and resistance to mechanical stress. Contacts are plated with tin to offer excellent corrosion resistance and electrical conductivity. This connector complies with RoHS environmental safety standards.
Key features include a robust double locking mechanism which prevents incomplete contact insertion and improves connection reliability. A unique lock spring with a bridging protective design minimizes damage from external forces.
The connector supports two rows of contacts arranged compactly for efficient space utilization. Its operating temperature ranges between -40°C to 85°C, allowing secure operation under various thermal conditions common in automotive environments.
The connector features a grey socket housing designed for cable mount. It supports up to 12 contact pins arranged in two rows. Termination type is crimp, suitable for automotive cable connections. Operating temperature range from -40°C up to 85°C ensures reliable performance.
Made with durable polyphenylene ether and nylon housing materials. Contacts are tin plated for corrosion resistance and reliable conductivity. The connector complies with RoHS standards for environmental safety. Connector designed with a preset double locking mechanism, enhancing durability and secure fit.
Lock spring includes a protective bridge against external mechanical loads. Dimensions are compact with width 16.3mm, height 14mm, and depth 21.3mm for space efficient installation.
This MX34 series connector is ideal for automotive, industrial, and electronic applications requiring reliable and compact crimp terminations. It pairs well with compatible MX34 headers and other automotive electrical components.
Explore EnvMart's wide range of Automotive Connectors for optimized electrical system solutions suitable for manufacturing, vehicle maintenance, and industrial assembly tasks.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 3 amperes, suitable for automotive electrical applications.
The operating temperature range is from -40°C to 85°C, allowing it to perform reliably in various thermal conditions common in automotive environments.
It is made with polyphenylene ether and nylon for the housing, while the contacts are tin plated for corrosion resistance and reliable conductivity.
This connector supports up to 12 contact pins arranged in two rows, facilitating compact and efficient connections.
The termination type for this model is crimp, which is suitable for automotive cable connections.
The dimensions of this unit are width 16.3mm, height 14mm, and depth 21.3mm, making it compact for space-efficient installation.
Yes, it complies with RoHS standards for environmental safety, ensuring it meets specific safety and environmental requirements.
This connector is a female socket housing designed for cable mount applications.
It is designed with a preset double locking mechanism that enhances durability and ensures a secure fit, preventing incomplete contact insertion.
The connector is manufactured in India.
This model is ideal for automotive, industrial, and electronic applications that require reliable and compact crimp terminations.
In addition to the double locking mechanism, it includes a unique lock spring with a bridging protective design to minimize damage from external forces.
