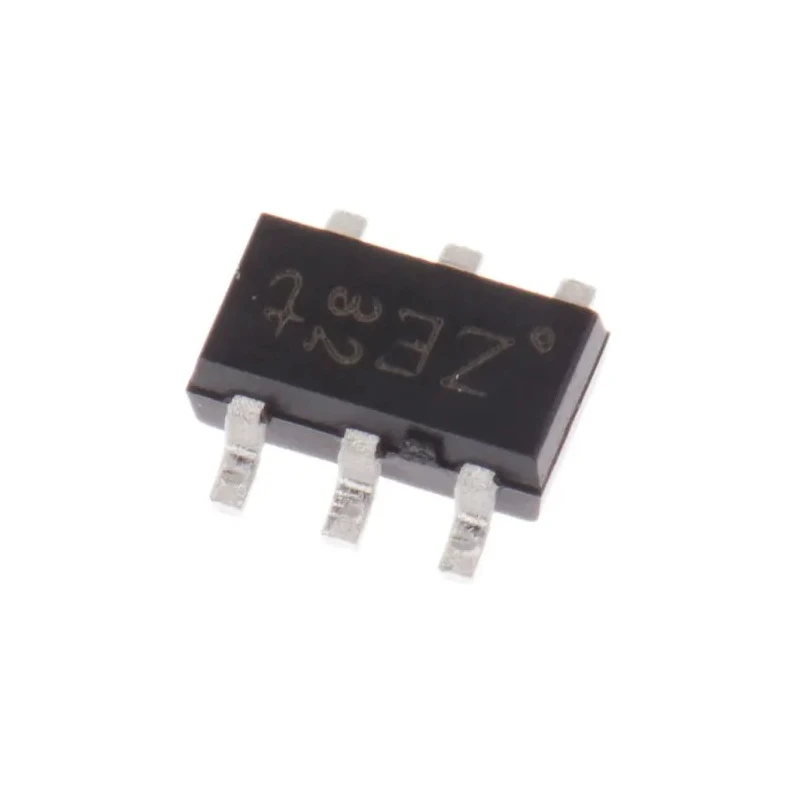

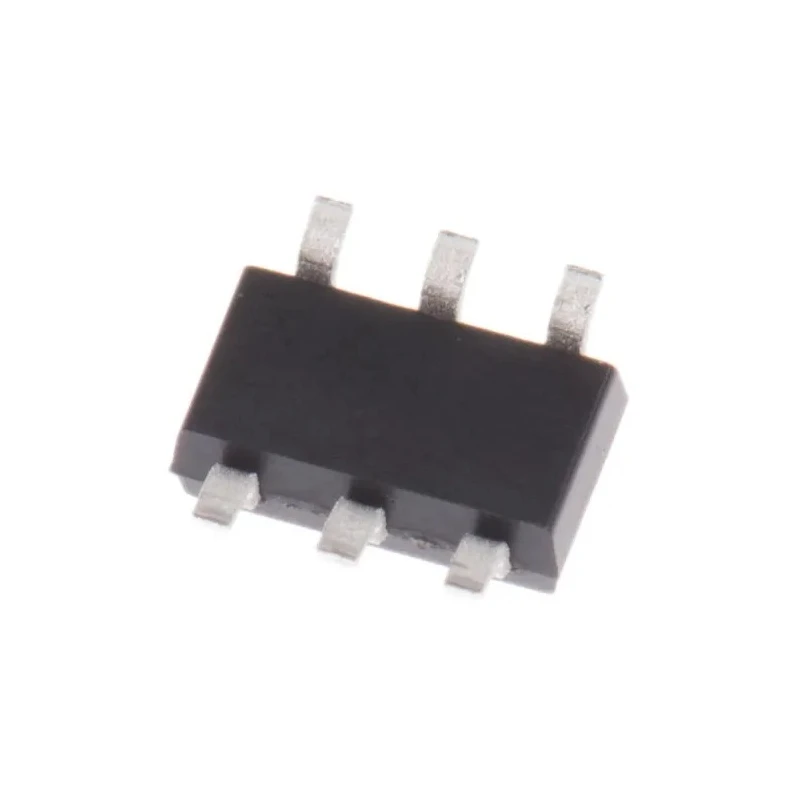

Nexperia Uni-Directional 4-Element ESD Protection Array, 100 W Peak Pulse Power, 6-Pin SOT-457 IP4234CZ6,125

Nexperia IP4234CZ6,125 is a high-performance uni-directional ESD Protection Array designed for safeguarding sensitive electronics against transient voltage surges, especially in industrial, commercial, and consumer electronics applications.

This 4-element transient voltage suppressor diode array features a complex diode configuration delivering 100 W peak pulse power dissipation. Compact surface-mount SOT-457 package with dimensions 3.1 mm by 1.7 mm by 1 mm enables efficient board space utilization.

The device operates reliably in a wide temperature range from -40°C to 85°C, with a minimum breakdown voltage of 6 V and ultra-low maximum reverse leakage current of 100 nA, minimizing power loss. It supports robust ESD protection tailored for USB 2.0, Ethernet, and DVI interfaces using ultra-low capacitance rail-to-rail diodes combined with a zener diode clamp.

This array is ideal for integration into industrial automation systems, telecom infrastructure, and electronic consumer products requiring secured input/output ports. Manufactured in Malaysia, it meets the strict quality requirements of transient voltage suppression applications.

Complex 4-element diode array configuration for ESD and overvoltage protection. 100 W peak pulse power dissipation suitable for high transient energy conditions. Compact, surface-mount 6-pin SOT-457 package for efficient PCB layout.

Wide operating temperature range from -40°C to 85°C ensures reliability. Minimum breakdown voltage of 6 V supports USB and data line protection. Ultra-low maximum reverse leakage current of 100 nA reduces energy loss. Designed for transient voltage protection in USB 2.0, Ethernet, and DVI ports.
