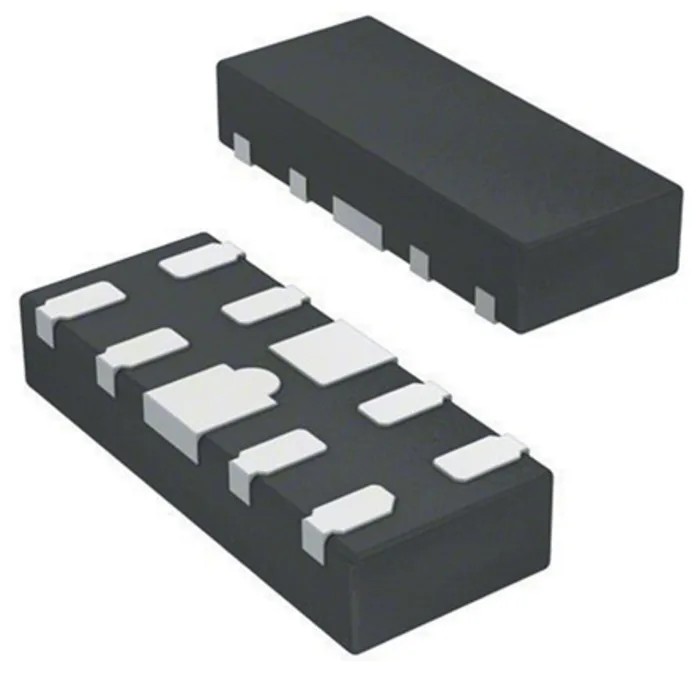

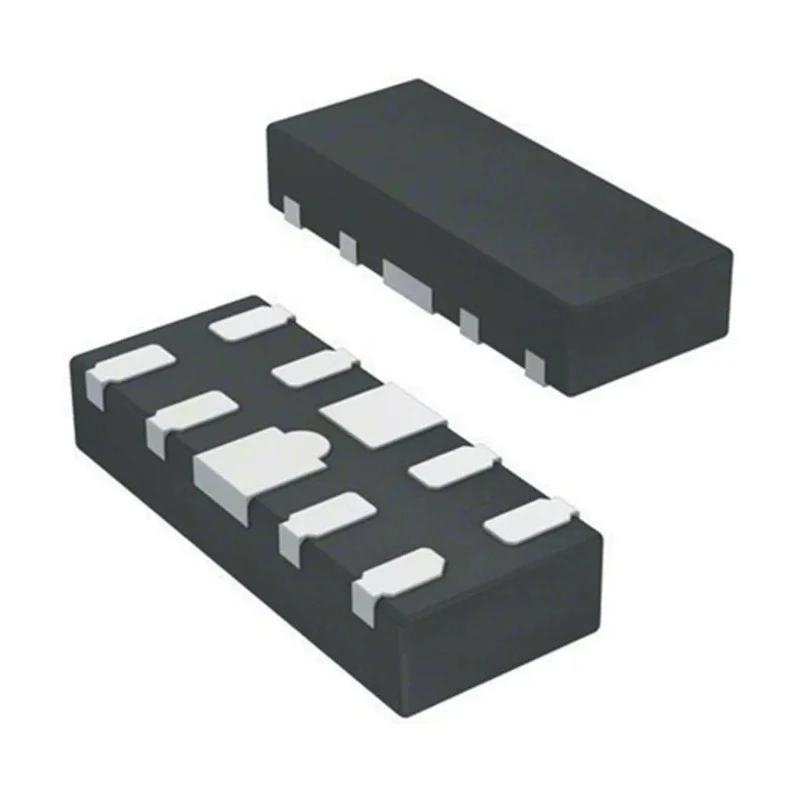

Texas Instruments 6-Element Uni-Directional ESD Protection Array 10-Pin UQFN TPD6E001RSER

Texas Instruments TPD6E001RSER is a 6-element uni-directional Electrostatic Discharge (ESD) Protection Array designed for safeguarding sensitive electronic components and circuits from high energy electrostatic events. Housed in a compact 10-pin UQFN surface mount package, it offers superior protection in a small footprint with dimensions of 2.05 mm length, 1.55 mm width, and 0.55 mm height. The device operates efficiently across a wide temperature range from -40°C to 85°C, making it suitable for various environmental conditions encountered in industrial and automotive applications.

This ESD protection array features a minimum breakdown voltage of 11V and a maximum clamping voltage of 100V, ensuring rapid response to voltage surges and protecting downstream components. Its low maximum reverse leakage current of 1 nA minimizes power loss, essential for low power circuits. The array includes six diode elements configured in a complex, uni-directional layout optimized for directional protection, specifically useful in data and power lines.

Designed for surface mount technology, the TPD6E001RSER provides easy integration onto printed circuit boards. It is ideal for protecting Super-Speed USB 3.0 interfaces and other fast data transmission paths by combining high ESD and surge immunity with ultra-low capacitance characteristics. This helps maintain signal integrity and operational reliability in high-speed electronics.

Key applications include industrial machinery controls, automotive electronics, communication equipment, and consumer electronic devices that require robust and reliable protection against electrostatic discharge and transient voltage suppressions.

Uni-directional ESD Protection Array with 6 elements per chip. Low clamping voltage of 100V protects against voltage spikes. Compact 10-pin UQFN surface mount package for space-saving design. Operating temperature range from -40°C to 85°C ensures wide environmental adaptability.

Low leakage current of 1 nA enhances energy efficiency in circuits.

For engineers and designers, the TPD6E001RSER represents a reliable solution to enhance circuit protection with minimal impact on size and signal quality. Browse our wide selection of semiconductor protection components to find suitable solutions for your industrial and electronic design projects.
