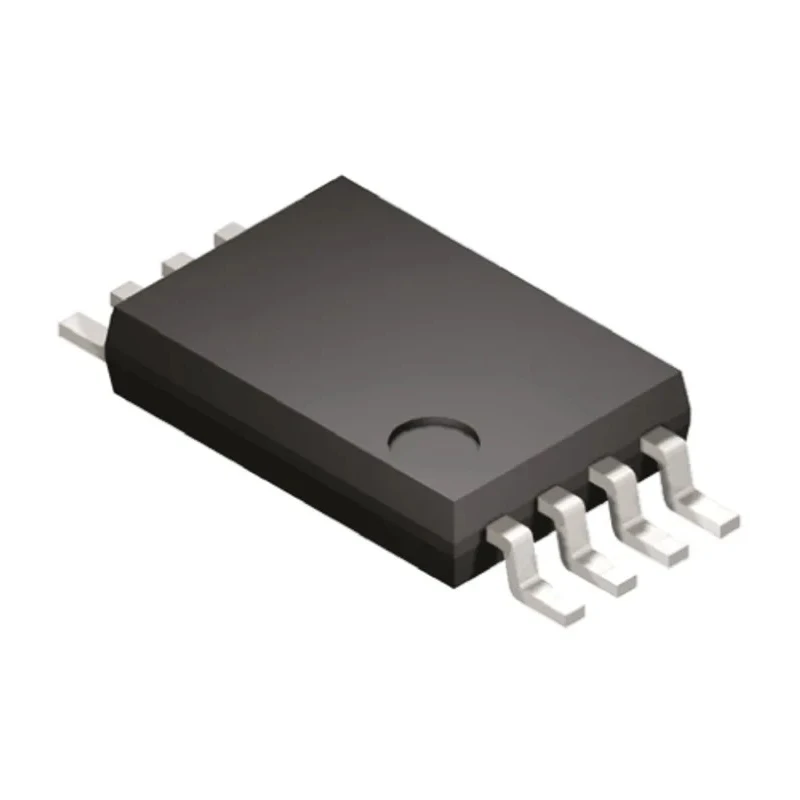

onsemi Logic Level Translator 2 Elements Uni-Directional 8-Pin TSSOP MC100EPT20DTG

onsemi MC100EPT20DTG is a high-performance Logic Level Translator IC designed for uni-directional translation between LVTTL/LVCMOS inputs and LVPECL outputs. It features two translator elements integrated into a small 8-pin TSSOP surface mount package, enabling efficient signal interfacing and level shifting in modern electronic circuits.

This device operates over a supply voltage range of 3 V to 3.6 V and offers a maximum propagation delay of 2 nanoseconds, ensuring fast and reliable communication between systems with differing logic families. Its output supports PECL levels with maximum output drive currents of 50 mA at low level and 100 mA at high level, suitable for driving a variety of downstream components.

The compact dimensions of 1.1 mm height and 3.1 mm length make it ideal for space-constrained PCB layouts. This translator IC is robust over a wide temperature range from -40°C to 85°C, meeting common industrial and commercial environmental requirements.

Typical applications include interfacing between logic devices in industrial control systems, telecommunications equipment, and semiconductor test setups where reliable and fast logic level conversion is critical.

Uni-directional LVTTL/LVCMOS to LVPECL logic translation. Dual translator elements per chip. Surface mount 8-pin TSSOP package. 3 V to 3.6 V supply voltage operation. Propagation delay of 2 ns at specified load. Output currents of 50 mA (low) and 100 mA (high).

Operating temperature range of -40°C to 85°C. Compact package dimensions of 1.1 mm height and 3.1 mm length. Explore onsemi products and other semiconductor components in EnvMart’s electronic components section for diverse industrial, laboratory, and manufacturing applications.
