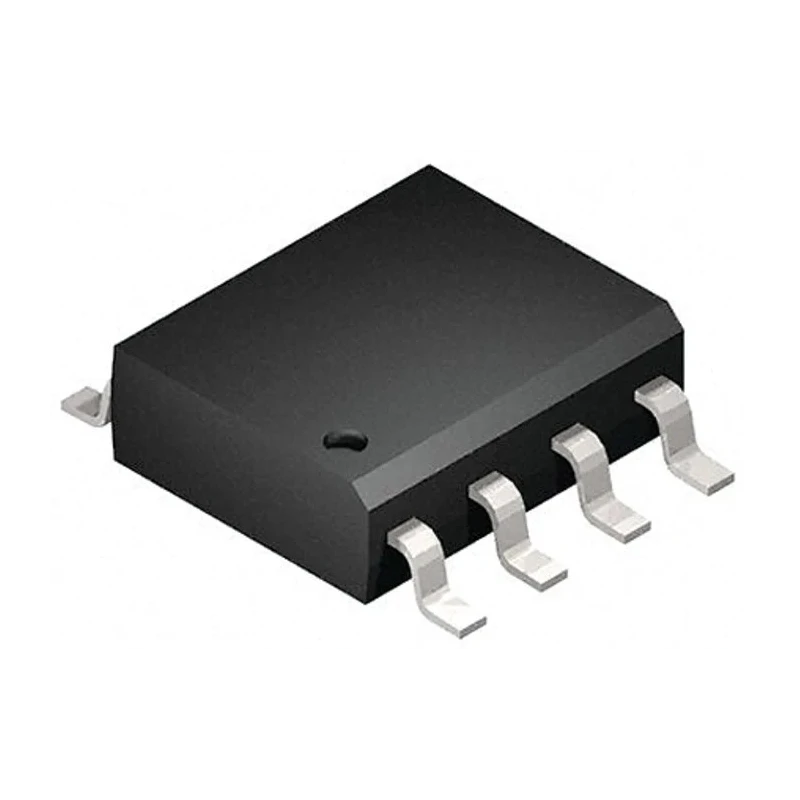

onsemi Uni-Directional ECL Logic Level Translator 2 LVPECL/LVDS/CML to LVTTL/LVCMOS 8-Pin SOIC MC100EPT21DG

onsemi MC100EPT21DG is a Uni-Directional Electronic Coupled Logic (ECL) Logic Level Translator designed to convert LVPECL, LVDS, and CML logic signals to LVTTL and LVCMOS outputs. Packaged in an 8-pin SOIC surface mount format, this device includes two translator elements.

Featuring a maximum propagation delay time of just 2 nanoseconds at specified load capacitances, the MC100EPT21DG facilitates high-speed communication between differing logic families, essential for modern electronic systems.

The device operates within a supply voltage range of 3 to 3.6 volts and allows maximum low-level output current of 24mA and maximum high-level output current of -3mA, supporting reliable signal integrity.

Its operational temperature extends from -40°C to 85°C, making it suitable for a wide range of industrial and commercial applications, including telecommunications, data acquisition, and digital signal processing.

This translator IC is ideal for interfacing ECL, PECL, CML, and LVDS signals with TTL or CMOS logic levels, enabling seamless integration in complex board designs. Uni-directional operation for interfacing multiple logic families.

Fast propagation delay of 2 ns for efficient timing. Compact 8-pin SOIC package for space-saving assembly. Wide supply voltage tolerance from 3 to 3.6 volts. Robust operating temperature range from -40°C to 85°C. 2 elements per chip to optimize circuit layouts.

No standard or automotive approval certifications included. It finds applications in industrial electronics, telecommunications equipment, data converters, and other systems requiring mixed-signal interfacing. Explore more on semiconductor translator ICs and related components on EnvMart to find solutions that match your project needs.
