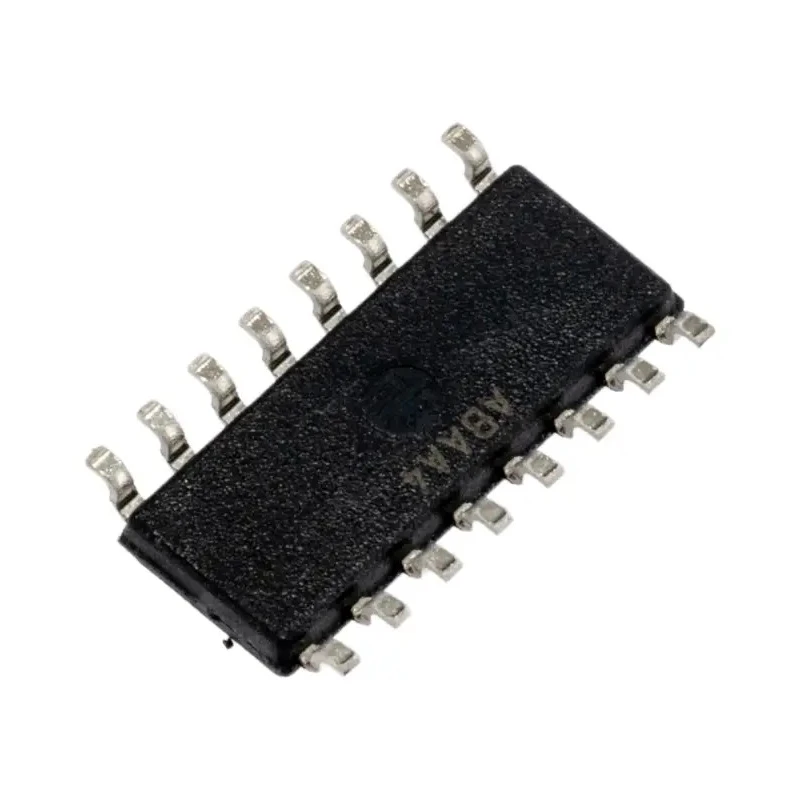

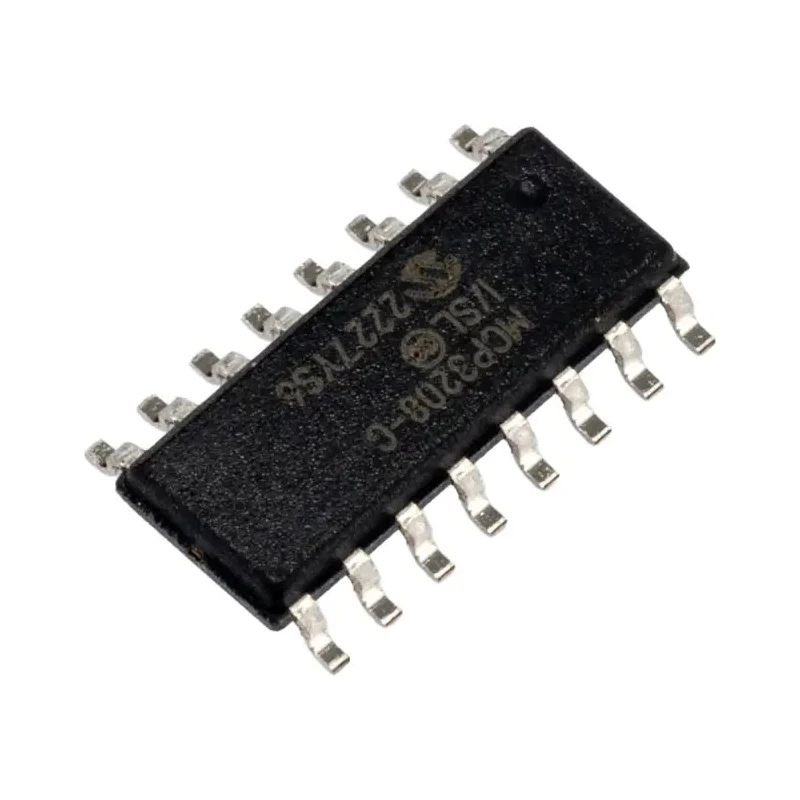

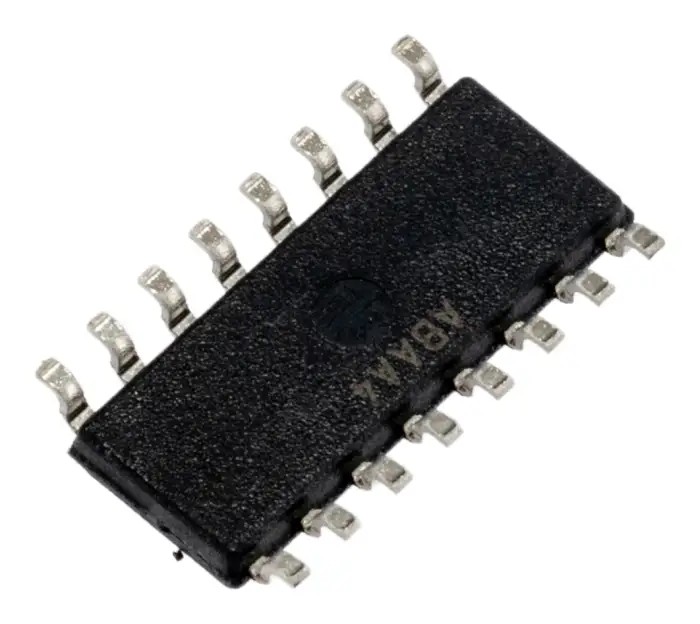

Microchip 8-Channel 12-bit SAR Analogue-to-Digital Converter 100ksps SPI Interface 16-Pin SOIC MCP3208-CI/SL
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 12 bit |
| Brand | Microchip |
| Height | 1.75mm |
| Length | 10.2mm |
| Model | MCP3208-CI/SL |
| Mount Type | Surface |
| Sampling rate | 100ksps |
| Series | MCP3208 |
| Input Type | Voltage |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Interface Type | SPI |
| Architecture | SAR |
| Pin Count | 16 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 5V |
| Number of ADCs | 8 |
| Microchip 8 12 bit- ADC 100 ksps, 16-Pin SOICBrand | Microchip |
Key Features
- Utilizes SAR architecture for precise 12-bit conversion accuracy.
- Supports 8 independent ADC channels for multi-signal input applications.
- Designed for surface mount with 16-pin SOIC package for compact PCB designs.
- Operates over a temperature range of -40°C to 125°C.
- Compatible with 5 V to 5.5 V supply voltage ensuring stable operation.
- Features SPI serial interface for efficient digital communication.
- Complies with automotive standard AEC-Q100 for robust automotive usage.
- Compact dimensions with a height of 1.75 mm and length of 10.2 mm.
Product Description
Microchip MCP3208-CI/SL is an 8-channel, 12-bit successive approximation register (SAR) analogue-to-digital converter (ADC) optimized for high-precision voltage measurements. It supports a maximum sampling rate of 100 kilosamples per second and utilizes SPI interface for fast and reliable digital data transfer.
Housed in a 16-pin SOIC surface mount package, this ADC offers compact mounting on printed circuit boards suitable for automotive and industrial applications. Operating over a wide temperature range from -40°C to 125°C, the device meets the automotive AEC-Q100 standard, providing durability and reliability in harsh environments.
The converter supports input voltages compatible with supply voltage ranging from 5.0 V up to 5.5 V, ensuring stable operation within typical industrial power rails.
Key features include multi-channel ADC support with 8 independent inputs, making it ideal for sensor interfacing, data acquisition systems, and embedded electronics where multiple voltage sources need accurate measurement.
This ADC's robust design allows use in automotive, industrial automation, instrumentation, and laboratory measurement systems, delivering precise and fast analogue-to-digital conversion.
High accuracy 12-bit resolution with SAR architecture. Eight integrated analogue inputs for flexible signal acquisition. SPI interface compatible with standard communication protocols. Automotive qualified for high-reliability applications.
Compact 16-pin SOIC package for space-saving designs. Wide temperature range operation from -40°C to 125°C. Low power consumption suitable for battery-operated devices. Designed for industrial and automotive environments.
Set contains 1 Microchip MCP3208-CI/SL 8-Channel ADC in a 16-pin SOIC package. Explore more semiconductor and Analogue to Digital Converters in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a resolution of 12 bits, allowing for precise voltage measurements.
The MCP3208-CI/SL supports a maximum sampling rate of 100 kilosamples per second (100ksps).
It supports 8 independent ADC channels for multi-signal input applications.
The device operates with a supply voltage ranging from 5.0 V to 5.5 V.
This model utilizes an SPI (Serial Peripheral Interface) for efficient digital communication.
The dimensions of this unit are 10.2 mm in length and 1.75 mm in height.
It operates over a wide temperature range from -40°C to 125°C.
This model complies with the automotive standard AEC-Q100, ensuring reliability in automotive applications.
It comes in a 16-pin SOIC (Small Outline Integrated Circuit) package designed for surface mounting.
This analogue-to-digital converter supports voltage input types.
It utilizes a Successive Approximation Register (SAR) architecture for its conversion process.
The country of origin for this model is India.
