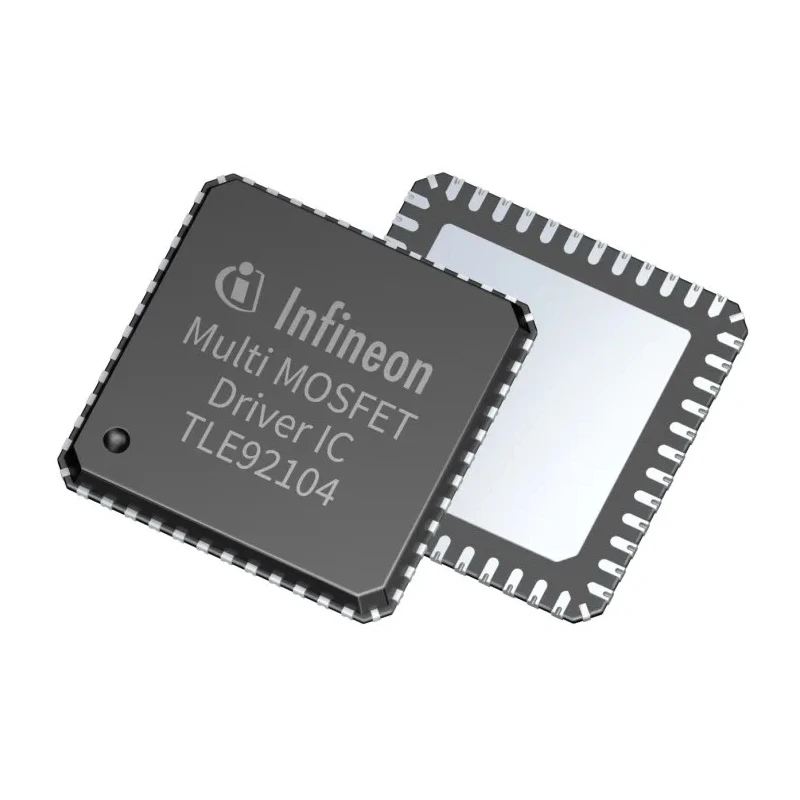

Infineon MOSFET Gate Driver, 4 Outputs, 48-Pin, 40V, Surface Mount, PG-VQFN-48 TLE92104232QXXUMA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 0.9mm |
| Length | 7mm |
| Model | TLE92104232QXXUMA1 |
| Width | 7mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | PG-VQFN-48 |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 4 |
| Rise Time | 50ns |
| Pin Count | 48 |
| Automotive Standard | AEC-Q100 |
| Minimum Supply Voltage | 40V |
| Number of Drivers | 4 |
| Fall Time | 50ns |
| Driver Type | MOSFET |
Key Features
- Designed for surface mount applications in PG-VQFN-48 package.
- Supports operation over a wide temperature range from -40°C to 150°C.
- Fast switching characteristics with 50ns rise and fall time.
- Qualified to automotive standard AEC-Q100 for reliability and performance.
- Suitable for multi-channel motor control, power distribution, and sensor interface applications.
- Compact 7mm x 7mm footprint with low profile height of 0.9mm.
- Provides four independent driver channels and four outputs for efficient switching.
- Ideal for integration in environments requiring high-temperature stability.
Product Description
Infineon TLE92104232QXXUMA1 is a high-performance MOSFET Gate Driver IC featuring four outputs, designed for efficient power management in automotive and industrial systems. With a 48-pin PG-VQFN-48 package and surface mount form factor, it ensures compact board integration, supporting up to 40V supply voltage for reliable switching and control in multi-channel voltage-controlled systems.
Four independent driver channels facilitate advanced switching tasks in motor control and battery management modules. Fast switching speeds are achieved with 50ns rise and fall times, optimizing signal transitions and system responsiveness.
The IC is rated for operation in extreme conditions, suitable for environments with operating temperatures ranging from -40°C up to 150°C. Automotive-grade qualification to AEC-Q100 ensures robustness and compatibility for demanding vehicle applications.
Its low profile height (0.9mm) and compact 7mm x 7mm footprint reduce space requirements on PCBs.
Used in multi-channel motor control modules, automotive power distribution units, sensor interfaces, and compact driver boards, the TLE92104232QXXUMA1 is engineered for reliability in high-temperature and high-voltage scenarios. It provides system designers with a versatile solution for efficient switching and control of voltage-based loads.
The surface mount package supports automated assembly processes, improving production efficiency and reliability in large-scale deployments. Each channel can independently manage power distribution tasks, ensuring flexibility for modular and scalable design architectures.
As part of the Infineon Motix series, this gate driver excels in industrial and automotive environments, especially where compactness and high performance are critical. Applications range from power distribution boards and battery management systems to motor drivers and high-temperature sensor interfaces.
Explore the entire Infineon gate driver range for innovative solutions in automotive and industrial power management, exclusively at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 150°C.
This gate driver provides four independent outputs.
The rise and fall time for this unit is 50ns.
It comes in a PG-VQFN-48 package type.
The minimum supply voltage for this gate driver is 40V.
The dimensions are 7mm x 7mm with a height of 0.9mm.
Yes, it is qualified to the automotive standard AEC-Q100.
The minimum operating temperature is -40°C.
This unit supports surface mount installation.
It is suitable for multi-channel motor control, power distribution, and sensor interface applications.
It features four independent driver channels.
This model is a MOSFET driver type.
