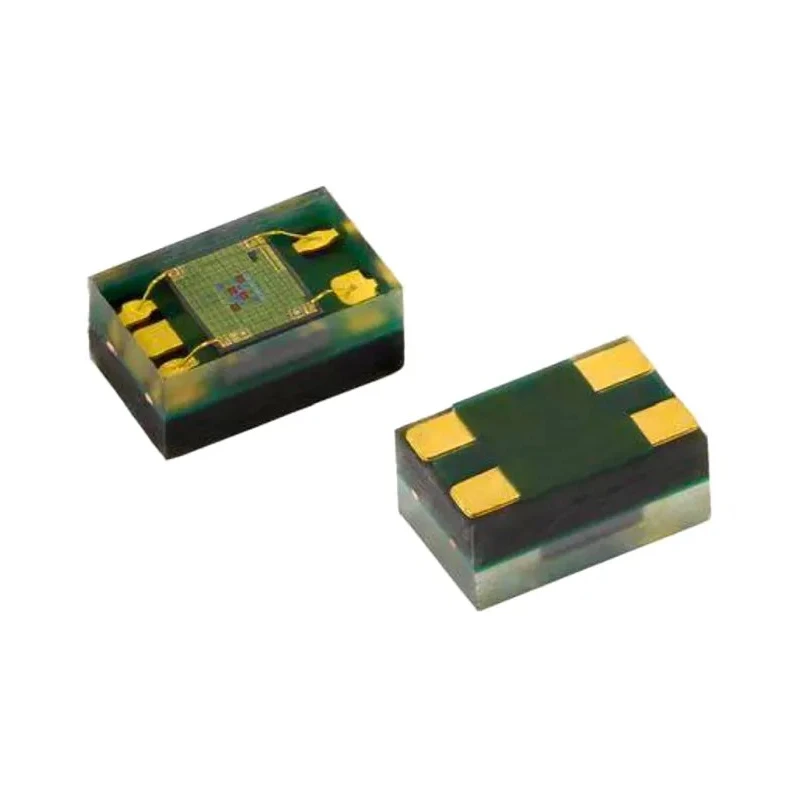

Vishay Ambient Light Spectral Sensor 650nm Peak Wavelength 4-Pin OPLGA Surface Mount VEML6040A3OG

Vishay VEML6040A3OG Ambient Light Spectral Sensor provides advanced spectral sensitivity at peak wavelength of 650 nm, offering light detection closely matching the real human eye’s response for enhanced ambient light sensing applications. Packaged in a compact 4-pin OPLGA surface mount layout, this sensor integrates photodiodes, amplifiers, and mixed-signal circuits using CMOS technology to deliver precise RGBW color measurements with 16-bit digital resolution on each channel.

The sensor operates efficiently within a voltage range of 2.5 V to 3.6 V and maintains very low power consumption with a typical supply current of 200μA, making it ideal for battery-operated handheld and consumer devices. Temperature compensation circuitry ensures stable output over a wide temperature range from -40 °C to 85 °C, suitable for industrial and mechanical environments requiring consistent light sensing performance.

Its Filtron™ technology enables close spectral matching to human eye sensitivity and supports fluorescence light flicker immunity, enhancing performance in diverse lighting conditions. The device communicates via an I2C (SMBus compatible) digital interface that allows simple command control for programming and data retrieval.

The compact dimensions of 2.0 x 1.25 x 1.0 mm make the VEML6040A3OG sensor ideal for space-constrained applications. It provides selectable detection lux ranges (515.4 to 16,496 lux) to optimize sensitivity for different ambient light levels. The lead (Pb)-free surface mount package complies with J-STD-020 standards and has a 168-hour floor life rated MSL 3.

Provides spectral sensitivity closely matching real human eye responses. Integrated RGBW color sensor with 16-bit resolution per channel for accurate color detection. Operates at voltage range from 2.5 V to 3.6 V with a supply current of 200μA.

Includes temperature compensation to maintain stable output between -40 °C and 85 °C. Equipped with I2C (SMBus compatible) interface for easy command operation. Compact surface mount package dimensions of 2.0 mm x 1.25 mm x 1.0 mm.

Supports selectable detection ranges up to 16,496 lux and fluorenscent light flicker immunity. Suitable for handheld devices, notebooks, consumer devices, and industrial applications.

This sensor is widely used in handheld devices, notebooks, industrial and mechanical applications requiring precise color measurement and ambient light compensation. Its compact design and advanced features make it suitable for integration in diverse electronic products.
