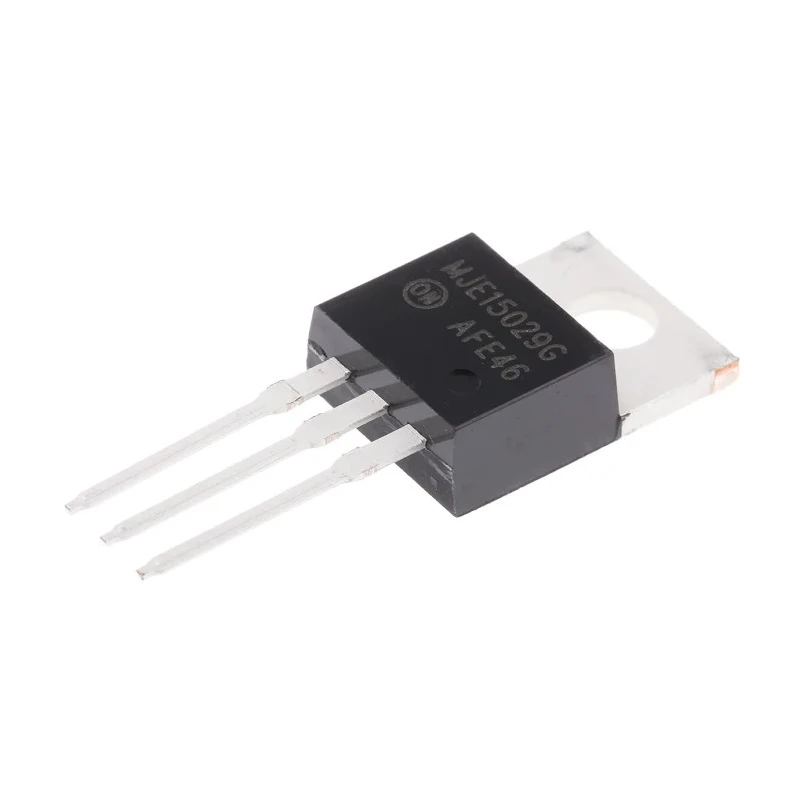

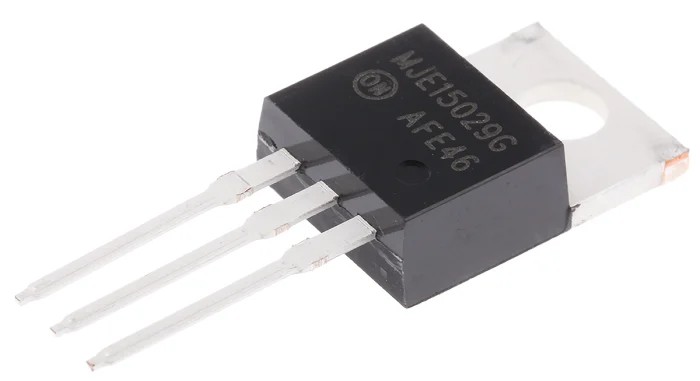

onsemi PNP Power Transistor TO-220 Package 8 A Collector Current 120 V MJE15029G

onsemi MJE15029G is a high-performance PNP power transistor housed in a TO-220 package designed for through-hole mounting. It can handle a maximum DC collector current of 8 amperes and withstands a maximum collector emitter voltage of 120 volts. The device supports power dissipation up to 50 watts, making it well suited for power management and amplification tasks in various industrial and electronic circuits.

This transistor features a minimum DC current gain (hFE) of 20 and a maximum transition frequency of 30 MHz, enabling reliable switching and amplification in both low and moderate frequency applications. It has a single transistor configuration with PNP polarity.

Operating temperatures range from -65°C to 150°C, allowing usage in demanding environmental conditions commonly found in industrial, manufacturing, and HVAC control systems. The device has three pins and compact physical dimensions approximately 30.02 mm high, 10.53 mm long, and 4.83 mm wide, facilitating versatile mounting options.

Typical applications include power electronic circuits, switching regulators, amplifiers, and other electronic component designs requiring efficient power transistors with reliable performance.

Supports a maximum DC collector current of 8 amperes. Maximum collector emitter voltage rating of 120 volts. Power dissipation capability of 50 watts. Designed with a PNP polarity and single transistor configuration. Package type is TO-220 suitable for through-hole mounting.

Minimum DC current gain (hFE) of 20 for effective amplification. Maximum transition frequency of 30 MHz. Operating temperature ranges from -65°C to 150°C. Pin count of 3 with compact dimensions. Ideal for industrial, power electronics, and HVAC uses.
