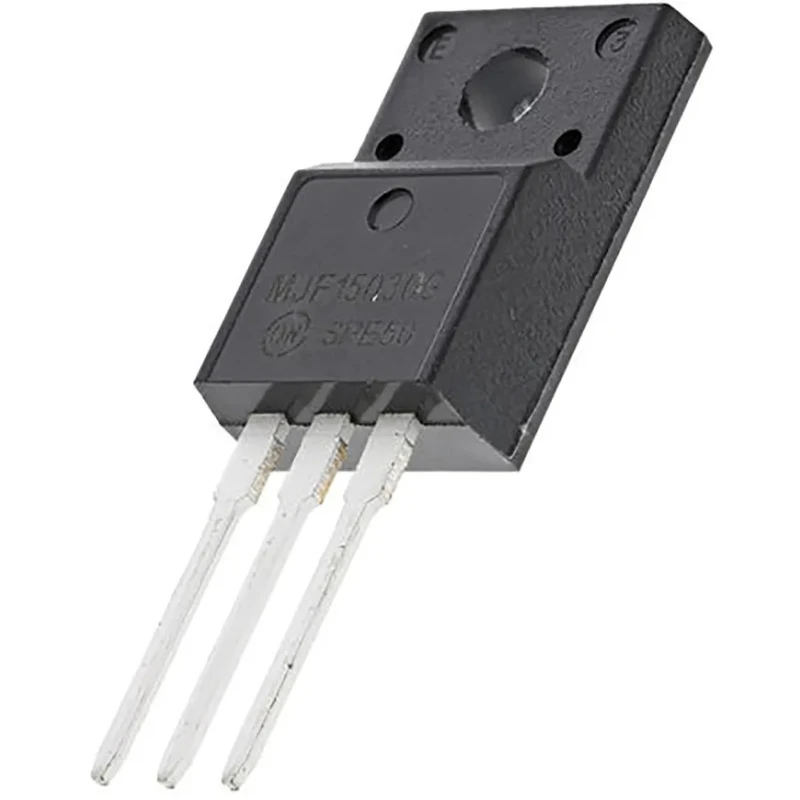

onsemi NPN Power Transistor 8A 150V 3-Pin TO-220 Through Hole MJF15030G

onsemi MJF15030G is a robust NPN power transistor designed for electronic and industrial applications requiring reliable switching and amplification. It is housed in a 3-Pin TO-220 package for through-hole mounting, allowing for easy integration onto printed circuit boards. Operable over a broad temperature range of -65°C to 150°C, this transistor delivers consistent performance in demanding environments.

The device supports a maximum DC collector current of 8 amperes and a collector-emitter voltage up to 150 volts, making it suitable for a wide range of high voltage power control circuits. Its minimum DC current gain of 20 provides efficient transistor switching and amplification capability. The power dissipation limit of 2 watts is ideal for moderate power applications without excessive heat generation.

With a maximum transition frequency of 30 MHz, the MJF15030G supports switching applications in electronic devices where moderate frequency operation is required. Its compact dimensions make it easy to mount and incorporate into various industrial and commercial electronic equipment.

This transistor is particularly useful in industrial automation, power supplies, motor control, and electronic switching applications. Its reliable construction and standard package type make it a preferred choice for designers seeking durable bipolar junction transistors (BJT) in their power circuits.

Key features include:. 8A maximum collector current. 150V maximum collector-emitter voltage. TO-220 package with 3 pins. Through-hole mount type. Single NPN transistor configuration. Operating temperature range -65°C to 150°C.

Maximum power dissipation of 2W. Maximum transition frequency 30 MHz. Compact size: 29.85mm height, 10.63mm length, 4.9mm width. Set contains 1 Pc onsemi MJF15030G transistor. Explore more Power Transistors within the Electronics & Electrical category at EnvMart for all your industrial and electronic component needs.
