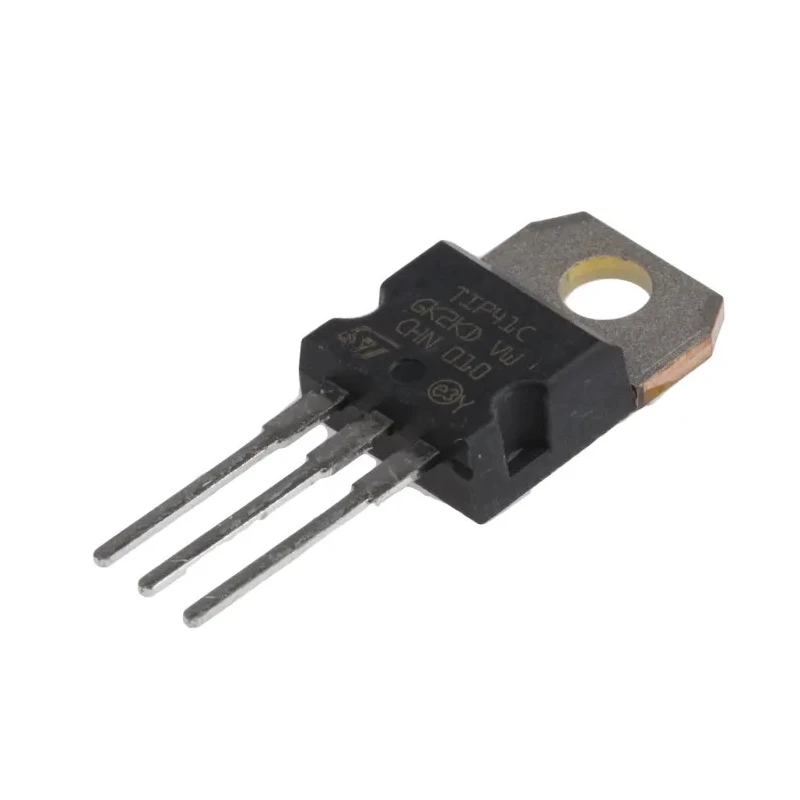

STMicroelectronics NPN Power Transistor 6A 100V 3-Pin TO-220 TIP41C

STMicroelectronics TIP41C is a robust NPN power transistor designed for high-current and high-voltage applications. Packaged in a 3-pin TO-220 through-hole form factor, it supports a maximum collector current of 6A and a collector-emitter voltage of 100V.

This transistor provides a maximum power dissipation of 65W enabling efficient heat handling in power conversion and amplification circuits. The device has a minimum DC current gain (hFE) of 10, making it reliable for standard bipolar transistor applications.

Operating safely over a temperature range from 0°C up to 150°C, the TIP41C is suitable for industrial electronics, power supplies, audio amplification, motor control, and other demanding electronic circuits requiring NPN power devices.

The compact physical dimensions (28.9mm in height, 10.4mm in length, and 4.6mm in width) allow for easy mounting and integration within electronic assemblies using through-hole PCB techniques.

Key features include maximum collector-base voltage of 100V and emitter-base voltage of 5V, ensuring high reliability and performance in switching and linear applications. The transistor is part of the TIP41 series which has been widely adopted for general-purpose power amplification.

This TO-220 transistor features a 3-pin configuration optimized for through-hole mounting. It maintains stable performance up to 150°C operating temperature for industrial use. The device supports 6A collector current and 65W power dissipation for heavy load conditions.

Compact package and well-defined electrical parameters ensure easy design integration. It is ideal for use in industrial, consumer electronics, HVAC, and automotive applications needing robust transistors. Explore more Power Transistors and semiconductor components by STMicroelectronics on EnvMart for industrial and commercial electronics solutions.
