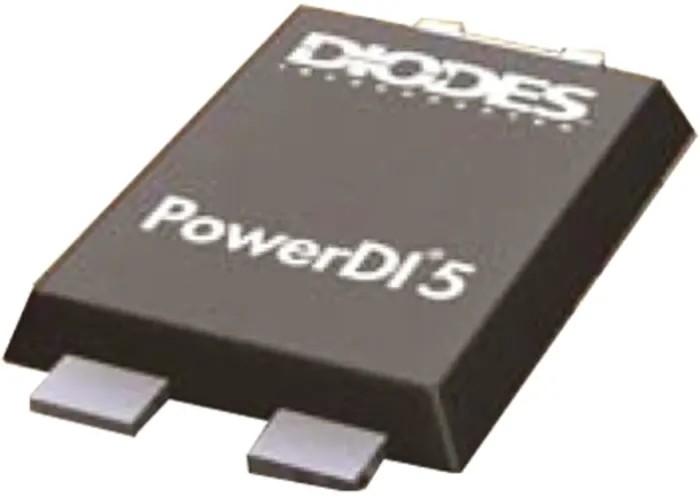

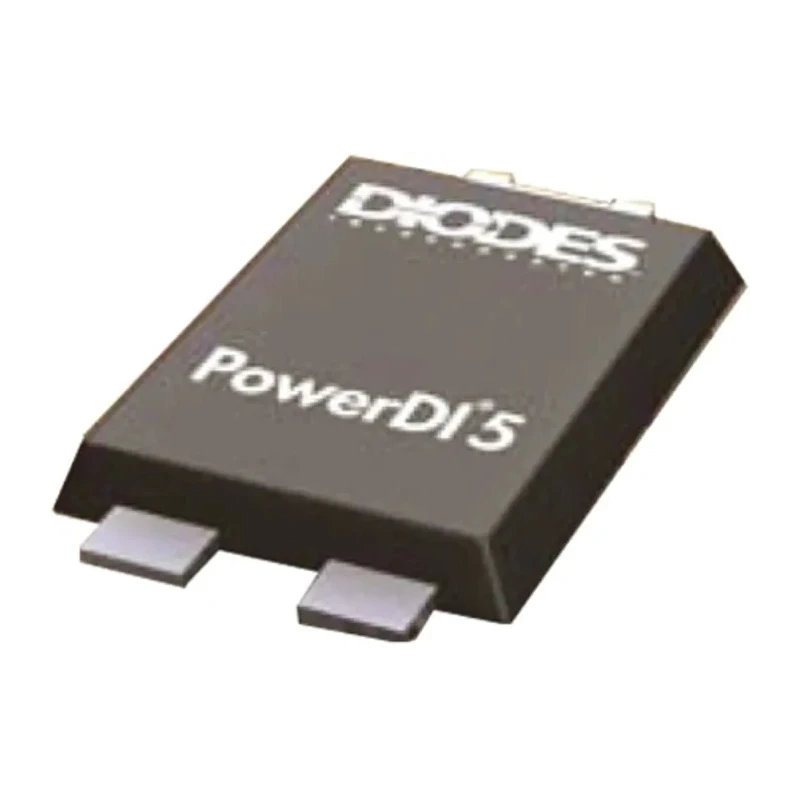

DiodesZetex Power Transistor 6 A NPN 60 V 3-Pin Surface Mount PowerDI5 Package DXT2010P5

DiodesZetex DXT2010P5 is a general-purpose NPN power transistor designed for efficient switching and amplification in electronic circuits. Featuring a maximum DC collector current of 6 A and a maximum collector emitter voltage of 60 V, this transistor offers robust performance in a reliable 3-pin PowerDI5 surface mount package. It is designed to operate under a wide temperature range from -55°C to 150°C, enabling use in demanding industrial and commercial electronics environments.

The transistor supports a minimum DC current gain of 20 and a maximum transition frequency of 130 MHz, providing suitability for moderate to high-speed switching applications. The package dimensions of 6.6 mm length, 4.05 mm width, and 1.15 mm height allow compact and efficient PCB layouts.

This device does not possess automotive standard certifications but is ideal for various applications including power amplifiers, motor control, and switching regulators in consumer and industrial electronics. Its surface mount configuration enhances assembly efficiency and effective heat dissipation within high-density circuit boards.

This transistor is a single NPN configuration suitable for standard amplification tasks. Maximum power dissipation is 3.2 W, facilitating consistent operation under load. Capabilities include a maximum collector base voltage of 150 V and emitter base voltage of 7 V for rugged operational tolerance.

The package type PowerDI5 is optimized for surface mounting on printed circuit boards. The transistor includes 3 pins to simplify electrical connections and circuit integration.

Optimize your electronic device designs with DiodesZetex DXT2010P5 Power Transistors, ensuring reliable performance in industrial, manufacturing, and electronic assembly applications. Explore EnvMart’s comprehensive semiconductor products for more specialized components tailored to your project requirements.
