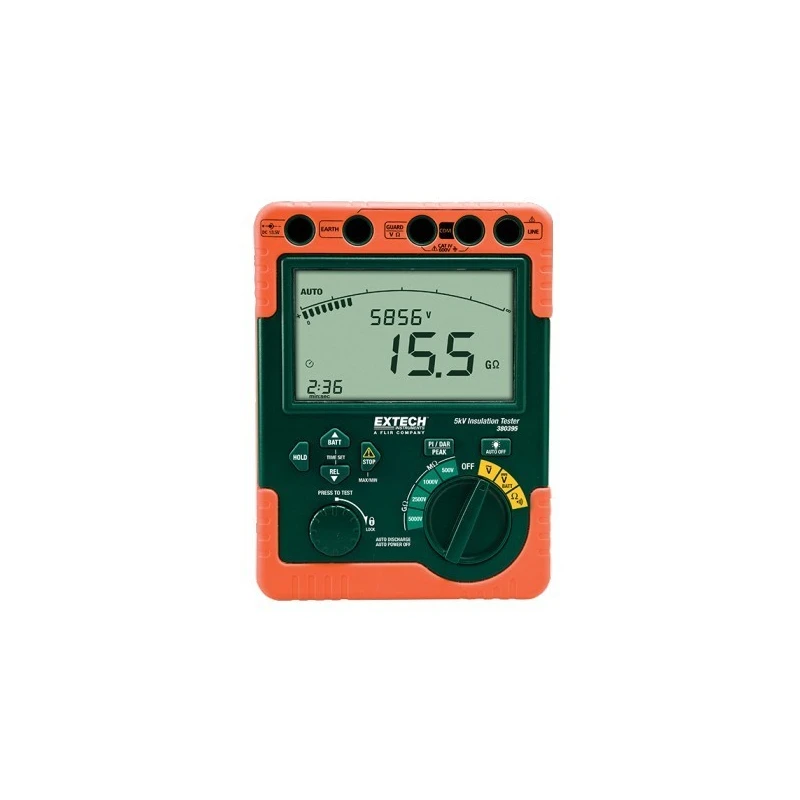

Extech Model 380395 5KV Digital Insulation Tester
Specifications
| Accuracy | 1% of reading 2.5% of reading |
|---|---|
| Power | Eight type C batteries |
| Dimensions | 7.8 x 5.8 x 3.4 (198 x 148 x 86mm) |
| Weight | 3.2lbs (1438g) |
| Resistance | 0 to 600ohm |
| Test Voltage (V) | 500V/1000V/2500V/5000V |
| AC/DC Voltage (V) | 0 to 600V |
Key Features
- Test Voltages of 500V, 1000V, 2500V, and 5000V
- Measure Insulation Resistance to 60GOhm
- Large 6000 count display with bar graph and backlight
- Polarization Index measurement (PI)
- Dielectric Absorption Ratio measurement (DAR)
- AC/DC Voltage measurement from 0 to 600V with Max/Min, Peak and Relative functions
Product Description
Extech Model 380395 5KV Digital Insulation Tester, Wide Range Measurement up to 5kV with Insulation Resistance to 60GOhm With the 380395 measure Insulation Resistance to 60GO with test voltages of 500V, 1000V, 2500V, and 5000V. Featuring polarization Index measurement (PI), Dielectric Absorption Ratio measurement (DAR), AC/DC Voltage measurement to 600V with Min/Max, Peak, and Relative functions, and 1 to 15-minute timer function for IR measurements. Comes with test leads, eight C batteries, 120V AC adaptor, heavy-duty carrying case, and user manual
- 1 to 15 minute timer function for IR measurements
- Resistance measurement
- Indication of output voltage and discharge voltage
- Auto-discharge function and voltage output warning function
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum test voltage of this model is 5000V.
It measures insulation resistance up to 60 GOhm.
It can measure AC and DC voltage from 0 to 600V.
The accuracy for insulation resistance readings is 1% of the reading.
The dimensions are 7.8 x 5.8 x 3.4 inches (198 x 148 x 86 mm).
It weighs 3.2 lbs (1438 g).
It operates on eight type C batteries.
It includes a 1 to 15-minute timer function for insulation resistance measurements.
In addition to insulation resistance, it can perform Polarization Index (PI) and Dielectric Absorption Ratio (DAR) measurements.
It comes with test leads, eight C batteries, a 120V AC adaptor, a heavy-duty carrying case, and a user manual.
The resistance measurement range is from 0 to 600 ohms.
Yes, it includes an auto-discharge function and a voltage output warning function.
