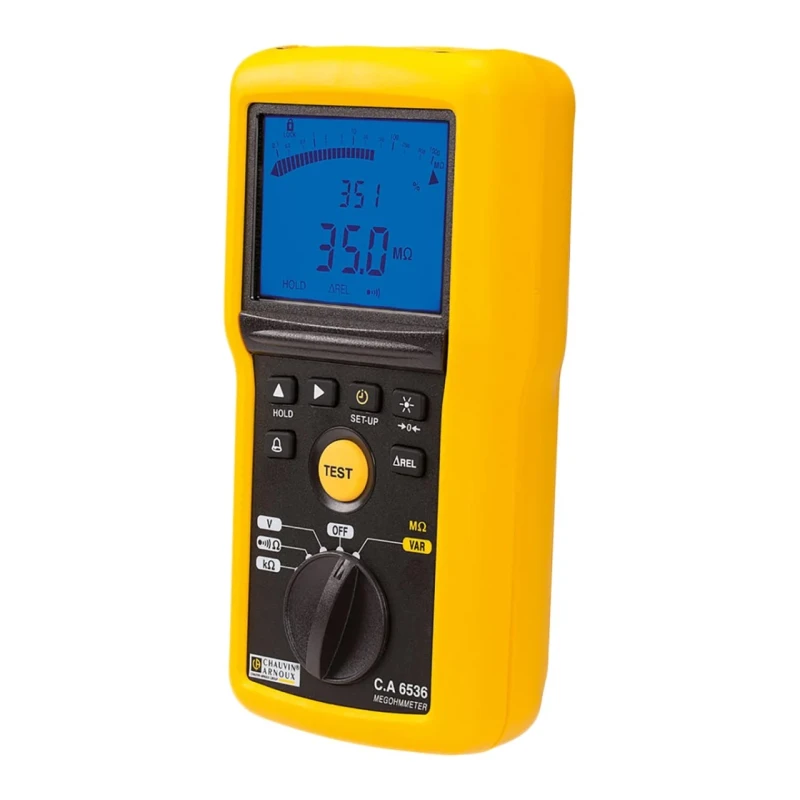

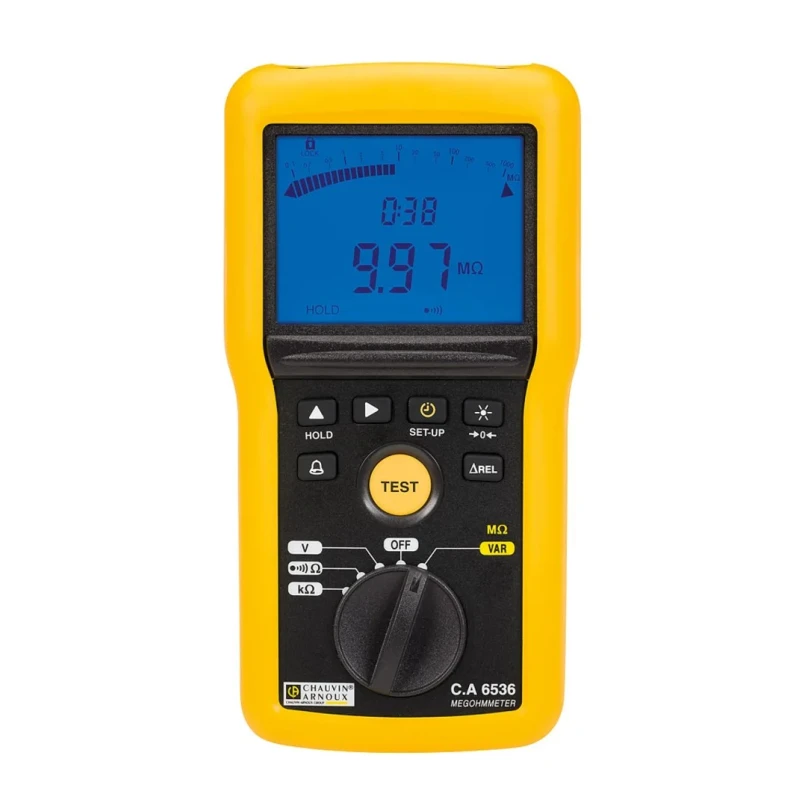

Chauvin Arnoux Insulation & Continuity Tester, 10 V Min, 100 V Max, 20 GΩ CAT IV P01140836
Specifications
| Country of Origin | France |
|---|---|
| Display Type | Digital |
| Brand | Chauvin Arnoux |
| Battery Life | 3000, 6000Measurements |
| Battery type | AA |
| Height | 211mm |
| Length | 108mm |
| Model | P01140836 |
| Gross Weight | 850g |
| Width | 60mm |
| Maximum Operating Temperature | 55°C |
| Tester Type | Insulation & Continuity Tester |
| Minimum Operating Temperature | -20°C |
| Test Current | 200mA |
| Minimum test Voltage | 10V |
| Safety Category Level | CAT IV |
| Safety Category Voltage | 600V |
| Maximum Test Voltage | 100V |
| Insulation Testing Resistance | 20GΩ |
Key Features
- Variable test voltage from 10 V to 100 V in 1 V increments.
- Digital display with 2 x 4000 counts and logarithmic bar graph.
- Compact dimensions of 211 x 108 x 60 mm and lightweight 850 g construction.
- Protection rating of IP54 ensures durability in harsh environments.
- Operates in temperature ranges from -20°C to 55°C.
- Equipped with AA batteries providing long operational life.
- Safety category rated CAT IV 600 V for high-voltage applications.
- Includes a comprehensive accessory kit for enhanced usability.
Product Description
Chauvin Arnoux P01140836 insulation and continuity tester is a high-precision electrical measurement instrument designed for professional use in industrial, avionics, space, and defense sectors where strict voltage testing compliance is required.
This tester offers a variable test voltage from 10 V minimum to 100 V maximum adjustable in 1 V increments, enabling testing tailored to specific application requirements. Featuring a clear digital display with 2 x 4000 counts alongside a logarithmic bar graph, it facilitates easy reading of insulation resistance up to 20 GΩ.
Its compact size of 211 mm height, 108 mm length, and 60 mm width combined with a lightweight 850 g build enhances portability and user comfort during field operations. The instrument is rated IP54 for protection against dust and water splashes, ensuring reliability in demanding environments.
Operating temperature range from -20°C to 55°C makes this device suitable for variable climatic conditions. It operates on AA batteries with a lifespan capable of supporting extensive measurements, ideal for sustained onsite usage.
The device is rated CAT IV 600 V compliant for user safety, enabling safe operation on high-voltage installations. This insulation and continuity tester is supplied with a carrying bag, elbowed-straight safety leads (1.5 m, red and black), crocodile clip, test probe, wire grips, batteries (x6), a multilingual user guide CD, a quick start guide, and safety datasheet, ensuring full user readiness out of the box.
Variable test voltage from 10 V to 100 V in 1 V increments. Digital display with 2 x 4000 counts and logarithmic bar graph. Compact size and lightweight design for portability. IP54 rated for dust and water resistance. Wide operating temperature range from -20°C to 55°C.
CAT IV 600 V safety rating for high-voltage applications. Comprehensive accessory set included for hands-free and safe operation.
This Chauvin Arnoux insulation tester is well suited for industrial, laboratory, HVAC, avionics, space, defense, and electrical maintenance applications. Explore more Insulation Testers and measurement instruments on EnvMart to find compatible tools for your technical needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum insulation resistance that this model can measure is 20 GΩ.
It offers a variable test voltage range from 10 V to 100 V, adjustable in 1 V increments.
The operating temperature range for this unit is from -20°C to 55°C.
It features a digital display with 2 x 4000 counts and a logarithmic bar graph for easy reading.
The gross weight of this tester is 850 g.
It is rated CAT IV 600 V, ensuring safe operation in high-voltage applications.
This insulation tester operates on AA batteries, which support a long operational life.
It comes with a comprehensive accessory kit including safety leads, a crocodile clip, test probe, wire grips, batteries, and user guides.
The tester has an IP54 protection rating, making it resistant to dust and water splashes.
This model is suited for industrial, laboratory, HVAC, avionics, space, defense, and electrical maintenance applications.
The dimensions of this unit are 211 mm in height, 108 mm in length, and 60 mm in width.
The battery life can support approximately 3000 to 6000 measurements, depending on usage.
