Fluke Insulation Tester 250 V Min, 5 kV Max, 1 TΩ Resistance, CAT IV 600 V, CAT III 1000 V, Model FLUKE-1550C FC Kit w/IR3000
Specifications
| Country of Origin | United States |
|---|---|
| Display Type | LCD |
| Brand | Fluke |
| Battery Life | 750Tests |
| Battery type | Rechargeable Lead Acid (Yuasa NP2.8-12) |
| Height | 160mm |
| Length | 277mm |
| Model | FLUKE-1550C FC Kit w/IR3000 |
| Gross Weight | 3.7kg |
| Width | 269mm |
| Maximum Operating Temperature | 50°C |
| Tester Type | Insulation Tester |
| Minimum Operating Temperature | -20°C |
| Test Current | 2mA |
| Minimum test Voltage | 250V |
| Standards/Approvals | CE, CSA |
| Safety Category Level | CAT IV, CAT III |
| Safety Category Voltage | 600, 1V |
| Maximum Test Voltage | 5kV |
| Insulation Testing Resistance | 1TΩ |
Key Features
- Supports adjustable DC test voltages from 250 V up to 5000 V for versatile application.
- Measures insulation resistance up to 1 teraohm for detecting high-resistance conditions.
- Equipped with rechargeable lead-acid battery providing long testing sessions.
- Safety ratings include CAT IV 600 V and CAT III 1000 V for secure field operation.
- Built-in guard system reduces surface leakage effects for accurate readings.
- Timer function enables automated tests up to 99 minutes.
- Wireless infrared-to-mobile app connector allows remote monitoring and data storage.
- Suitable for industrial motors, generators, switchgear, and cable insulation testing.
Product Description
Fluke FLUKE-1550C FC Kit w/IR3000 insulation tester is a precision instrument designed for industrial maintenance and testing of high-voltage insulation resistance on electrical switchgear, motors, generators, and cables. Featuring selectable DC test voltages from 250 V up to 5000 V and resistance measurement up to 1 TΩ, it supports comprehensive diagnostics essential for preventative maintenance and commissioning.
The tester includes a rechargeable lead-acid battery (Yuasa NP2.8-12) allowing extended use with 750 tests per charge. Safety is ensured with CAT IV 600 V and CAT III 1000 V ratings, protecting field personnel during operation. A built-in guard minimizes surface leakage currents for more accurate measurements.
Equipped with a timer function up to 99 minutes for automated sequences, this device also incorporates wireless data transmission through an infrared-to-wireless interface compatible with a mobile app. This enables remote start/stop control, trending analysis, and secure data storage, reducing manual recording tasks.
Applications include routine preventive maintenance of industrial motors and generators, troubleshooting and commissioning of medium-voltage switchgear, and cable insulation integrity verification in power distribution systems. The instrument's environmental operating range spans from -20 °C to 50 °C with humidity up to 80% at 31 °C, decreasing linearly to 50% at 50 °C, ensuring reliable performance in demanding conditions.
Supports adjustable DC test voltages from 250 V to 5000 V for wide applicability. Measures insulation resistance up to 1 teraohm for high-resistance detection. Rechargeable lead-acid battery (Yuasa NP2.8-12) provides energy for 750 tests per charge.
Safety certified to CAT IV 600 V and CAT III 1000 V standards for operator protection. Incorporates guard system to reduce measurement errors from surface leakage. Timer function allows automatic insulation test sequences up to 99 minutes.
Wireless infrared adapter transfers data to mobile app for remote control and trending. Ideal for maintenance of industrial motors, generators, power cables, and switchgear. Robust operation between -20 °C and 50 °C with controlled humidity tolerance.

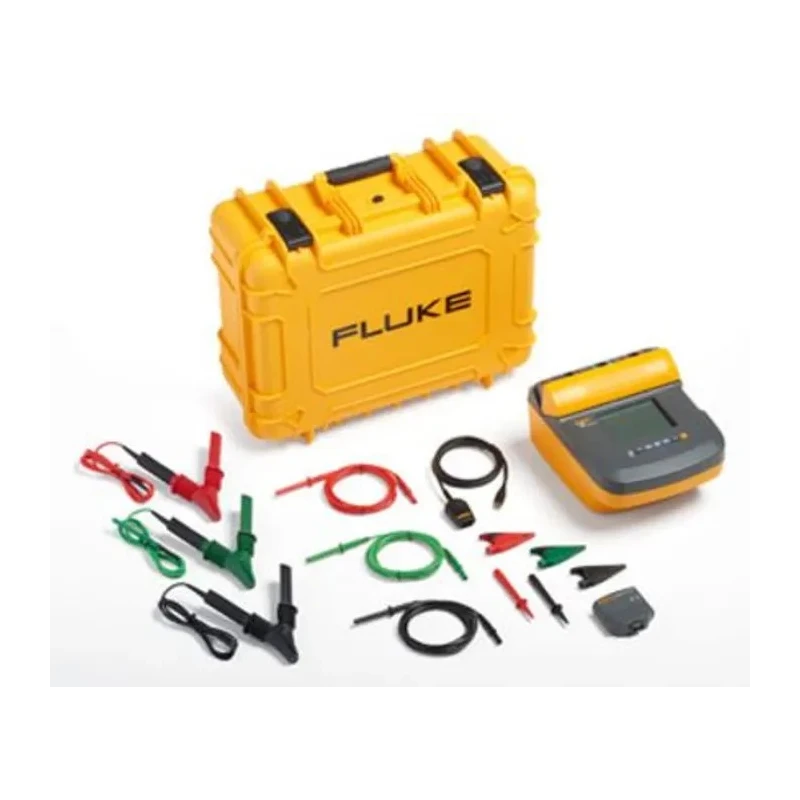

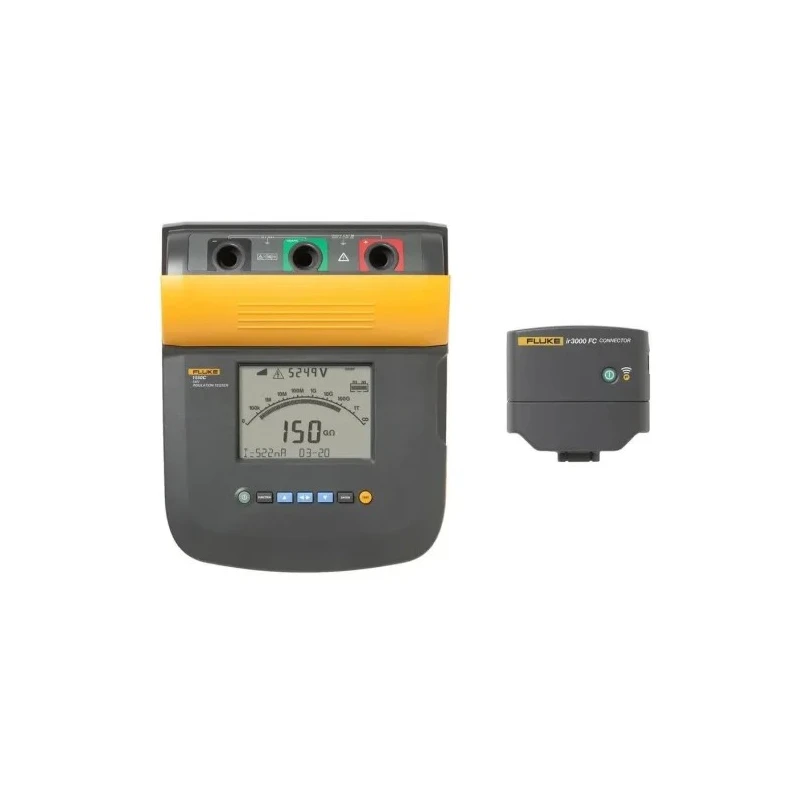

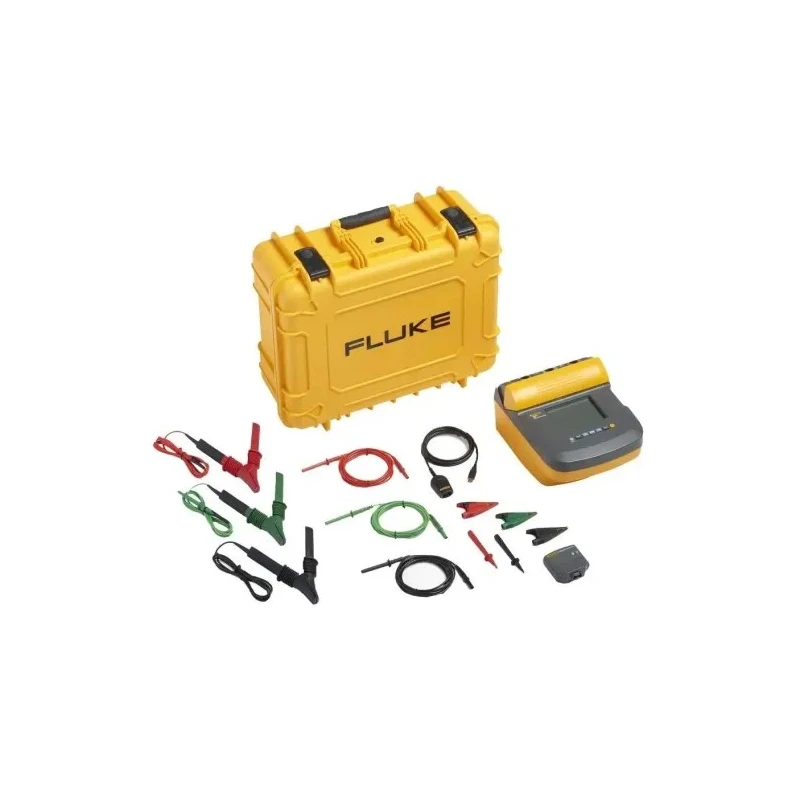

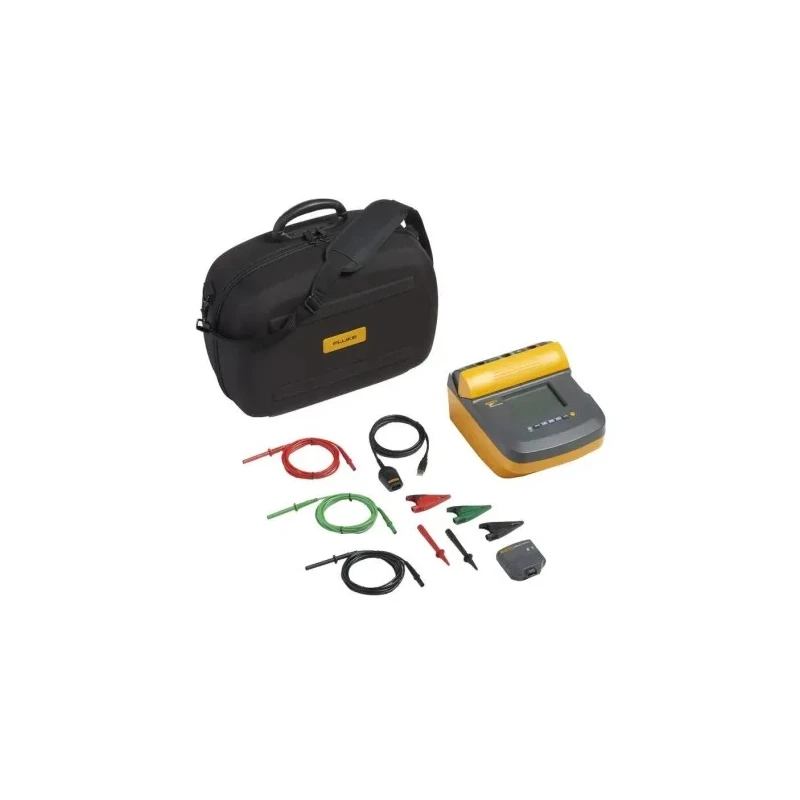

This Fluke insulation tester kit includes the FLUKE-1550C FC tester, IR3000 infrared adapter, test cables with alligator clips (red, black, green), and AC power charger. Its rugged design and advanced features support industrial, manufacturing, HVAC, and electrical testing applications. Explore more Insulation Testers and electrical test equipment on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum test voltage supported by this model is 5 kV.
It can measure insulation resistance up to 1 teraohm (1 TΩ).
This insulation tester supports adjustable DC test voltages from 250 V to 5000 V.
It is safety certified to CAT IV 600 V and CAT III 1000 V standards.
The operating temperature range is from -20 °C to 50 °C.
The rechargeable lead-acid battery can provide energy for up to 750 tests per charge.
It uses a rechargeable lead-acid battery, specifically the Yuasa NP2.8-12.
The kit includes the FLUKE-1550C FC tester, an IR3000 infrared adapter, test cables with alligator clips, and an AC power charger.
It features an LCD display for clear visibility of measurements.
The gross weight of this unit is 3.7 kg.
It complies with CE and CSA standards.
