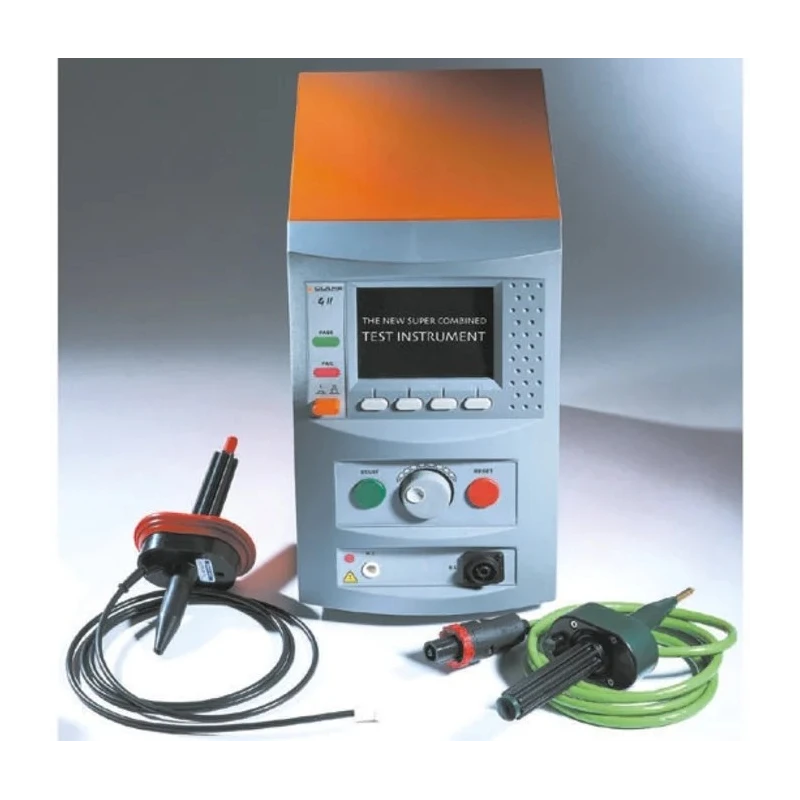

Seaward Clare H103 Insulation Tester Hipot Tester 250 V Min, 6000 V dc Max 40A Test Current 450A922

The Seaward Clare 450A922 H103 hipot tester insulation tester is a precision instrument designed for industrial and laboratory electrical safety testing. It enables comprehensive insulation resistance testing with voltage ranges from 250 V minimum to 6000 V DC maximum, supporting dielectric strength, earth/ground bond, and DCIR tests.

Its bright LCD display and simple single-button operation offer straightforward use in manufacturing quality control, compliance assessment, and factory testing environments.

Key technical features include fully isolated high-tension outputs to safely conduct high current flash testing in accordance with EN 50191 standards. The device stores up to 6000 test results and sequences internally, with graphical presentation of voltages and pass/fail limits on a 320 x 240 VGA LCD screen.

Advanced capabilities such as AC/DC hipot testing, earth bond testing to verify grounding integrity, ARC detection for early warning of arcing, and configurable manual and automated test sequences provide robust flexibility for diverse industrial applications.

The tester supports PC connectivity for data logging and analysis via PATguard software (now discontinued), barcode reading for inventory control, printing of product ID and test reports when connected to a compatible printer, and integration with external status beacons and BrainCell equipment tagging systems.

With compact yet sturdy construction, this 15 kg device measuring 370mm long, 200mm wide, and 300mm high is ideal for factory floors, laboratories, quality assurance labs, and electrical test and measurement scenarios.

Equipped with a clear LCD display for easy reading. Supports test currents up to 40A for comprehensive testing. Offers AC and DC hipot testing capabilities for insulation resistance measurement. Includes earth bond testing to ensure proper grounding safety.

Features ARC detection to identify potential arcing problems. Allows fully configurable manual testing for versatile test scenarios. Capable of high-volume automated testing to boost efficiency. Includes PC connectivity for data logging and advanced analysis.

Compact dimensions of 370mm length, 200mm width, and 300mm height. Robust 15 kg weight for stable operation in lab and industrial environments.

This equipment is widely used in industrial, laboratory, construction, manufacturing, electrical maintenance, and safety compliance environments for reliable insulation testing and electrical safety verification.

Discover more electrical test and measurement instruments and Insulation Testers in EnvMart’s extensive catalog to meet diverse industrial testing needs.
