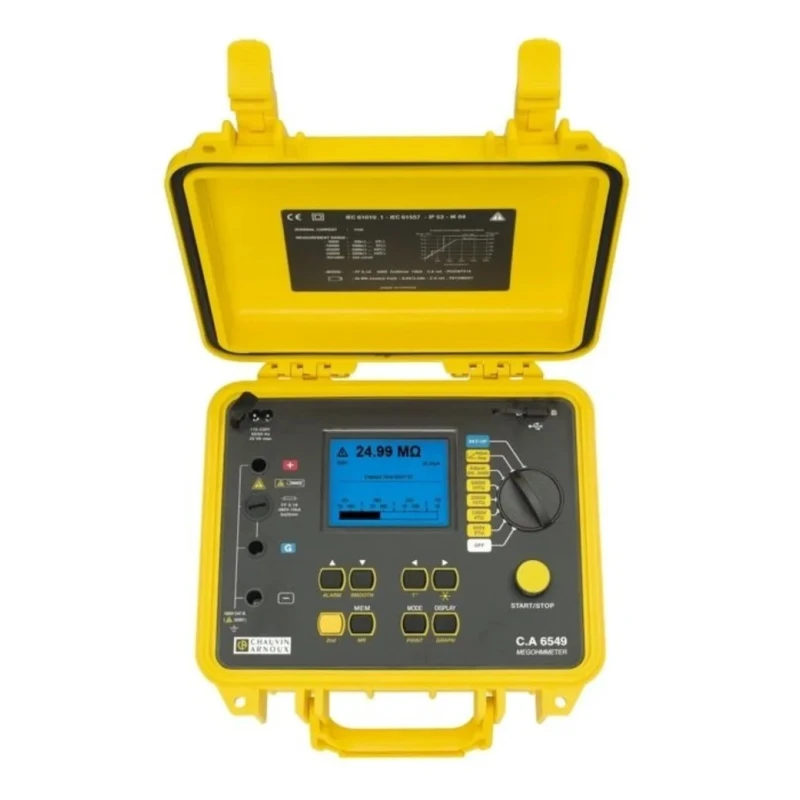

Chauvin Arnoux Insulation Resistance Tester CA 6549, 40 V Min, 5100 V Max, 10000 GΩ, Cat I 2, Aurix, RSCAL P01139713

Chauvin Arnoux CA 6549 Insulation Resistance Tester is a robust and precise electrical test instrument designed for quantitative and qualitative analysis of insulation resistance. The device supports a minimum test voltage of 40 V and a maximum of 5100 V, making it versatile for insulation testing across various industrial and laboratory scenarios.

Equipped with a large backlit LCD featuring a bar graph display, this tester provides clear and intuitive readings for accurate diagnostics. It measures insulation resistance up to 10000 GΩ and can automatically calculate dielectric absorption ratio (DAR), polarization index (PI), and dielectric discharge (DD) quality ratios, with the capability to store resistance over time (R(t)).

The CA 6549 tester features a rechargeable Nickel-Metal Hydride battery, offering continuous operation for up to 30 days with regular test cycles. Its solid construction complies with IEC 61557 standards and safety category Cat I 2 with Aurix, ensuring reliability and user safety during high-voltage testing. The instrument is calibrated to RSCAL standards to guarantee measurement precision.

This device is compact and portable with dimensions of 270 mm length, 250 mm width, and 80 mm height, and a weight of approximately 4.3 kg. It is suitable for electrical insulation testing in industrial, construction, HVAC, maintenance, and laboratory applications, providing advanced programmable features such as test voltage selection in increments from 40 V to 5100 V, test duration programming, voltage locking, smoothing, and alarm functions.

Tester supports a wide range of voltages from 40 V minimum to 5100 V maximum. Maximum insulation resistance measurement up to 10000 GΩ suitable for diverse industrial applications. Equipped with a bar graph display for intuitive real-time readings.

Powered by a rechargeable Nickel-Metal Hydride battery with up to 30 days battery life. Features safety category Cat I 2 with Aurix for enhanced operational safety. Compact dimensions measuring 270 mm length, 250 mm width, and 80 mm height for portability.

Calibrated to RSCAL standards ensuring measurement accuracy and traceability. Manufactured in France, assuring high build quality and compliance with IEC 61557 standards. Ideal for electrical testing in industrial, construction, maintenance, and laboratory environments.

Includes advanced functions such as programmable test duration, test voltage locking, and alarms. Explore a wide range of Insulation Testers and other measuring instruments on EnvMart to find the ideal product for your specific industrial and testing needs.
