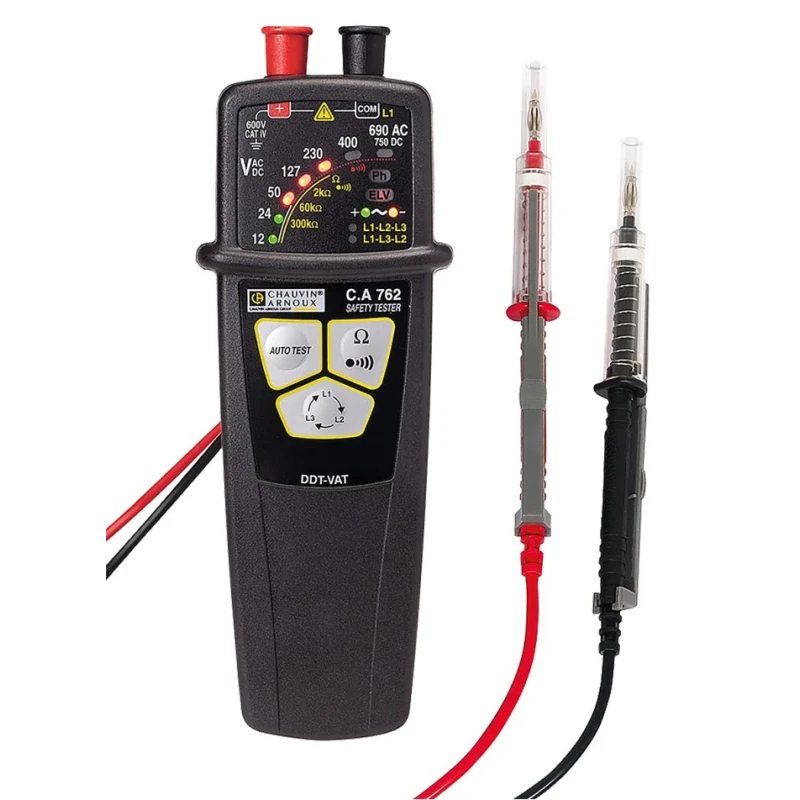

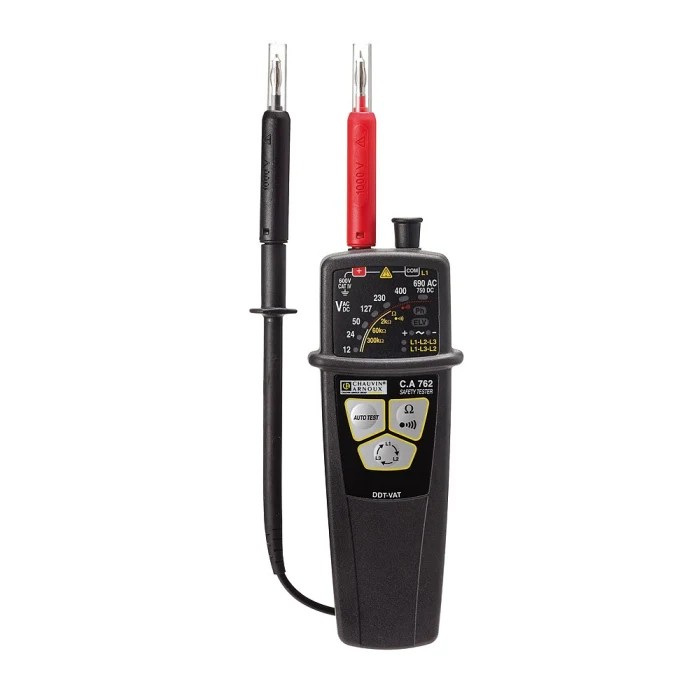

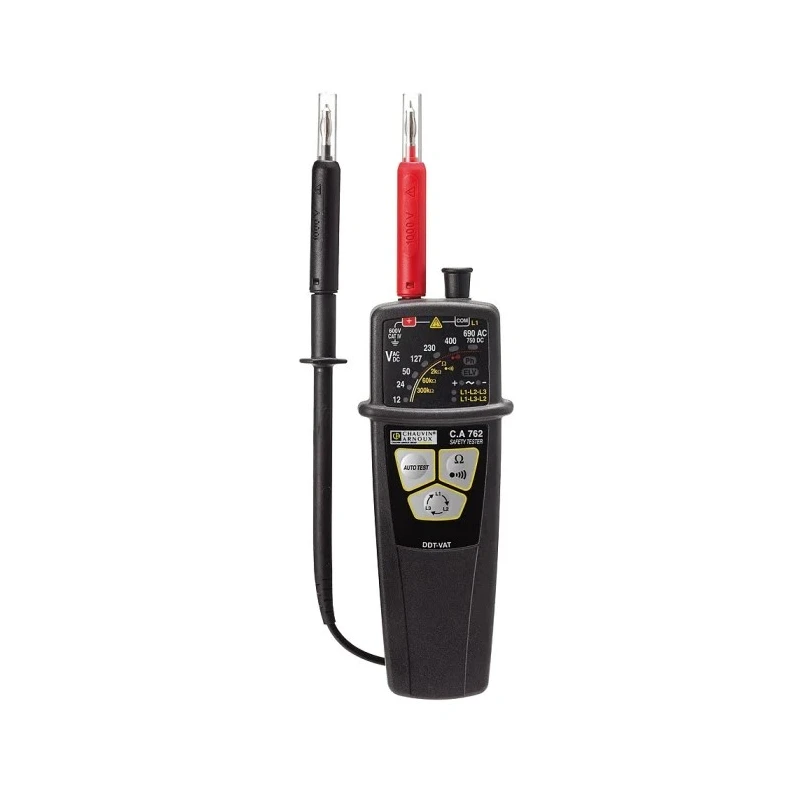

Chauvin Arnoux LED Voltage Tester 690 V AC, 750 V DC Continuity Check, Battery Powered CAT IV P01191762D

Chauvin Arnoux P01191762D LED Voltage Tester is a highly reliable and safety-compliant electrical test instrument designed for electricians. This device performs voltage absence testing up to 690 V AC (16 2/3 Hz to 800 Hz) and 750 V DC, ensuring precise and safe electrical installations and maintenance.

It features a robust design with an IP65 ingress protection rating, making it suitable for both indoor and outdoor use in demanding electrical environments classified under CAT IV 600 V safety standards. The tester is powered by two AAA batteries (LR03) providing portability and ease of use.

The tester's integrated full autotest ensures the functionality of electrical circuits, power supply, display, and measuring leads before use, improving operational safety. A redundant safety system with an ELV LED indicator alerts users when voltages exceed 50 V AC or 120 V DC, reducing the risk of accidental shock or error.

Additional functionalities include continuity testing across a range of resistance values (2 kΩ, 60 kΩ, and 300 kΩ), single-pole phase testing, and phase sequence testing up to 400 Hz. The device includes removable test probes and cables, with IP2X accessory probe tips compliant with safety standards.

Compact and lightweight at 163 mm length, 64 mm width, 40 mm height, and 210 grams weight, the tester is easy to handle and practical for field use. It complies with IEC 61243-3 Edition 2 and IEC 61326-1 standards, further assuring quality and safety.

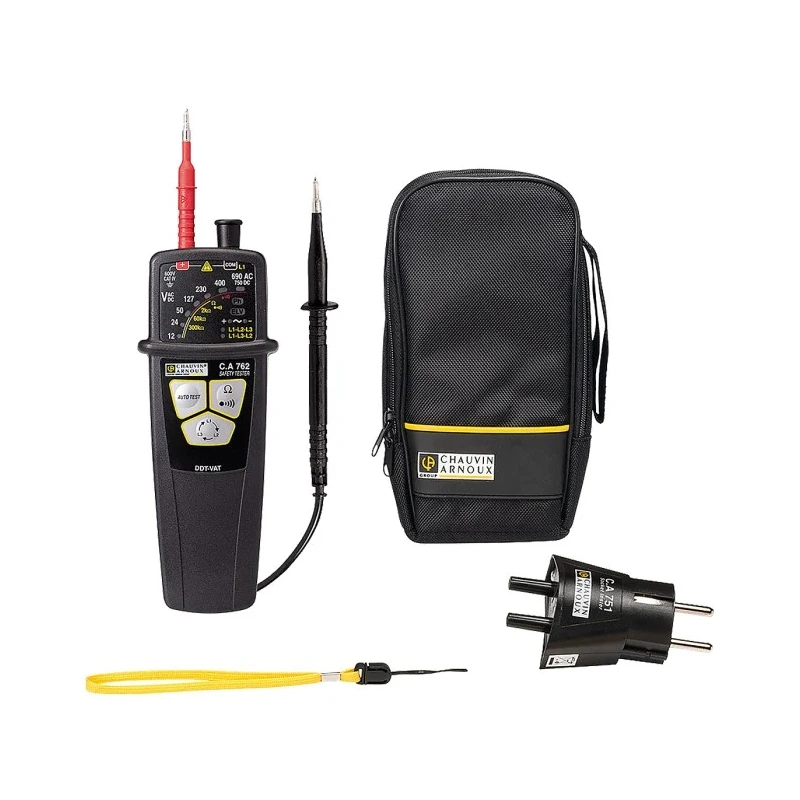

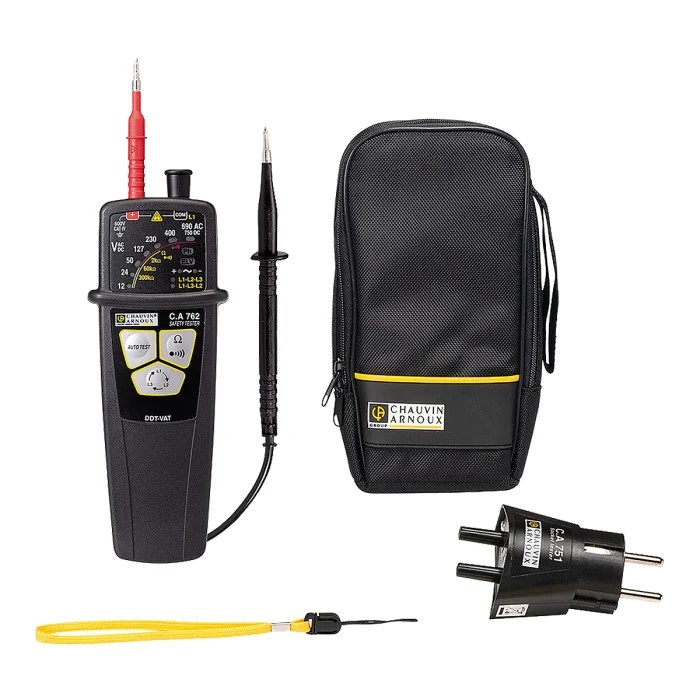

The package contents include a red test probe (2 mm diameter), a black lead terminated by a test probe (2 mm diameter) or black and red leads with IP2X probe tips (4 mm diameter), a strap, batteries, a user manual available in five languages, and a verification certificate.

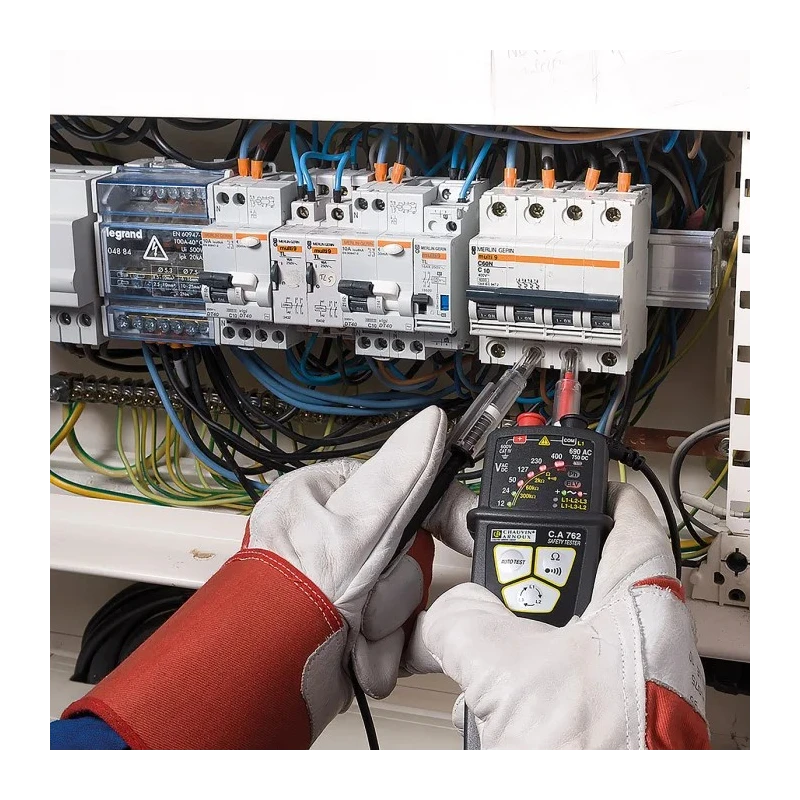

This LED voltage tester is ideal for professional electricians in industrial, commercial, construction, HVAC, and electrical maintenance settings where safety and precision are paramount.

Explore more Voltage Testers and electrical measuring instruments in EnvMart’s comprehensive catalog. Complies with IEC standards for safe electrical testing. IP65 rated protection for use in harsh environments. Battery powered with reliable, portable operation.

Autotest safeguards functionality before use. Includes multiple continuity test resistance levels. Phase rotation and single-pole phase test features. Compact size and lightweight design for ease of use. Pack includes probes, batteries, manual, and certificate.
