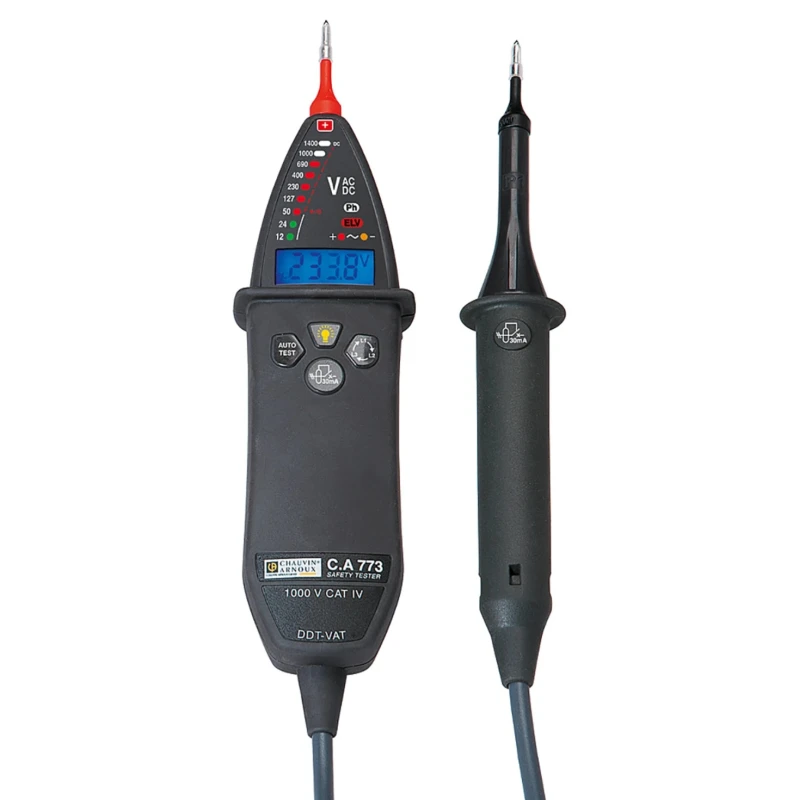

Chauvin Arnoux LED Voltage Tester CAT IV 1000 V AC, 1400V DC, Continuity Check, Battery Powered P01191773

Chauvin Arnoux P01191773 LED Voltage Tester is a high safety category CAT IV device designed for electrical professionals conducting voltage absence testing up to 1000 V AC and 1400 V DC.

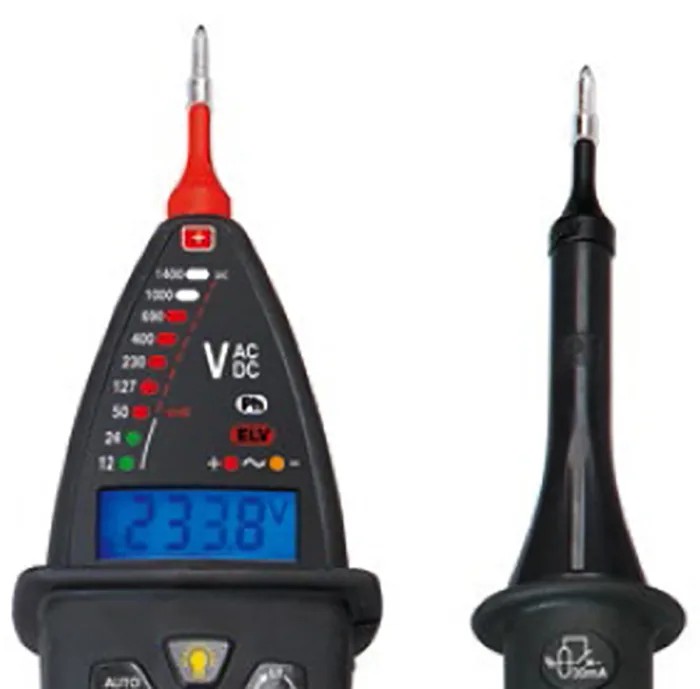

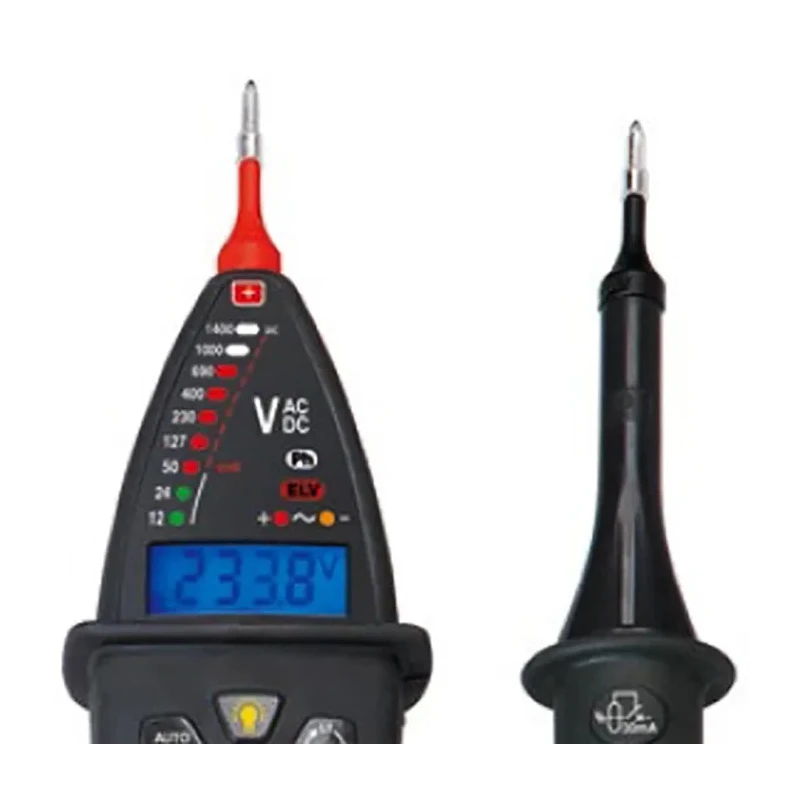

This battery-powered Voltage Tester features an LED display with clear voltage and resistance measurements, including continuity and resistance tests with both audible and visual alerts. It supports RCD trip testing for devices rated 30 mA or below, essential for ensuring the safety of residual current devices.

The tester supports single-pole phase detection and advanced two-pole phase sequence testing using a 2-wire method. It also features lighting at the test probe point for enhanced visibility during measurements. With an IP65 rating, this instrument offers robust protection against dust and water, ideal for industrial environments.

Operating in a temperature range from -15°C to +45°C, it is well-suited for use in varied environmental conditions. Powered by AA alkaline LR6 batteries, it provides portability without compromising performance.

The tester complies with international standards IEC 61243-3:2009, EN 61243-3:2010, and IEC 61010, confirming its reliability and safety for electrical testing up to 1000 V CAT IV voltage levels.

Package contents include the voltage absence tester, user guide in five languages, two 1.5 V LR03/AAA batteries, removable 2 mm test probes with crystal safety covers, probe-tip protection, and a Velcro strap.

The tester has an LED display providing voltage and resistance readouts. Continuity and resistance tests feature audible and visual indications. Includes RCD trip testing for devices rated 30 mA or less. Features single-pole phase detection and two-pole phase sequence testing using a 2-wire method.

Designed with IP65 ingress protection for durability in harsh environments. Operates with AA alkaline LR6 batteries and includes battery-powered test probe lighting. Complies with IEC 61243-3:2009, EN 61243-3:2010, and IEC 61010 standards.

Compact design measures 228 mm in length, 60 mm in width, and 39 mm in height. Operates in temperatures ranging from -15°C to +45°C. Safety category rating is CAT IV 1000 V for high-voltage safety compliance.

Ideal for industrial, laboratory, and electrical maintenance applications requiring reliable high-voltage absence testing and continuity checks. Discover more advanced measuring instruments in the EnvMart collection.
