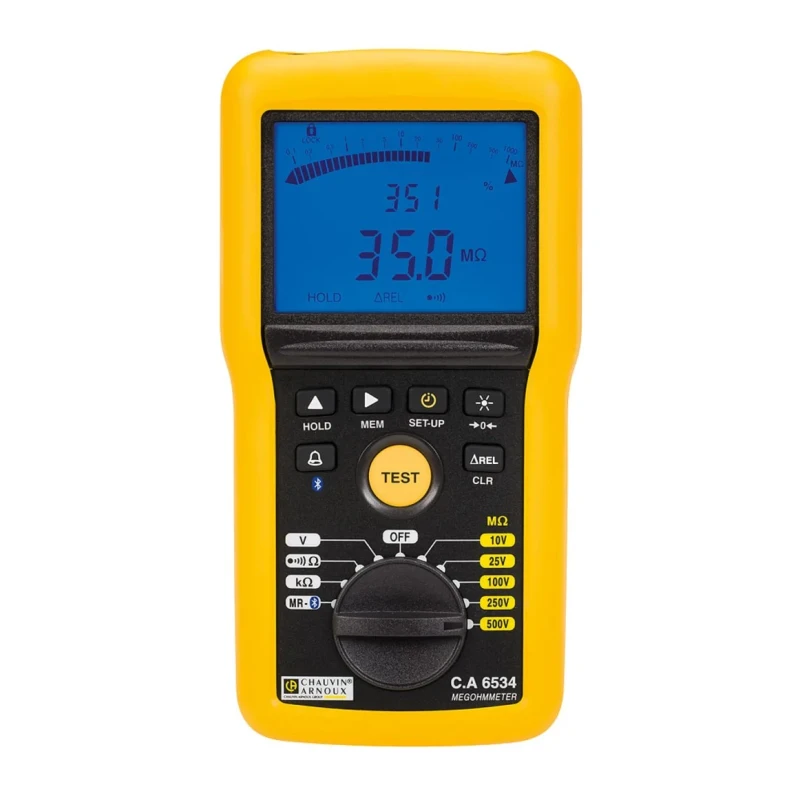

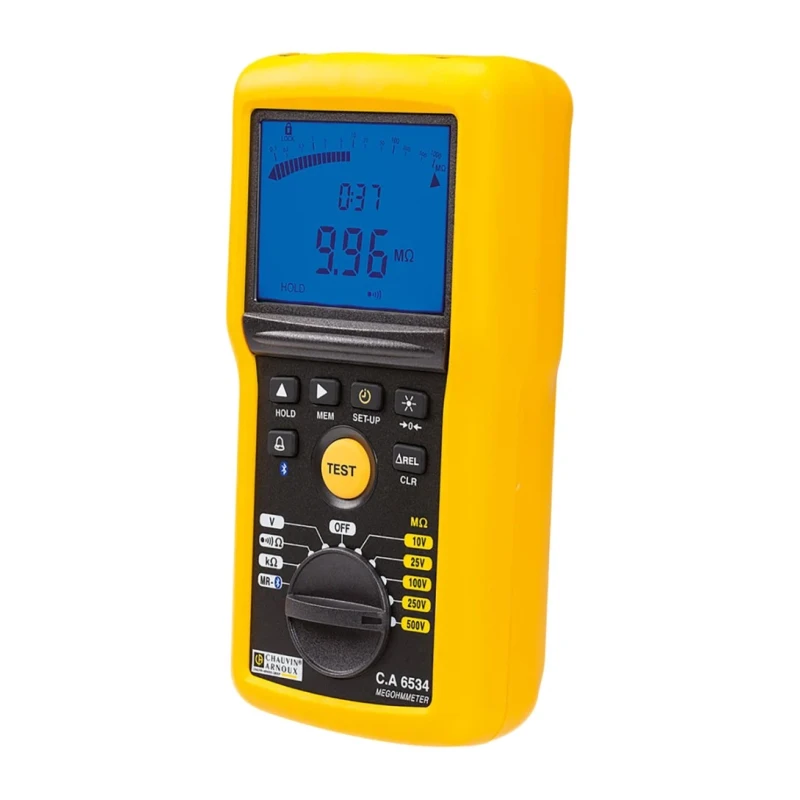

Chauvin Arnoux Insulation & Continuity Tester 10 V Min to 500 V Max, 50 GΩ Resistance, CAT IV 600 V P01140834

Chauvin Arnoux P01140834 Insulation & Continuity Tester is engineered for high precision electronics and ESD applications, featuring a wide test-voltage range from 10 V minimum to 500 V maximum. This instrument covers the stringent requirements of electronics manufacturing and testing industries, supporting both low current and power stage tests.

The tester offers a resistance measurement capability from 2 kΩ up to 50 GΩ, enabling detailed insulation assessments. The digital display, comprising 2 x 4000 counts and a logarithmic bar graph, ensures clear and intuitive readings. Compact dimensions of 211 mm height, 108 mm length, and 60 mm width alongside a light body weight of 850 g facilitate comfortable handheld operation and transport.

This device is rated to safety category CAT IV withstanding voltages up to 600 V, ensuring safe operation within industrial electrical environments. It is designed to operate reliably between -20°C and 55°C and includes IP54 protection for dust and splash resistance, making it robust for demanding field conditions.

The C.A 6534 tester is powered by AA batteries, providing a battery life enabling between 3000 and 6000 measurements. For enhanced user convenience, the product comes supplied with a carrying bag for hands-free use, elbowed and straight safety leads each 1.5 m long in red and black, red crocodile clip, a black test probe, wire grips in matching colors, batteries (six total), multilingual user manual on CD, quick start-up guide, safety datasheet, and Megohmmeter Transfer software.

This insulation and continuity tester is ideal for industrial, laboratory, HVAC, manufacturing, and electronics industries requiring precise electrical insulation resistance testing and continuity verification.

Explore the full range of Insulation Testers and electrical test measurement instruments on EnvMart for comprehensive solutions tailored to your professional needs. Supports test voltages ranging from 10 V to 500 V for versatile insulation testing.

Measurement range extends from 2 kΩ up to 50 GΩ ensuring high precision in resistance measurements. Digital display with 2 x 4000 counts and a logarithmic bar graph for easy data visualization. Compact design measuring 211 x 108 x 60 mm and lightweight at 850 g for portability.

Equipped with safety category CAT IV and rated for up to 600 V for industrial safety compliance. Operates within a temperature range of -20°C to 55°C suitable for diverse environments. Powered by AA batteries providing sufficient battery life for 3000 to 6000 measurements.

Protection rating of IP54 suitable for use in harsh industrial environments. Includes accessories such as carrying bag, elbowed and straight safety leads, crocodile clip, test probe, wire grips, and user manuals.
