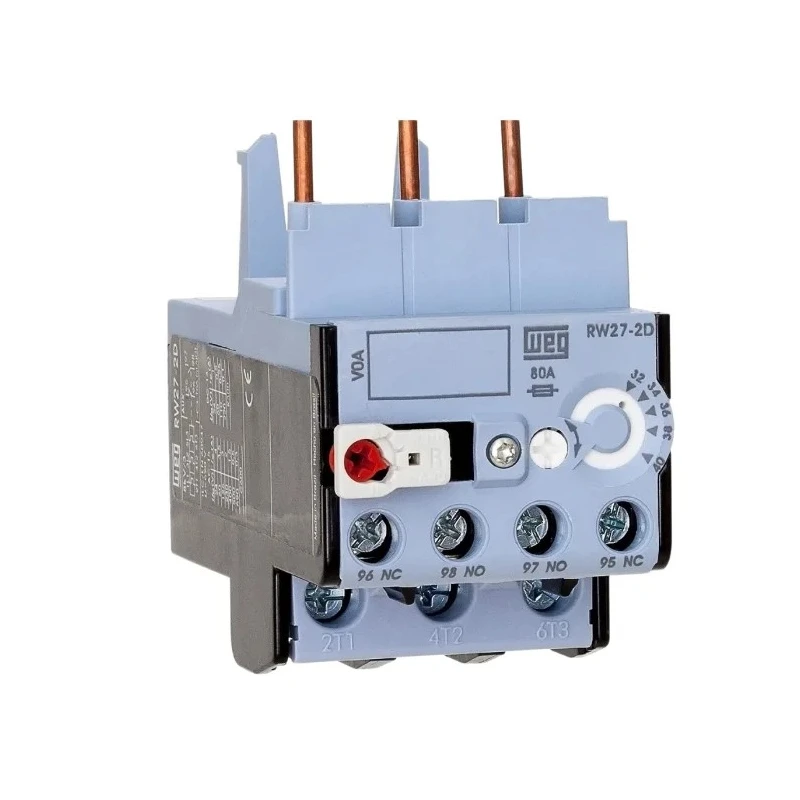

WEG Thermal Overload Relay RW27 with 1 NO/1 NC Contacts, 2.8A F.L.C, 1.8-2.8A Adjustable, 1.7W Power Rating RW27



Category Thermal Overload Relay Brand WEG Condition New

Specifications

Country of Origin	Brazil
Brand	WEG
Length	71.7mm
Model	RW27
Depth	83.7mm
IP Rating	IP10, IP20
Width	45mm
Mount Type	Direct
Series	RW27
Power Rating	1.7W
Maximum Operating Temperature	60°C
Minimum Operating Temperature	-25°C
Terminal type	Screw
Supply Voltage	100, 50V
Contact Voltage	690V ac
Reset Method	Automatic & Manual
Normal State Configuration	1 NO/1 NC
Relay Contact Current	1.8, 2.8A
Number of Auxiliary Contacts	2
Pole and Throw Configuration	3
FLC Motor Rating	2.8A
Adjustable Current Range	1.8 → 2.8 A

Key Features

Adjustable current range from 1.8 to 2.8 amperes for precise overload settings.
Compact dimensions of 45mm width, 71.7mm length, and 83.7mm depth.
Supports supply voltage of 50V and 100V with power rating of 1.7 watts.
Equipped with automatic and manual reset functions for flexible operation.
Rated for contact voltages up to 690V AC with 2 auxiliary contacts included.
Operating temperature range from -25°C to 60°C suitable for industrial environments.
Mounting type is direct for straightforward installation.
Meets IEC standards 60947-1, 60947-2, 60947-4-1, and 60034-30-1 for safety and quality.

Product Description

WEG RW27 Thermal Overload Relay is designed for industrial and electrical automation applications, offering reliable motor overload protection with an adjustable current range of 1.8 to 2.8 amperes and 1.7 watts power rating. It features a 1 normally open and 1 normally closed contact configuration, ensuring efficient motor control and tripping functions.

This relay supports supply voltages of 50V and 100V AC and is equipped with screw terminals for secure wiring. Its compact form factor with dimensions of 45mm width, 71.7mm length, and 83.7mm depth allows easy integration into control panels.

The device operates safely within a temperature range of -25°C to 60°C and carries IP10 and IP20 ratings for ingress protection, making it suitable for various industrial environments. It features both automatic and manual reset methods, providing flexibility in maintaining motor operation after tripping.

Compliance with IEC standards 60947-1, 60947-2, 60947-4-1, and 60034-30-1 confirms the relay’s quality and safety for motor protection. The direct mount type facilitates simple installation in control gear assemblies.

Adjustable current range from 1.8 to 2.8 amperes for precise overload protection. 1 normally open and 1 normally closed contact configuration for reliable control. Screw terminal type ensures strong and safe electrical connections.

Automatic and manual reset capabilities enhance operational flexibility. Compact size suitable for tight panel spaces. Rated for contact voltages up to 690V AC. Wide operating temperature range from -25°C to 60°C. IP10 and IP20 ingress protection for electrical safety.

Direct mount for easy installation. Conforms to IEC standards 60947-1, 60947-2, 60947-4-1, and 60034-30-1.

This Thermal Overload Relay is ideal for protecting motors in industrial automation, manufacturing, HVAC, and electrical control applications. Explore a comprehensive range of WEG relays and contactors at EnvMart to find solutions tailored to your project's safety and control needs.
