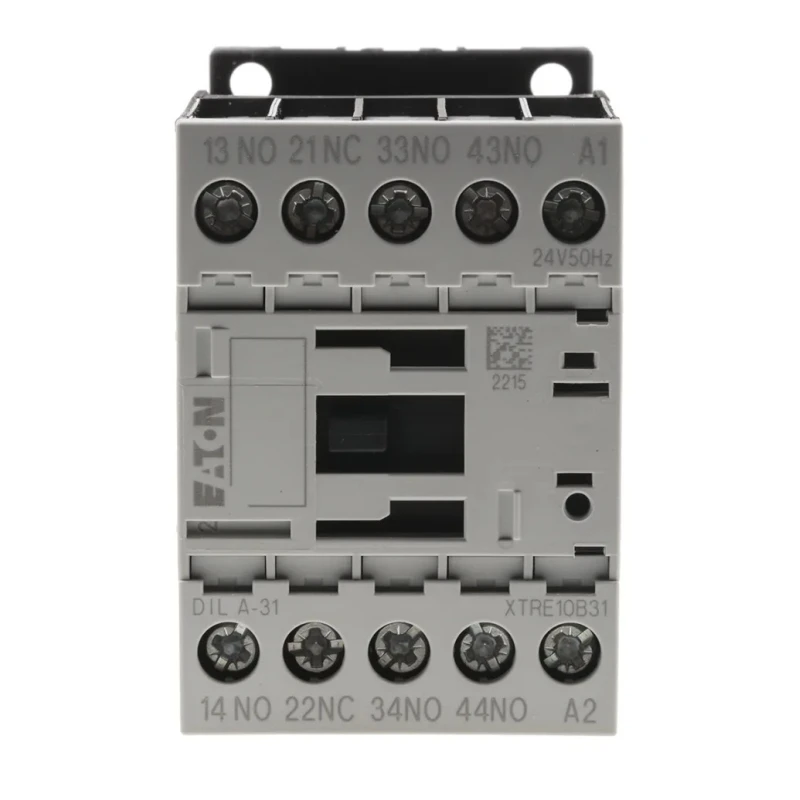

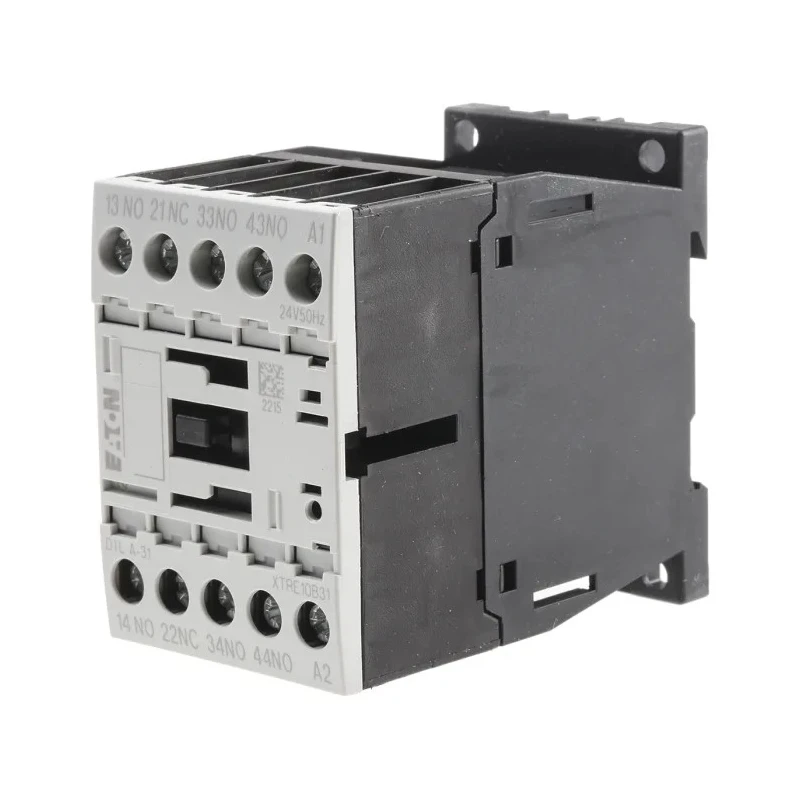

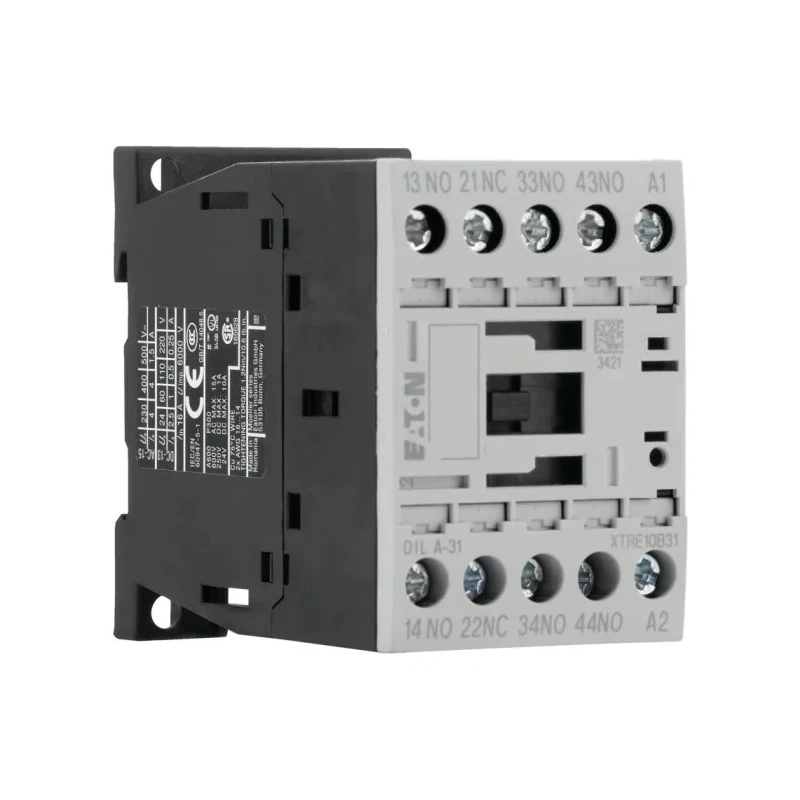

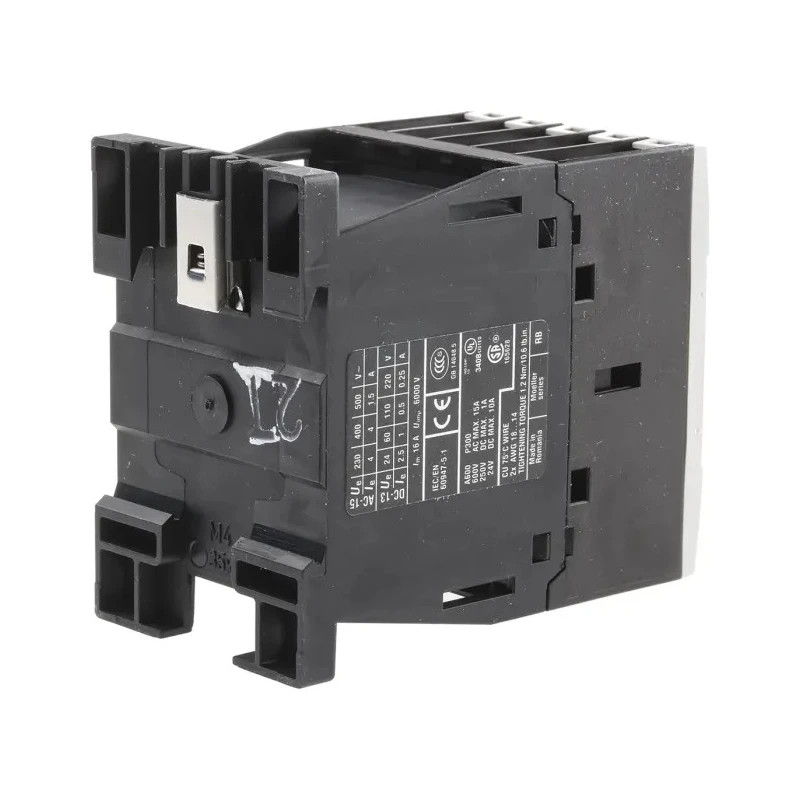

Eaton DILA Contactor Relay 24V AC Coil Voltage, 4-Pole, 4A Operational Current, 3 NO/1 NC Contacts 276351 DILA-31(24V50HZ)

Eaton 276351 DILA-31(24V50HZ) is a robust contactor relay engineered for industrial automation and electrical control applications. Featuring a coil voltage of 24V AC and 4 poles, this relay is capable of handling contact voltages up to 415V AC and operational currents of 4A, making it suitable for medium-duty control circuits.

The relay’s configuration includes 3 normally open (NO) and 1 normally closed (NC) contacts, allowing versatile switching options. The screw terminal mounting simplifies installation and maintenance, ensuring stable electrical connections. Designed for a wide operating temperature range from -25°C to 60°C, it is suitable for use in varied environmental conditions, including enclosed spaces with temperature limits up to 40°C.

This Eaton contactor relay complies with IEC/EN 60947 standards along with CE, CSA, UL, and VDE certifications, guaranteeing adherence to international safety and performance requirements. It is built to meet rigorous mechanical and electrical endurance including a maximum frequency of up to 9000 operations per hour and has positive operating contacts for enhanced reliability during switching operations.

Its applications span motor control in industrial automation, machinery requiring dependable electrical switching, and environments demanding adherence to strict temperature and humidity standards per IEC norms. Although it does not support SmartWire-DT connections, the relay utilises traditional wiring methods ensuring compatibility with existing control systems.

Operates with 24V AC coil voltage, suitable for various applications. 4-pole configuration supports multiple circuit control. Contact rating of 4A at 415V AC ensures capability for industrial loads. Includes 3 normally open and 1 normally closed contacts for versatile switching.

Screw terminal mounting ensures secure and simple installation. Designed to operate between -25°C and 60°C environmental temperatures. Complies with IEC/EN 60947 and multiple international safety standards. Ideal for motor control and automation in industrial electrical systems.

The robust design of Eaton DILA series relays makes them a dependable choice in sectors such as manufacturing, HVAC controls, water treatment plants, and other commercial electrical automation systems. This product offers excellent operational stability, ensuring your electrical control systems function smoothly and reliably.

Explore more offerings in Contactor Relays and electrical automation components at EnvMart for your industrial needs.
