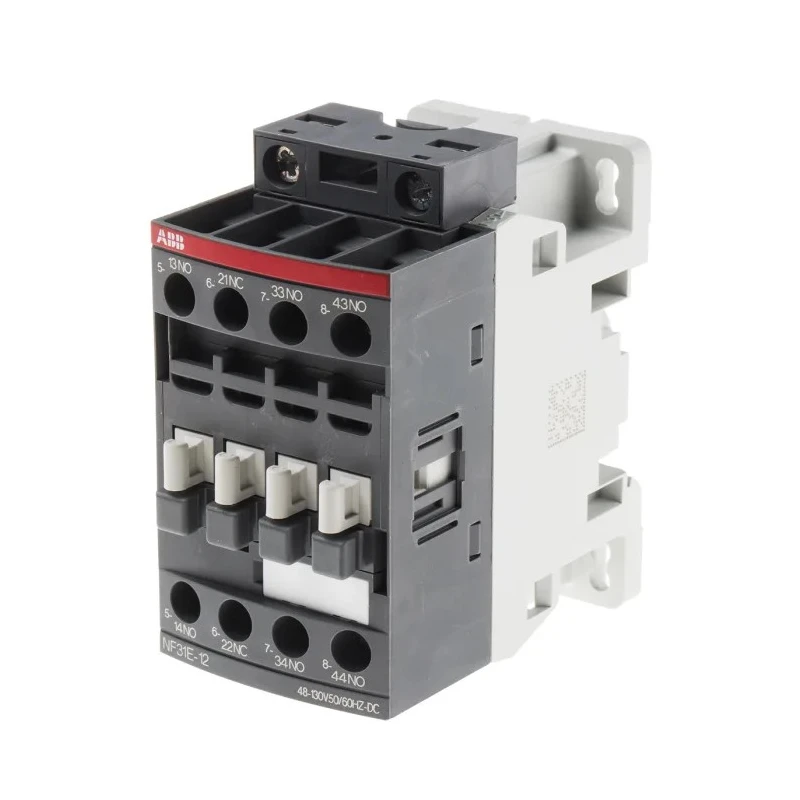

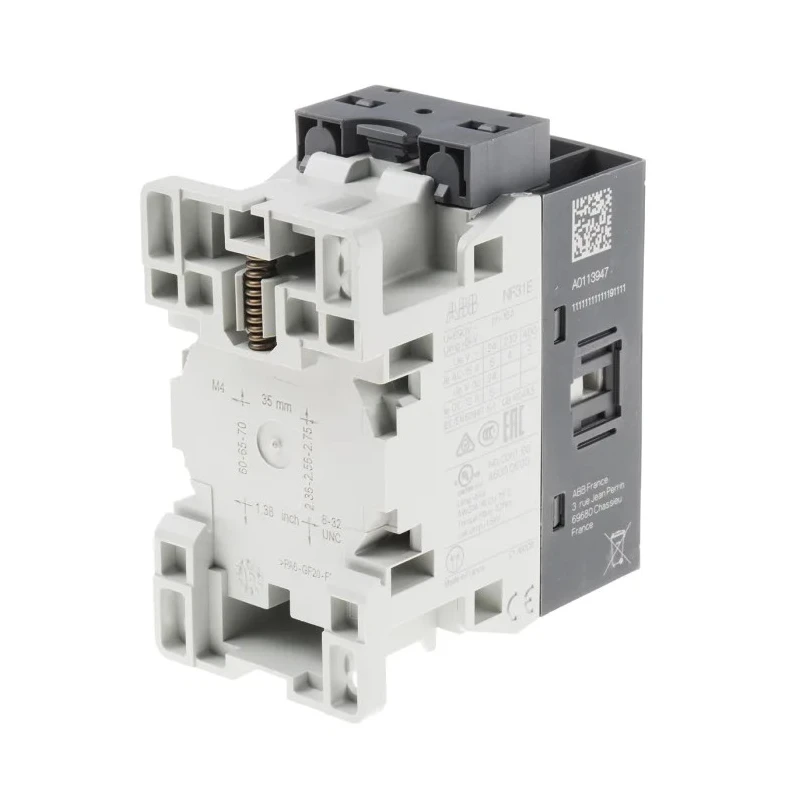

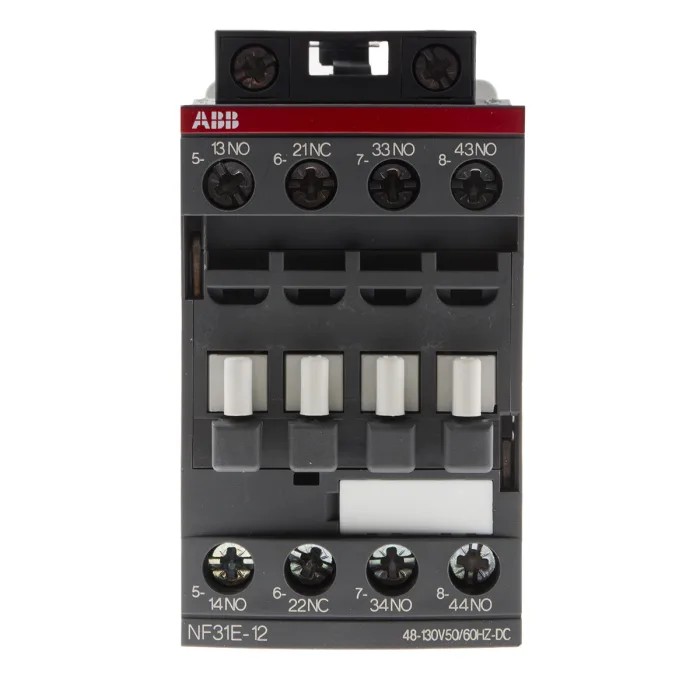

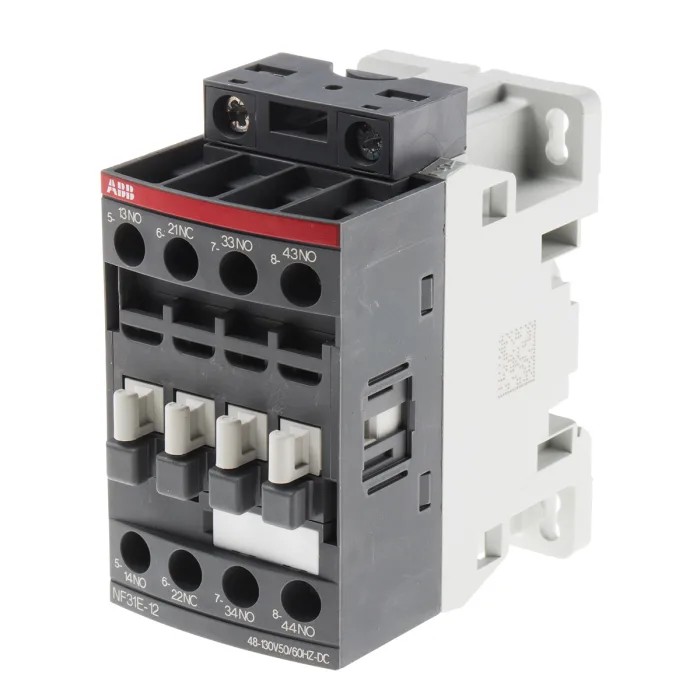

ABB NF Contactor Relay 110V AC Coil 4-Pole 6 A 130V 3 NO/1 NC 690V AC 1SBH137001R1231 NF31E-12
Specifications
| Country of Origin | India |
|---|---|
| Brand | ABB |
| Function | Motor Protection, Self Locking, Straight |
| Length | 80mm |
| Model | 1SBH137001R1231 NF31E-12 |
| Depth | 77mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | NF |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Number of Poles | 4 |
| Standards/Approvals | CSA, IEC, NEMA, UL |
| Contact Voltage | 690V ac |
| Coil Voltage | 110V ac |
| Normal State Configuration | 3 NO/1 NC |
| Contact Current | 6A |
| Number of Auxiliary Contacts | 4 |
| Operational Current Ie | 2A |
| Control Circuit Voltage Uc | 130V |
| Contactor Application | Latching Contactor |
Key Features
- The relay includes a 3 NO and 1 NC auxiliary contact configuration for versatile control schemes.
- Designed for DIN-rail mounting, facilitating easy installation in control panels.
- Equipped with screw terminals to ensure secure and reliable connections.
- Operational temperature range extends from -40°C to 70°C for diverse environments.
- Meets international standards including IEC, CSA, NEMA, and UL approvals.
- Provides latching contactor function with self-locking mechanism enhancing motor protection.
- Rated for control circuit voltage at 130V, supporting common industrial control applications.
- Contact voltage rating up to 690V AC and operational current Ie at 2A.
Product Description
ABB 1SBH137001R1231 NF31E-12 Contactor Relay is a robust industrial control device featuring a 110V AC coil, 4-pole design, and a 6 A contact current rating for reliable switching and motor protection applications.
This contactor relay incorporates a versatile auxiliary contact arrangement with 3 normally open (NO) and 1 normally closed (NC) contacts, enabling complex control schemes and self-locking latching functions to maintain state without continuous coil energization.
The unit is engineered for DIN-rail mounting, allowing rapid, secure installation in industrial control panels where space efficiency is essential. Screw terminal connections provide secure wiring compatible with industrial standards.
Rated to operate efficiently in a wide temperature range from -40°C to 70°C, the relay is suitable for harsh industrial environments. It operates with a control circuit voltage of 130V and supports contact voltage up to 690V AC, making it suitable for three-phase auxiliary circuits and motor protection schemes.
With certifications including IEC 60947-5-1, UL 508, CSA C22.2 N 14, and meeting NEMA and CSA standards, this ABB contactor relay ensures compliance with multiple international safety and performance standards.
The relay’s 3 NO/1 NC auxiliary contacts enable effective make and break control functions. DIN-rail mount offers modular and space-saving panel integration. Screw terminals facilitate industrial-grade wiring security. Broad operational environmental temperature rating supports versatile deployment.
Suitable for motor control, industrial automation, and switching applications. Compact dimensions optimize space in control cabinets. Self-locking latching capability supports holding circuits and motor start/stop control.
Approved by IEC, UL, CSA, and NEMA ensures regulatory compliance.
This ABB NF Series contactor relay is ideal for industrial automation, manufacturing, and motor protection applications requiring reliable electrical switching with modular DIN-rail mounting.
Explore more ABB Contactor Relays and automations on EnvMart for optimized industrial control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this contactor relay is 110V AC.
The maximum contact voltage rating is 690V AC.
This model features a 4-pole design.
The contact current rating is 6A.
The operational temperature range extends from -40°C to 70°C.
It is designed for DIN-rail mounting, facilitating easy installation in control panels.
The auxiliary contact configuration includes 3 normally open (NO) and 1 normally closed (NC) contact.
The dimensions are 80mm in length, 77mm in depth, and 45mm in width.
This relay meets international standards including IEC, CSA, NEMA, and UL approvals.
The function includes motor protection, self-locking, and straight operation.
The control circuit voltage is rated at 130V.
It is equipped with screw terminals to ensure secure and reliable connections.
