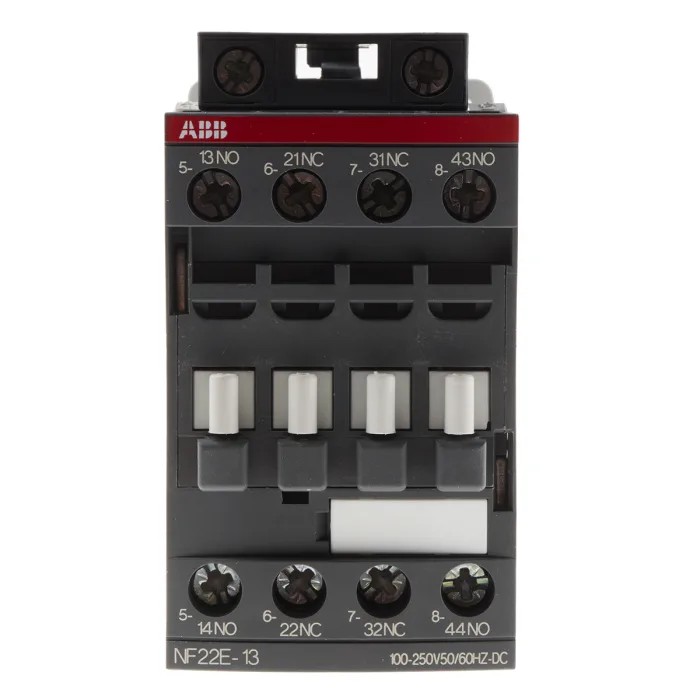

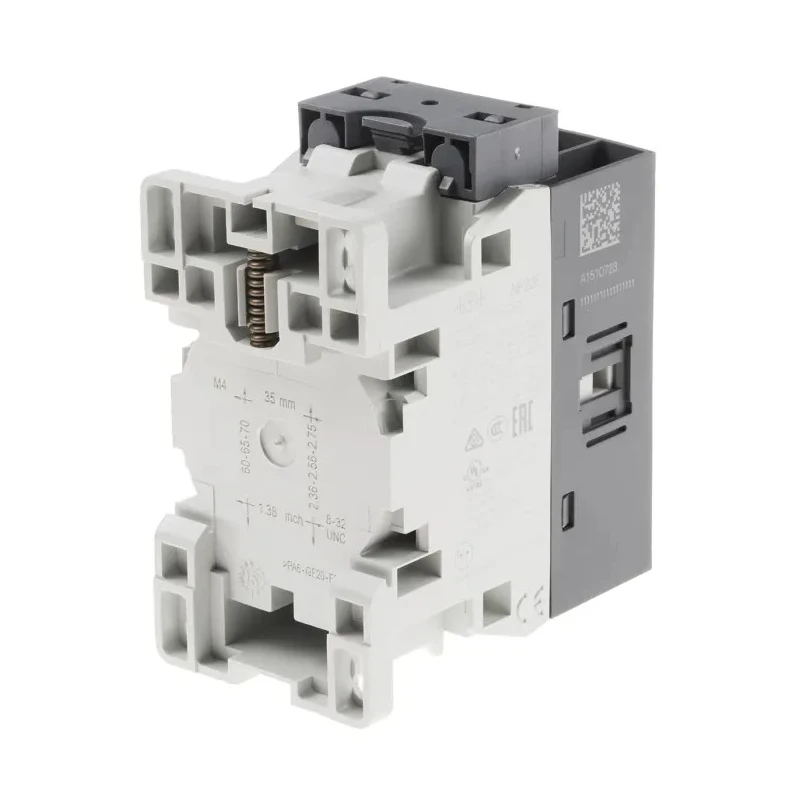

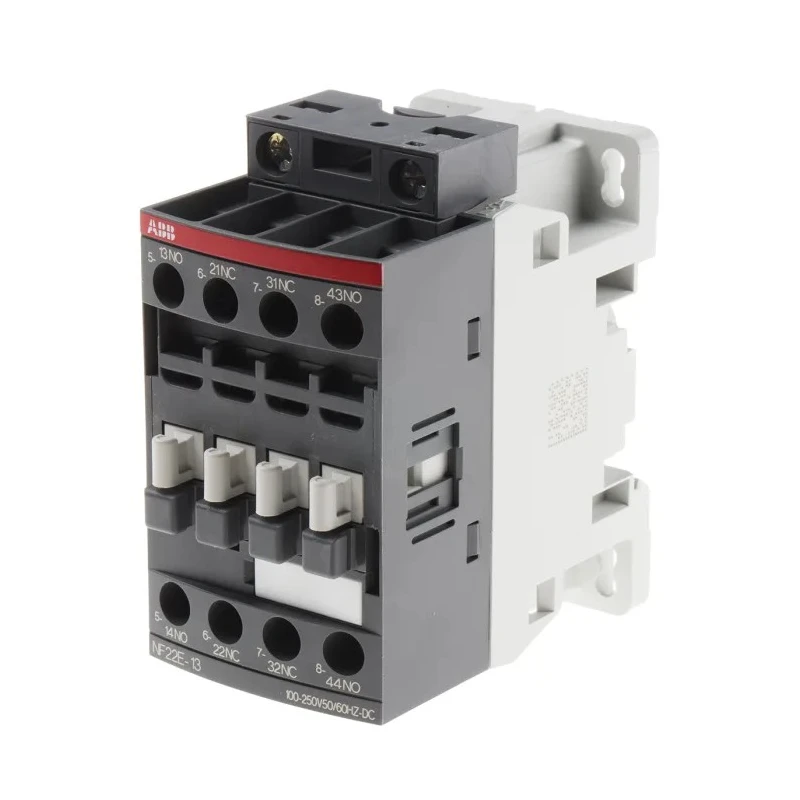

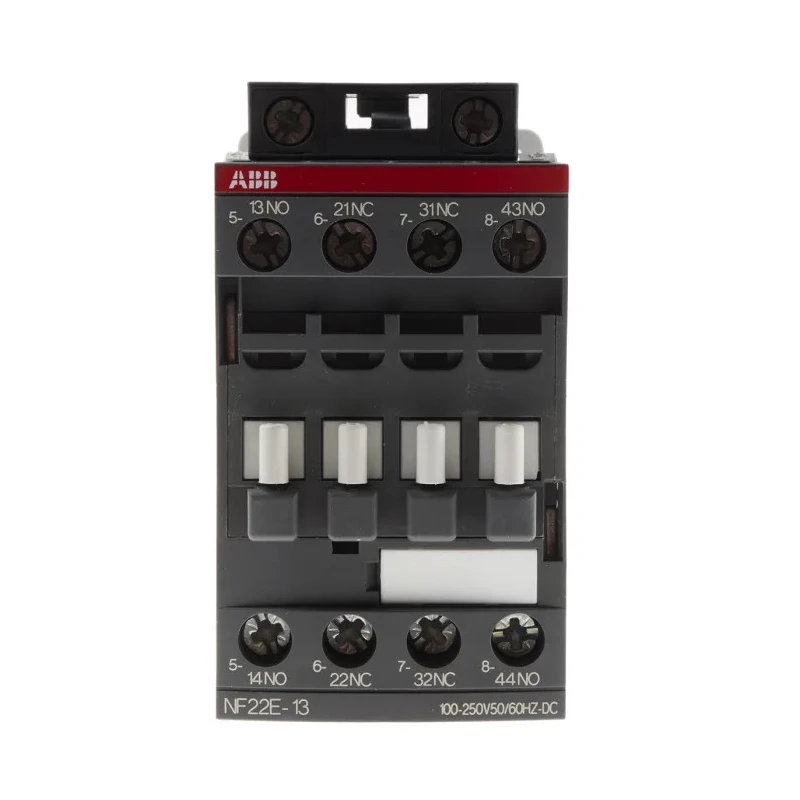

ABB NF Contactor Relay 230V AC/DC Coil, 4-Pole, 6A Contact Current, 1500V Power Rating, 2 NO/2 NC 1SBH137001R1322 NF22E-13



Category Contactor Relay Brand ABB Condition New

Specifications

Country of Origin	India
Brand	ABB
Function	Motor Control
Length	77mm
Model	1SBH137001R1322 NF22E-13
Depth	77mm
Width	45mm
Mount Type	DIN Rail
Series	NF
Maximum Operating Temperature	80°C
Minimum Operating Temperature	-60°C
Terminal type	Screw
Number of Poles	4
Standards/Approvals	IEC, UL/CSA
Contact Voltage	690V ac
Coil Voltage	230V ac/dc
Normal State Configuration	2 NO/2 NC
Contact Current	6A
Number of Auxiliary Contacts	4
Auxiliary Contact Configuration	2 NO/2 NC
Operational Current Ie	5kA
Control Circuit Voltage Uc	250V
Contactor Application	Motor Control
Pole and Throw Configuration	4

Key Features

Supports wide control voltage range from 100 to 250 V AC/DC.
Features 4 poles with 2 normally open and 2 normally closed auxiliary contacts.
Maximum contact voltage rating of 690 V AC for robust applications.
Compact DIN rail mounting style for easy installation.
Operational temperature range from -60°C to 80°C ensuring reliability in diverse environments.
Equipped with screw terminal connections for straightforward wiring.
Built-in surge protection enhances safety and device longevity.
Supports frequent switching with up to 1200 cycles per hour for AC-15 and 900 cycles per hour for DC-13 applications.

Product Description

ABB 1SBH137001R1322 NF22E-13 Contactor Relay is engineered for reliable motor control with a coil voltage of 230V AC/DC and four-pole configuration. This industrial-grade device supports a contact current of 6A and a power rating of 1500V, making it suitable for a variety of electrical control circuits.

Its compact dimensions (77mm length × 45mm width × 77mm depth) and DIN rail mounting capability allow for efficient installation in control cabinets. The relay features a wide control voltage range (100-250 V AC/DC) ensuring adaptability across variable power networks.

The device incorporates 2 normally open (NO) and 2 normally closed (NC) auxiliary contacts, mechanically linked to comply with safety standards. It offers maximum contact switching voltage of 690 V AC and an operational current Ie of 5 kA for durability in demanding environments.

Designed for industrial automation and electrical panel applications, this relay supports frequent switching cycles up to 1200 per hour (AC-15) and 900 per hour (DC-13). Its screw terminal type connections facilitate easy and secure wiring, while built-in surge protection improves operational safety.

The operational temperature range from -60°C to +80°C ensures functionality in diverse ambient conditions, suitable for manufacturing automation, energy management systems, and machinery control applications.

Supports wide control voltage range from 100-250 V AC/DC. Includes 2 normally open (NO) and 2 normally closed (NC) auxiliary contacts. Maximum contact voltage rating of 690 V AC. DIN rail mounting for convenient installation.

Operational temperature range -60°C to +80°C for versatility. Screw terminal connections provide ease of wiring. Built-in surge protection enhances safety and durability. Designed for frequent switching in industrial control circuits.

This ABB NF series contactor relay is ideal for electrical panel installations requiring reliable and efficient switching capabilities in industrial and automation environments. Explore our extensive selection of Contactor Relays and automation components in the Electronics & Electricals category on EnvMart.
