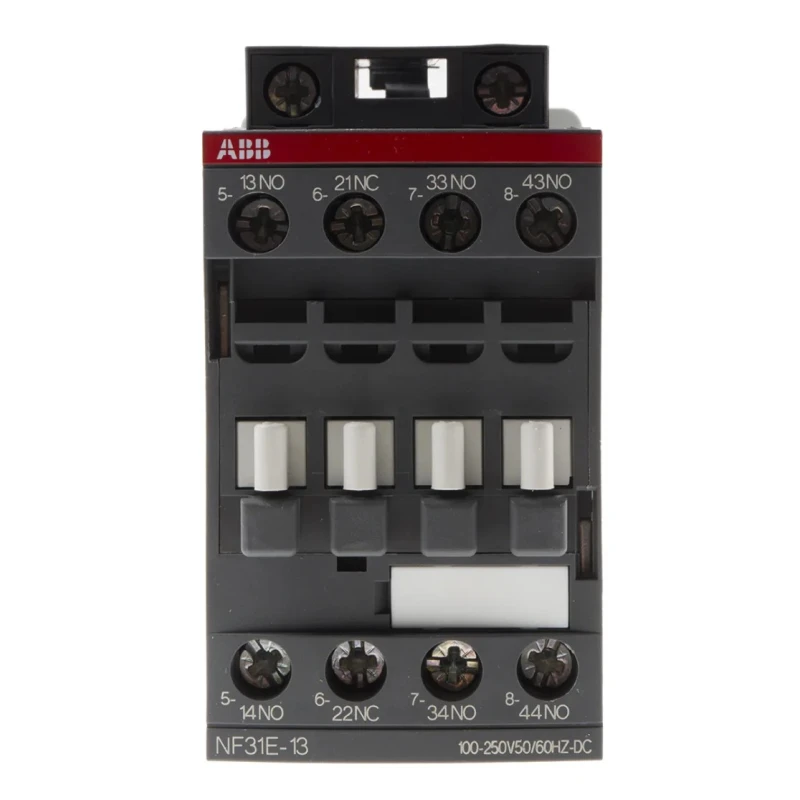

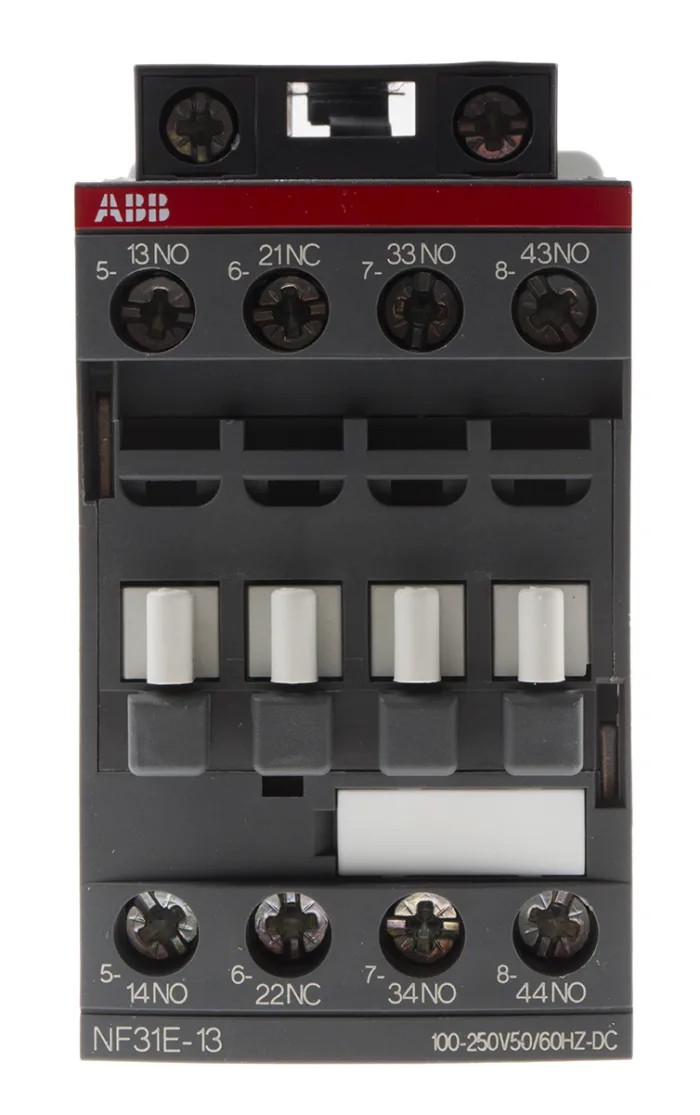

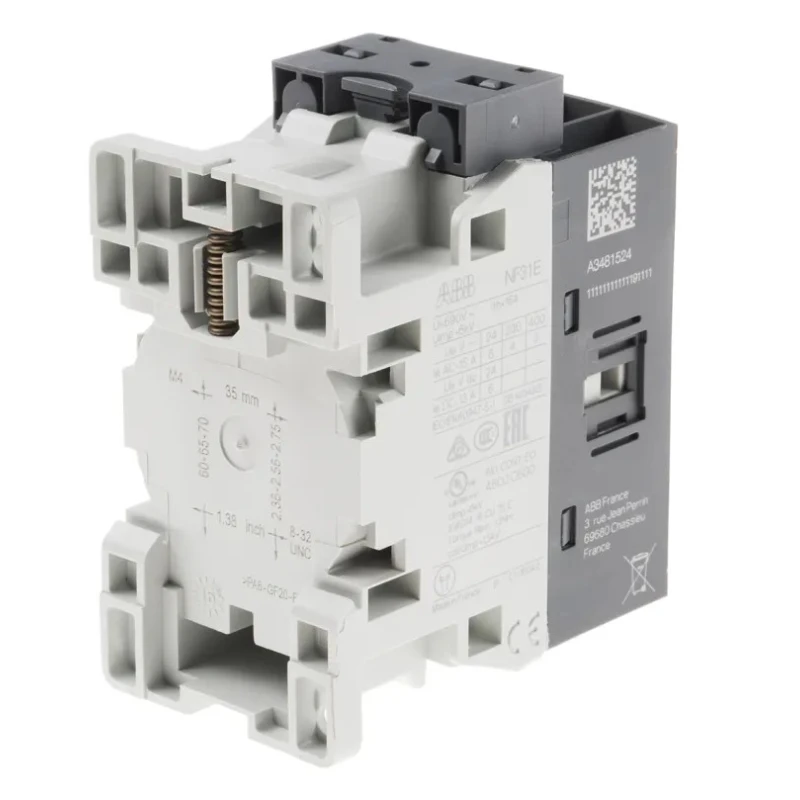

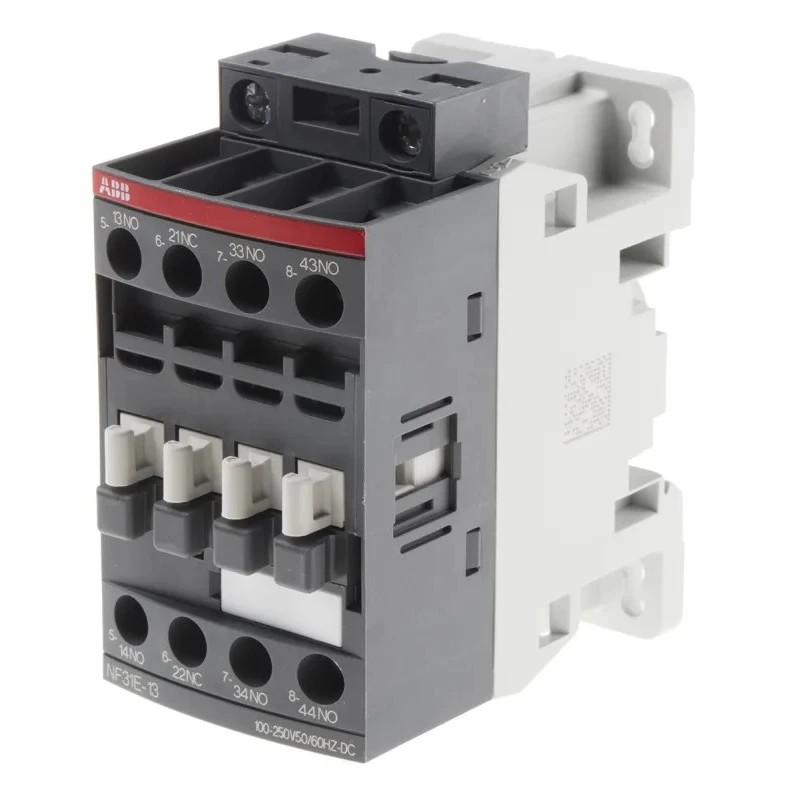

ABB NF Contactor Relay, 230V AC/DC Coil, 4-Pole, 6 A, 1500 kW, 250V Control Voltage, 3 NO/1 NC 1SBH137001R1331 NF31E-13

ABB 1SBH137001R1331 NF31E-13 Contactor Relay is designed for industrial, electrical, and automation applications requiring efficient motor control and protection. Featuring a 230V AC/DC coil and a robust 4-pole configuration, it supports contact currents of up to 6 A and power ratings of 1500 kW, enabling it to handle demanding loads with reliability.

This contactor relay is engineered with a normal state configuration of 3 normally open (NO) and 1 normally closed (NC) contacts, complemented by auxiliary contacts configured as 1 NO and 1 NC, providing flexibility in circuit design and control. The relay supports latching applications and motor protection through its self-locking and straight functions.

Mounting is facilitated via a DIN rail system, making installation straightforward and secure. The product operates within a wide temperature range from -40°C to 70°C, ensuring reliable performance in harsh industrial environments. Screw type terminals allow for secure electrical connections, and the control circuit voltage of 250 V ensures compatibility with standard control systems.

Built to comply with multiple international standards including IEC 60947-5-1, UL 508, NEMA, and CSA, this contactor relay guarantees safety and quality. Its compact size, measuring 80 mm in length, 45 mm in width, and 77 mm in depth, allows integration even in limited spaces.

Key applications include industrial automation, motor control, HVAC, manufacturing equipment, and other electrical control systems where reliable, efficient switching is paramount. The relay's surge protection and mechanically linked contact elements ensure minimized wear and long operational life.

Operates with a contact current rating of 6 A and power rating up to 1500 kW. Features a 3 NO/1 NC normal state contact configuration for robust motor protection. Construction supports DIN rail mounting for easy installation.

Designed to work within a temperature range of -40°C to 70°C. Includes screw type terminals and a control circuit voltage of 250 V. Meets international standards including IEC 60947-5-1, UL 508, NEMA, and CSA approvals. Compact dimensions of 80 mm length, 45 mm width, and 77 mm depth.

Ideal for latching contactor applications with self-locking and motor protection functions. Includes 4 auxiliary contacts with 1 NO/1 NC configuration to enhance circuit flexibility. Explore the range of ABB Contactor Relays and control gear on EnvMart to find compatible products meeting your automation and electrical control needs.
