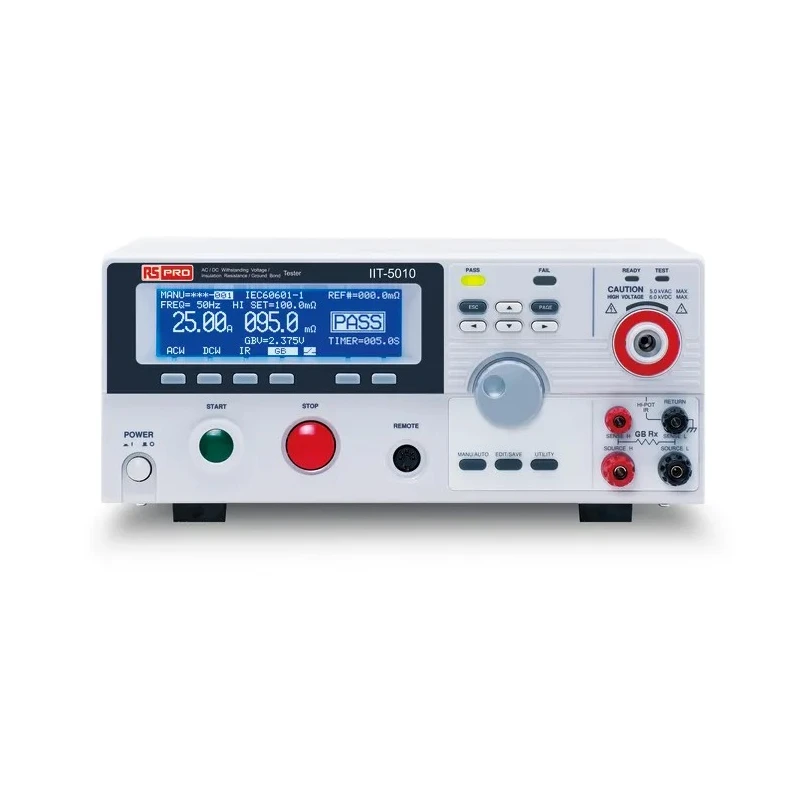

RS PRO Insulation Tester, 50 V Min, 1 kV Max, 50 GΩ IIT5010
Specifications
| Country of Origin | Taiwan |
|---|---|
| Display Type | LCD - Dot Matrix |
| Brand | RS PRO |
| Height | 148mm |
| Length | 587mm |
| Model | IIT5010 |
| Gross Weight | 27kg |
| Width | 330mm |
| Maximum Operating Temperature | 40°C |
| Tester Type | Insulation Tester |
| Minimum Operating Temperature | 0°C |
| Minimum test Voltage | 50V |
| Standards/Approvals | EN 61010-1 |
| Maximum Test Voltage | 1kV |
| Insulation Testing Resistance | 50GΩ |
| • High resolution | 1 μA or measuring current, 2 V for setting voltage |
| • Interface | RS-232C, USB device, Signal I/O and GPIB (optional) |
Key Features
- High-resolution 240 x 64 ice blue dot-matrix LCD display ensures clear readings.
- Manual and auto modes available for versatile testing applications.
- 500 VA AC test capacity with PWM amplifier enhances power efficiency and test reliability.
- Features sweep function for DUT characteristic analysis and true RMS current measurement.
- Equipped with safety interlock, zero crossing turn-on operation, and controllable ramp-up time.
- Memory capacity for 100 test condition blocks for efficient test setups.
- Interfaces include RS-232C, USB device, Signal I/O, and optional GPIB for remote communication.
Product Description
RS PRO IIT5010 Insulation Tester is a precision electrical test instrument designed to measure insulation resistance ranging up to 50 GΩ with a test voltage between 50 V and 1 kV. It incorporates a high-resolution ice blue dot-matrix LCD display and color LED indicators, facilitating quick and clear interpretation of test results for industrial, laboratory, and electrical safety testing applications.
The tester features a 500 VA AC test capacity driven by a highly efficient PWM amplifier that maintains stable test output despite input voltage fluctuations. Automatic output voltage cutoff and device under test (DUT) discharge functions ensure user safety and equipment protection.
This instrument supports both manual and automatic testing modes, equipped with features such as sweep function for Device Under Test characteristic analysis and true RMS current measurement, allowing detailed electrical performance assessment.
Robust safety features include high-intensity caution flash indicators, safety interlock functions, and zero crossing turn-on operation, facilitating compliant and reliable testing in conforming with EN 61010-1 standards.
The unit offers convenient functionality with a memory for 100 memo blocks to store test steps, a front panel remote start/stop terminal, and rear panel output availability. Communication options include RS-232C, USB device interface, Signal I/O, and optional GPIB for advanced control and data acquisition.
Ideal for electrical safety compliance testing during production, maintenance, or inspection processes, the RS PRO IIT5010 enhances operational efficiency and reliability in industrial and laboratory environments.
Set includes the RS PRO IIT5010 Insulation Tester. Explore more in the Insulation Tester category at EnvMart for comprehensive test and measurement solutions. High-resolution 240 x 64 dot-matrix LCD display. Manual and automatic operation modes.
500 VA AC test capacity with PWM amplifier. Safety interlock and automatic output voltage cutoff. Memory for 100 test condition blocks.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The RS PRO IIT5010 Insulation Tester can measure insulation resistance up to 50 GΩ.
This insulation tester has a test voltage range from 50 V to 1 kV.
It supports RS-232C, USB device, Signal I/O, and has an optional GPIB interface for remote communication.
It features a high-resolution LCD dot-matrix display with a resolution of 240 x 64.
The IIT5010 complies with the EN 61010-1 safety standard.
The maximum operating temperature for the RS PRO IIT5010 is 40°C.
It has a memory capacity for storing 100 test condition blocks.
The gross weight of this insulation tester is 27 kg.
The minimum operating temperature is 0°C, and the maximum is 40°C.
It has a test capacity of 500 VA AC, enhanced by a PWM amplifier for efficiency.
Yes, the IIT5010 is equipped with a safety interlock feature for user protection.
Yes, this model supports both manual and automatic operation modes for versatile testing applications.
