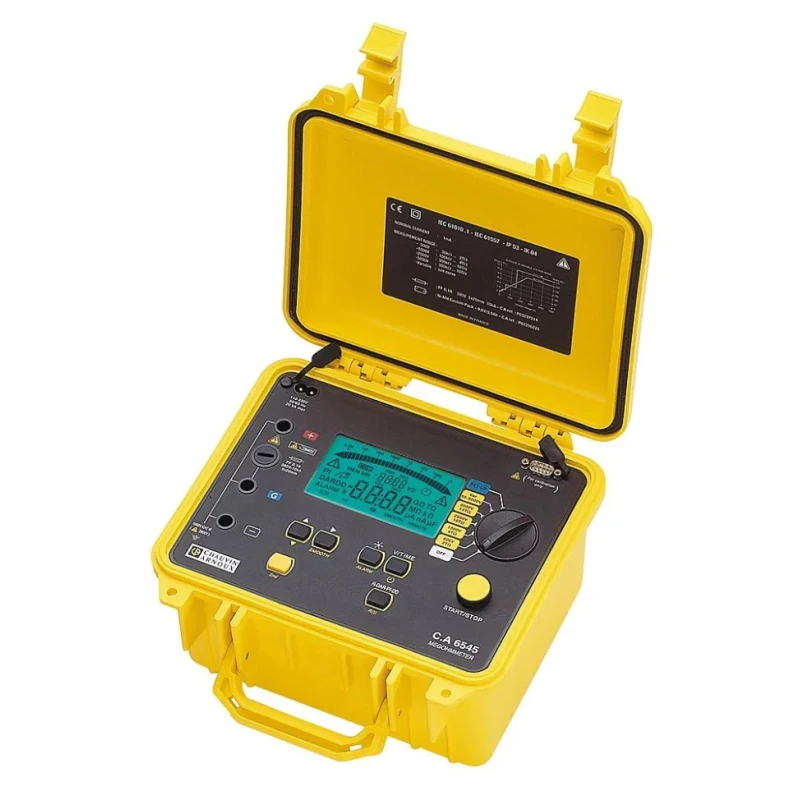

Chauvin Arnoux CA 6545 Insulation Resistance Tester 40–5100V 10000 GΩ Bar Graph Display Rechargeable NiMH P01139711

Free Delivery in India | Lowest Global Shipping Charges

Chauvin Arnoux CA 6545 Insulation Resistance Tester 40 - 5100V 10000 GΩ Bar Graph Display Rechargeable NiMH P01139711

Name: Chauvin Arnoux CA 6545 Insulation Resistance Tester 40 - 5100V 10000 GΩ Bar Graph Display Rechargeable NiMH P01139711
Brand: Chauvin Arnoux
SKU: 91805
Price: 5136.13 USD
Availability: InStock



Category Insulation Testers Brand Chauvin Arnoux Condition New

Specifications

Country of Origin	France
Display Type	Bar Graph Display
Brand	Chauvin Arnoux
Battery Life	30days
Battery type	Rechargeable Nickel-Metal Hydride
Height	80mm
Length	270mm
Model	P01139711
Gross Weight	4.3kg
Width	250mm
Tester Type	Insulation Resistance Tester
Minimum test Voltage	40V
Standards/Approvals	IEC 61557
Safety Category Level	Aurix, Cat I 2
Calibrated	RSCAL
Maximum Test Voltage	5100V
Insulation Testing Resistance	10000GΩ

Key Features

Equipped with adjustable test voltages from 40 to 5100V for comprehensive insulation measurement.
Features a highly visible bar graph display for quick quantitative analysis.
Uses rechargeable Nickel-Metal Hydride battery, ensuring up to 30 days of operation.
Test range covers 10 kΩ to 10 TΩ, suitable for industrial and laboratory environments.
Provides qualitative analysis via DAR, PI, and dielectric discharge ratio calculations automatically.
IEC 61557 approved and site-proof casing enhances safety and durability.
Includes functions like programmable test duration, voltage locking, programmable alarms, and smooth function.
Comes with a UK plug adapter and supports Cat I 2 safety levels for reliable operation.

Product Description

Chauvin Arnoux P01139711 CA 6545 Insulation Resistance Tester is a high-performance digital megohmmeter built for demanding industrial, laboratory, and electrical testing environments. Designed to quantitatively and qualitatively analyze insulation, the CA 6545 delivers precision measurements across a wide range of voltages and resistance values. The unit supports fixed test voltages of 500V, 1000V, 2500V, and 5000V, with fully adjustable settings from 40V to 5100V in 10V or 100V increments. Its large bar graph and digital LCD display ensure users get fast, accurate readings even in challenging site conditions.

Insulation resistance measurement from 10 kΩ up to 10 TΩ for broad application coverage. Automated voltage, capacitance, and residual current measurements streamline testing routines.

Features advanced analysis ratios including DAR (Dielectric Absorption Ratio), PI (Polarization Index), and DD (Discharge Ratio), calculated automatically for comprehensive diagnostics.

Robust site-proof casing provides durability and protection in field environments, supporting Cat I 2 safety standards. Programmable test duration, voltage locking, alarms, and memory functions offer flexible and reliable operation.

Long battery life using rechargeable NiMH cells for up to 30 days’ standard operation, ideal for extended projects. Device is calibrated (RSCAL) and conforms to IEC 61557 approval, ensuring reliable measurement accuracy and global compliance.

Dimensions: 270 mm (L) x 250 mm (W) x 80 mm (H); Weight: 4.3 kg; compact for easy transport and installation on site.

The CA 6545 insulation tester is suitable for analysis of insulation integrity in cables, motors, power systems, and switchgear across industrial, manufacturing, and construction sectors. It is also utilized in laboratory verification and maintenance of electrical apparatus, ensuring safety and operational reliability in demanding environments.

Explore more professional Insulation Testers from Chauvin Arnoux and leading categories at EnvMart.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The maximum test voltage of this model is 5100V, allowing for comprehensive insulation measurement across a wide range of applications.

It measures insulation resistance from 10 kΩ up to 10 TΩ, making it suitable for various industrial and laboratory environments.

This unit is equipped with a bar graph display, which provides quick quantitative analysis of measurement results.

It uses a rechargeable Nickel-Metal Hydride battery, providing up to 30 days of operation on a single charge.

The CA 6545 is calibrated and conforms to IEC 61557 standards, ensuring reliable measurement accuracy and compliance.

The dimensions of this model are 270 mm (L) x 250 mm (W) x 80 mm (H), and it weighs 4.3 kg, making it compact for transport.

It provides automated calculations for Dielectric Absorption Ratio (DAR), Polarization Index (PI), and Discharge Ratio (DD) for comprehensive diagnostics.

The minimum test voltage of the CA 6545 is 40V, allowing for flexible testing across different insulation scenarios.

This model is rated for Cat I 2 safety levels, ensuring reliable operation in various testing environments.

It is designed for use in industrial, manufacturing, and construction sectors, as well as in laboratory verification and maintenance of electrical apparatus.

Yes, it includes a UK plug adapter, which is necessary for operation in specific regions.

It features programmable test duration, voltage locking, alarms, and memory functions, enhancing its usability during testing.
