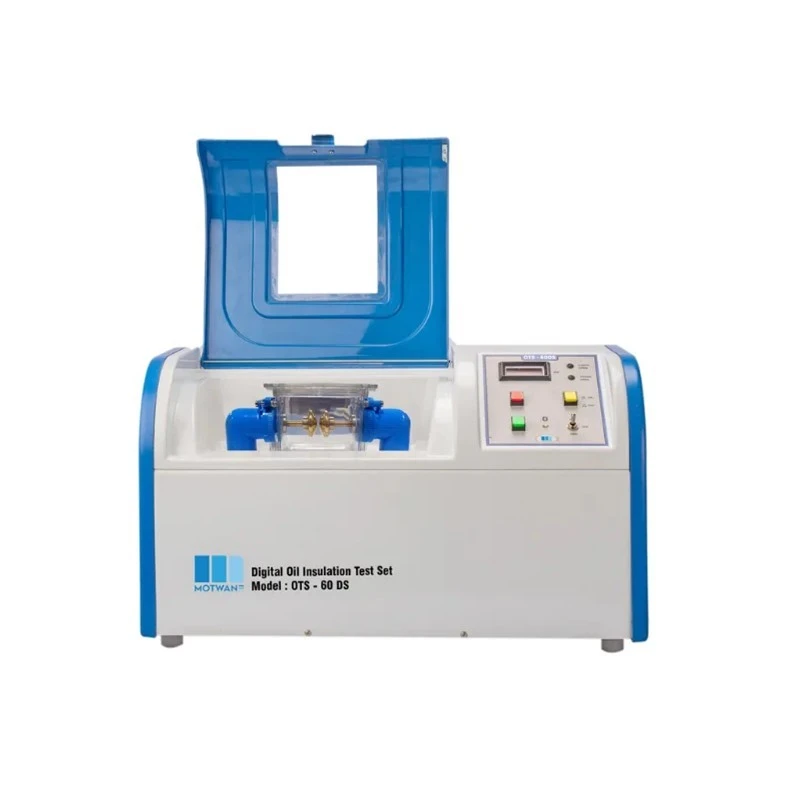

Motwane Digital Oil Insulation Test Set 60kV OTS-60DS/80DS/100DS image-1

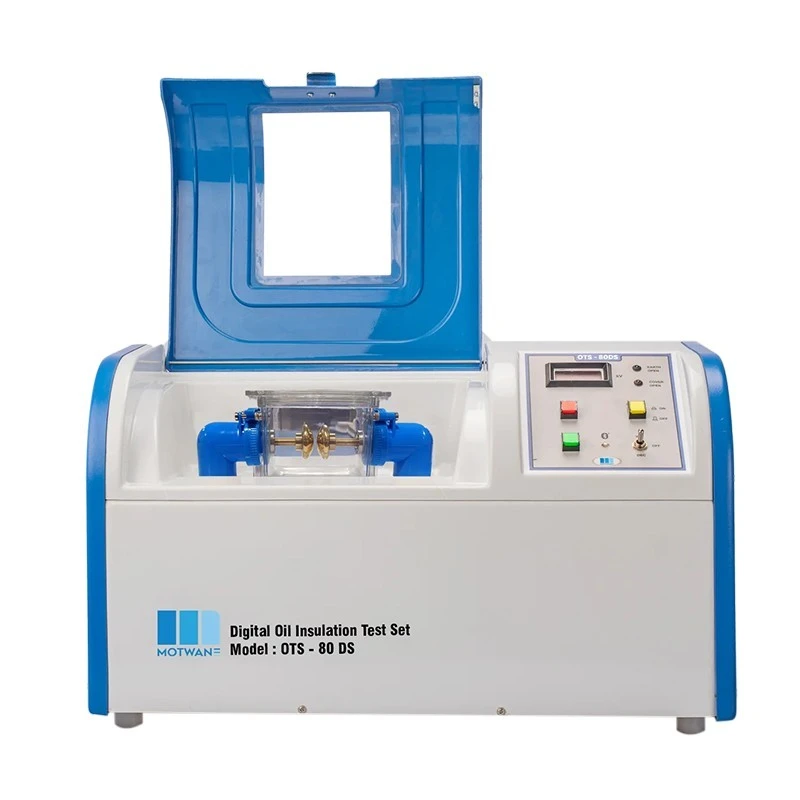

Motwane Digital Oil Insulation Test Set 60kV OTS-60DS/80DS/100DS image-2

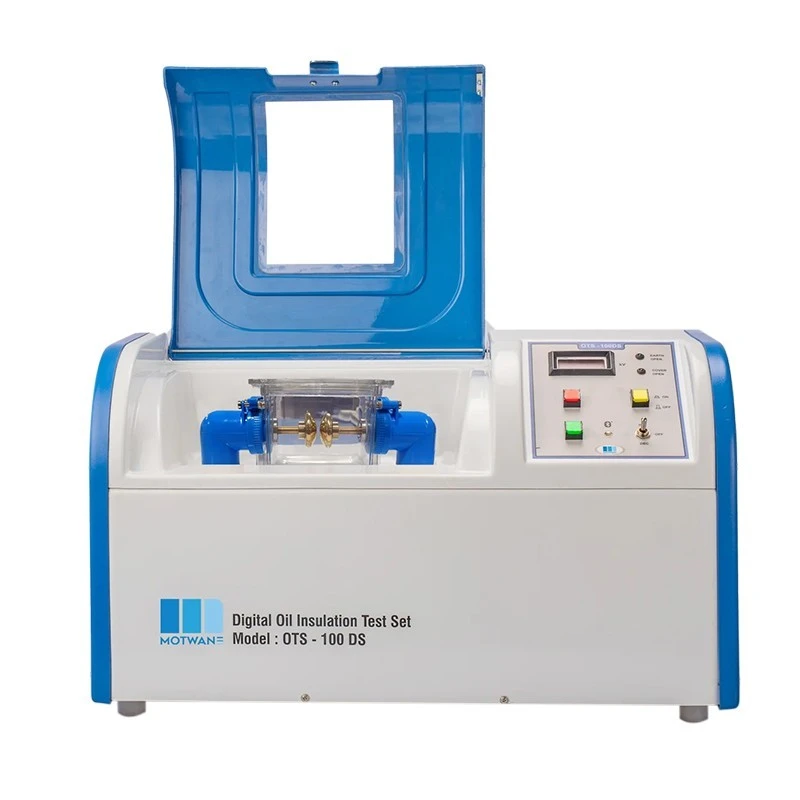

Motwane Digital Oil Insulation Test Set 60kV OTS-60DS/80DS/100DS image-3

Free Delivery in India | Lowest Global Shipping Charges

Motwane OTS-60DS/80DS/100DS Digital Oil Insulation Test Set 60kV

Name: Motwane OTS-60DS/80DS/100DS Digital Oil Insulation Test Set 60kV
Brand: Motwane
SKU: ADDWH
Price: 69.5 USD
Availability: InStock



SKU ADDWH Category Insulation Testers Brand Motwane

Specifications

Country of Origin	India
Display	3 ½ digit LED digital
Brand	Motwane
Operating Temperature	0°C to 55°C
Dimensions	655mm(L) x 325mm(W) x 385mm(H)
Storage Temperature	-10°C to 55°C
Protection Type	Zero Start Interlock / Safety Door Interlock / Earth Open Interlock / Overload Protection
Model	OTS-60DS/80DS/100DS
Output Voltage (V)	0 – 100kV (OTS-100DS) / 0 – 80kV (OTS-80DS) / 0 – 60kV (OTS-60DS)
Weight	Less than 40kg
Standards	IEC 60156 / IS 6792
Mains supply	110V/230VAC +10% / 50/60Hz / Single Phase
Voltage Accuracy	± 1% + 1kV
Voltage Resolution	0.1kV
Voltage Rise Rate	2kV/sec
Trip Time	Less than 1ms
Tripping Current	Less than 10mA
Earth Open Interlocking	Yes

Key Features

Fully Automatic Microprocessor based
Pre-programmed International Test Standards
Customized Test Sequences
Voltage Slew Monitoring: Real Breakdown Monitoring (RBM)
Upgraded Sequence as per IEC60156-2018
Suitable to test Mineral, Ester & Synthetic Oil
Internal Memory up to 100 Test
USB Interface
Inbuilt Thermal Printer
Voltage Checker for onsite Calibration (Optional Accessories)
Bluetooth enabled for Motware Mobile App

Product Description

Motwane offers a wide range of Oil Breakdown Voltage test kits to check the dielectric strength of insulating oil used in Transformers, Capacitors, Switchgears and Instrument Transformers for safe operation and maintenance. The OTS-DS series meets national & international standards for conducting BDV Tests. It is also facilitated with Zero Start Interlock and Earth Open Interlock for safety and to avoid hazards. It is also equipped with LED (Digital Display) along with Hold Facility. Designed with unmatched quality and improved reliability and safety, having earth & zero start, and safety door interlock ensuring a high degree of protection. OTS comes with two variant models - OTS-A series – a pre-programmed fully Automatic Oil BDV kit and OTS-DS Series – Motorized with Digital Display.

Applications

Transformer oil is used as an insulating medium in transformers, switchgear and other electrical apparatuses and it also acts as a coolant to dissipate heat of the transformer. In addition to these, Insulating Oil serves other purposes like it helps to preserve the core and winding as these are fully immersed inside oil and another important purpose of insulating oil is, it prevents direct contact of atmospheric oxygen with cellulose made of paper insulation used in windings, which is susceptible to oxidation. When insulating oil deteriorates due to aging / contamination which leads to a catastrophic event due to flash over in insulation. The voltage withstand capability of oil is often reduced due to contamination like dirt, water ingress and foreign particles.

OTS-DS series is useful for Oil Testing in the following equipment:

Power and Distribution Transformer
Bushing Instrument Transformer
Switchgear
Capacitors
