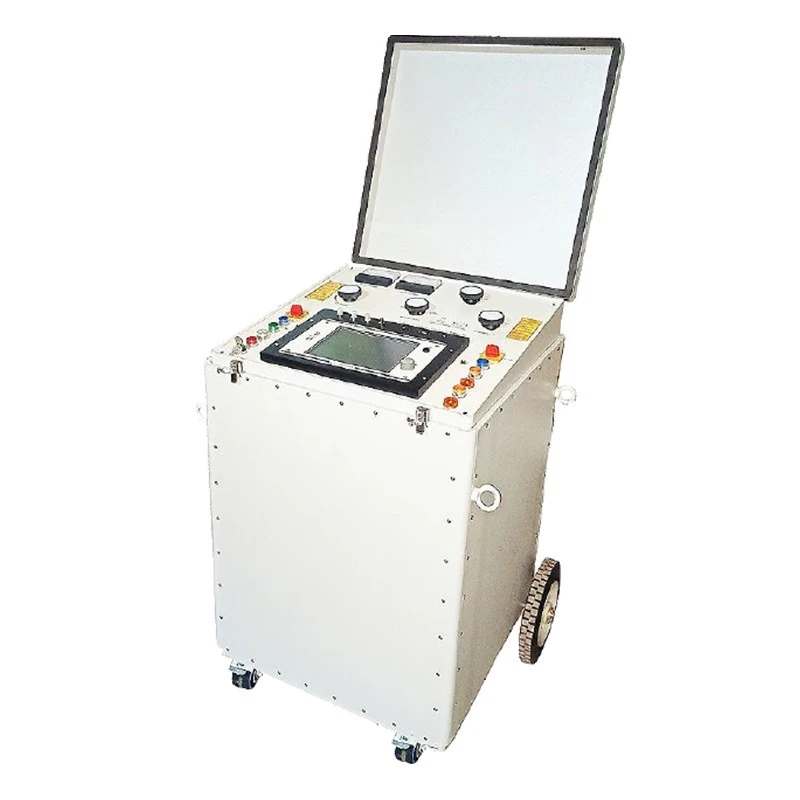

Motwane COMPAC 32D Cable Fault Locating System
Specifications
| Country of Origin | India |
|---|---|
| Power Consumption | 36 W max |
| Display | Color LCD display |
| Brand | Motwane |
| Applications | Pre-location of high resistance intermittent faults |
| Operating Temperature | 0 Deg C ~ 55 Deg C |
| Storage Temperature | - 5 Deg C ~ 60 Deg C |
| Protection Type | Over current tripping |
| Connectivity | RS-485 / USB |
| Model | COMPAC 32D |
| WORKING Voltage (V) | 35 kV max |
| Indication | Analog moving coil meter for output voltage (kV) Indication Analog moving coil meter for output leakage current (mA) Indication Leakage current trip lamp indication ON / OFF lamp indication Respective mode select lamp indication Analog moving coil meter for output voltage (kV) Indication Over Heat indication Visual lamp indication of ARC/SIM |
| Sampling rate | 500MHz |
| Internal Data Storage | 4 Gb (not less than 1000 reflectograms with data) |
| Safety Protection | Variac Zero inter-lock Output cable plugs inter-lock HV Switch inter-lock Mode Switch inter-lock Over Heat protection Emergency OFF switching |
| Output Energy | 2000 Joules full energy at each range |
| Impulse Mode | Single and Auto |
| Auto Impulse Sequence | 1.5 / 3 and 6 seconds intervals or as per customer request |
| Earth Discharge | Soft automatic discharge through in-built solenoid |
| Over Load Protection | Input current Limiter switch Fast blow fuse in mains and controlled supply |
| Burn Current | 60mA for short period |
| Pulse Width | 10ns – 100 000ns |
| Pulse Amplitude | 45V |
| Gain | -33 – 104dB |
| Output impedance (10 Ohm steps) | 10 – 500 Ohm |
| Propagation velocity (v/2) | 50.0 – 150.0m/μs |
| Propagation velocity (V/2) resolution | 0.1 m/us |
| Internal battery | 12 V (8 hours of operating when fully charged) |
| External power adaptor | Input 230V 50 Hz Output 24 V DC |
| ARC Stabilization Time | 20 ms approx |
| Output / Proof Test Current | 6 / 12 / 18 / 24mA |
| Surge Carrying Capacity | 2000 Joules Max |
| General Specification Power Supply | 230V AC + 10% / 50/60Hz Single phase |
| Output Ranges | 0 - 8 / 16 / 32 kV selectable & continuously variable |
| Sheath Fault | 0-8kV current up to 220mA |
| Pre-location Operating Mode | TDR / ARC/SIM / ICE/ICM |
| Dimensions. | 670 (L) x 700 (W) x 1000 (H) mm with Rubber wheels |
| Weight. | 215 Kg Approx. |
| HV DC Test ModeSheath Fault Mode Output Voltage (V) | 32 kV continuously variable |
| Burn Mode Burn Voltage (V) | 32kV |
Key Features
- Optimized surge energy for switchable capacitors values for each range.
- Pin-point location of cable faults in Low, Medium and High voltage cables by acoustic method.
- Perform DC / Proof test up to 32 kV
- Burn test up to 32 kV
- Surge voltage selectable in ranges 8, 16 and 32 kV.
- Full energy delivering capacity at each select range.
- High energy of 2000 Joules
- Adjustable output voltage from 0 to 100 % of selected range.
- Single manual Impulse for pre-location of cable faults.
- Cyclical pulse repetition for precise pin-pointing of cable faults in acoustic Method.
- Fully protected operation with three safety interlocks.a
- In-built current coupler for pre-location of cable faults distance on ICM/ICE mode.
- Emergency OFF facility
- Pre-location of cable faults distance with TDR, ICM/ICE, SIM/ARC mode.
- Menu driven operation.
- Interactive menu - guidance
- Maximum measuring range up to 64km
- Automatic discharging facility of cable under test, in case of power failure or after switching off.
- Continues operation for extended period in case of pin-point difficult cable faults.
- Rugged construction and easy to carry on site.
Product Description
Cable Fault Locating System COMPAC 32D is prime system to provide quick, effective, accurate and safe fault location. Specifically designed for service, industrial and power utility companies. It is a multi functional system in a trolley mounting design. The HV surge tester, DC High voltage test set, Arc reflection and Burn / Proof test is given for cable fault location of short circuit, open circuit, high resistance, and intermittent and sheath faults.
Application
The Cable Fault Locating System COMPAC 32D is used to perform DC high pot test, Pre-location of fault distance with the help of pre-locator unit and Pin-point underground cable fault in acoustic method with the help of suitable Surge wave receiver and Pin-point sheath faults in power transmission and distribution networks or service provider companies.
Standard Accessories
- HV Output Cable 10 sq mm single core screen cable 25 meter length with heavy duty clamp wound on cable drum
- Mains supply 1.5 sq. mm 3 core cable 25 meter length wound on cable drum
- Yellow / Green 10 sq mm earthing cable 25 meter length with heavy duty clamp wound on cable drum
- For Aux earth cable 25 meter length wound on cable drum
- Soft discharge rod 35kV
- Instruction / Operating Manual
- Printer Software CD for Pre-locator
- Rexin Cover
