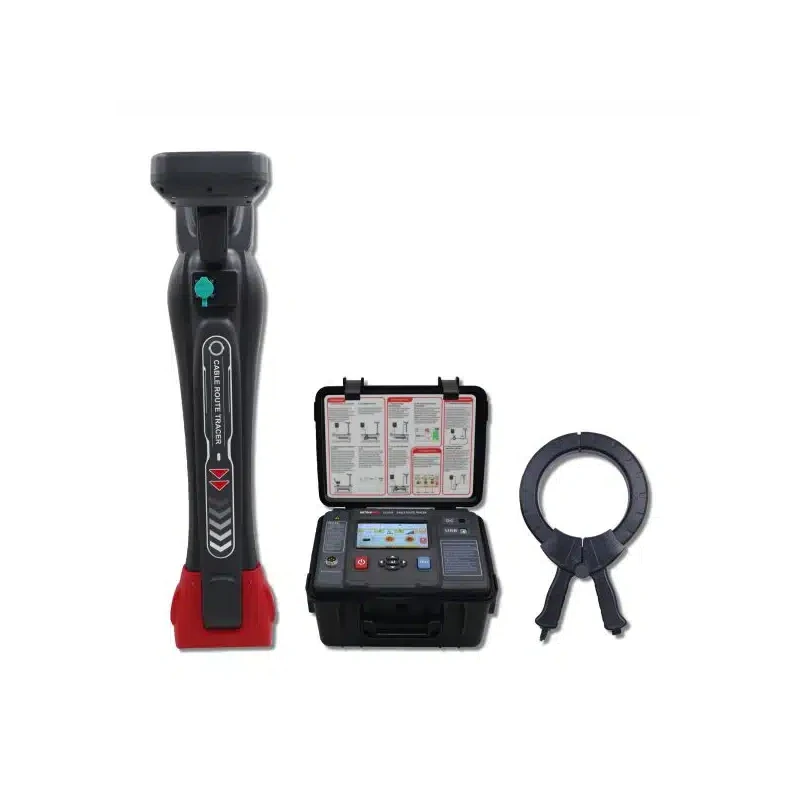

Metravi Cable Route Tracer and Locator PRO CL-2150 image-1

Free Delivery in India | Lowest Global Shipping Charges

Metravi Cable Route Tracer and Locator PRO CL-2150

Name: Metravi Cable Route Tracer and Locator PRO CL-2150
Brand: Metravi
SKU: ADSLC
Price: 2308.55 USD
Availability: InStock



SKU ADSLC Category Cable Tracker Brand Metravi Condition New

Specifications

Country of Origin	India
Package Contents	Metravi PRO CL-2150 Cable Route Tracer and Locator
Display	4.3" color touchscreen LCD(highlight screen visible in sunlight)
Size	350×155×700mm
Brand	Metravi
Working Environment	-10°C–40°C≤80%RH
Model	CL-2150
Weight	≈2kg
Output Power	Max 15W(9 adjustable gears)
Safety	IEC61010-1 CAT III 300V/CAT IV 150V/Pollution grade 2 IEC61010-1 CAT III 600V/IEC61010-031/IEC61326/Pollution grade 2
Charger	DC11.1V 3A
Output mode	Automatic identification by accessory
Output Frequency	250Hz/577Hz/640Hz/1.28kHz/2.56kHz/3.20kHz/4.09kHz/8.19kHz/10.2kHz/33kHz/66kHz/82kHz/197kHz
Coil Inner Diameter	φ200mm(customizable larger caliber available)
Storage Environment	-10°C–50°C≤95%RH(no condensation)
Output method	Direct connection/Caliper coupling/Induction
Connection Interface	Type-C USB/air socket USB/DC/aviation socket
Transmitter Weight	≈3.85kg
Withstand Voltage	AC2000V rms(between front and rear shell ends)
Instrument Size	320×275×145mm
Electromagnetic Characteristics	IEC61326(EMC)
Measurement Depth	0–20m
Transmitter Function	Multiple frequency signal transmission modes
Transmitter Power	10.8V large-capacity rechargeable lithium battery
Impedance	Automatic real-time matching and protection
Direct Output Voltage	Max 150Vpp
Circuit Protection	Overload and short-circuit protected
Transmitter Display	5" color touchscreen LCD
Transmitter Clamp Weight	≈1.18kg
Transmitter Clamp Dimensions	297×194×39mm
Clamp Inner Diameter	φ125mm
Clamp Cable Length	3m
P-Wire	Red test line 3m/Black test line 3m

Key Features

Multiple detection modes: classical positioning mode, wire cruise mode, signal distortion measurement mode.
Classic positioning mode: compass, direction and signal amplitude display, visually display the left and right direction of the pipeline.
Lead cruise mode: 360 omni directional pipeline path indication, continuous display of depth, current, and pipeline relative position. The interface is simple and intuitive, and it can be operated without experience.
Current direction determination (partial frequency): can be calibration current direction, eliminate adjacent line interference, to prevent tracking errors.
Multiple detection frequencies: 13 active detection frequencies and 2 passive detection frequencies.

Product Description

Metravi PRO CL-2150 cable route tracer and locator is a professional underground and concealed cable locating system designed for accurate route tracing, depth measurement, and fault finding in electrical, utility, construction, and maintenance applications. Built for field engineers and service teams, this advanced locator features a bright 4.3 inch colour touchscreen receiver that remains visible in sunlight and a 5 inch colour touchscreen transmitter for clear control and monitoring on site. The system supports direct connection, caliper coupling, and induction output methods, allowing flexible tracing of power cables, buried lines, and service routes in different environments. With adjustable output power up to 15W, multiple transmission frequencies, automatic accessory identification, and measurement depth from 0 to 20 m, it delivers reliable performance for demanding locating work. Safety features such as overload and short circuit protection, automatic impedance matching, and high withstand voltage improve operational confidence. Rechargeable lithium battery power, rugged construction, large clamp and coil diameters, and versatile interface options make Metravi PRO CL-2150 an excellent choice for precise cable tracing, route identification, and utility maintenance. Available on EnvMart, these Cable Trackers are designed for locating and tracing cables or wires quickly and accurately. Metravi Cable Trackers offer precision, ease of use, and reliability, making them ideal for electricians, technicians, and maintenance professionals.
