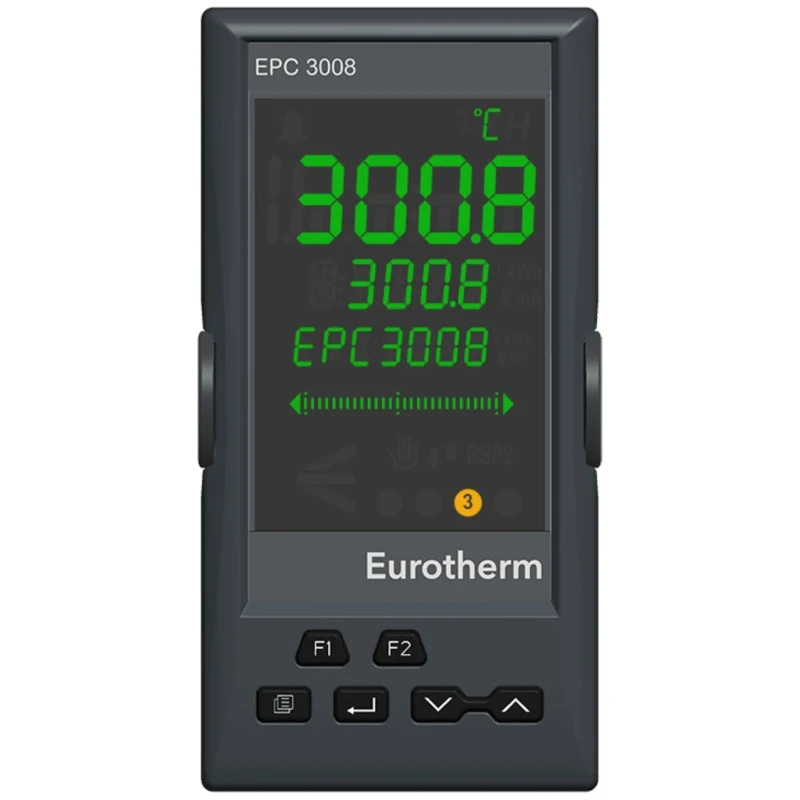

Eurotherm Panel PID Controller 1 Input 1 Relay 24V 1 x 24 Segment Advanced Programmer EPC3008

Eurotherm EPC3008 Panel PID Controller EPC3008 is a precision single loop programmable controller designed for advanced temperature management in industrial processes. It operates on a 24V supply voltage and supports one input compatible with current, thermocouple, and voltage signals, providing flexible integration with various sensor types. The controller includes one relay output for switching operations and features a 1 x 24 segment advanced programmer for complex ramp/soak profiles to optimize process yields.

This device is engineered for robustness with a panel mount form factor and IP65 rating that protects it from dust and water ingress, suitable for harsh industrial environments. It features a clear LCD display for real-time monitoring and control adjustments.

The EPC3008 range boasts enhanced PID control with a cutback function to minimize overshoot and deliver fast response. Its inputs meet stringent accuracy criteria, complying with AMS2750 and CQI-9 aerospace standards, making it suitable for high-precision temperature-critical applications.

Connectivity options include fast Ethernet via RJ45 connector supporting Modbus, Ethernet/IP, and BACNet protocols, enabling seamless communication within Industry 4.0 and Industrial Internet of Things ecosystems. The controller's resilience is certified with Achilles Level 1 cybersecurity to protect against cyber-attacks.

With a compact footprint (101mm length, 48mm width, 90mm depth) and convenient screw terminals, installation and integration into control panels are straightforward. Operating temperature ranges from 0°C to 55°C, making it reliable for various industrial heating processes.

Applications include process control in manufacturing, HVAC systems, thermal treatment, and automation systems requiring precise temperature regulation and programmable control sequences.

Equipped with 1 input compatible with current, thermocouple, and voltage signals. Features 1 relay output rated for 24V supply voltage operation. Includes a 1 x 24 segment advanced programmer for detailed process control.

Rugged panel mount design with IP65 protection for durability in industrial environments. High accuracy inputs compliant with aerospace and industrial standards AMS2750 and CQI-9. Fast Ethernet with RJ45 connector supports IIoT and Industry 4.0 applications.

Adopted RoHS compliance and designed for operating temperature range from 0°C to 55°C. Robust screw terminal connections ensure reliable installation. Compact dimensions: 101mm length, 48mm width, 90mm panel depth. Manufactured in Poland ensuring quality engineering standards.
