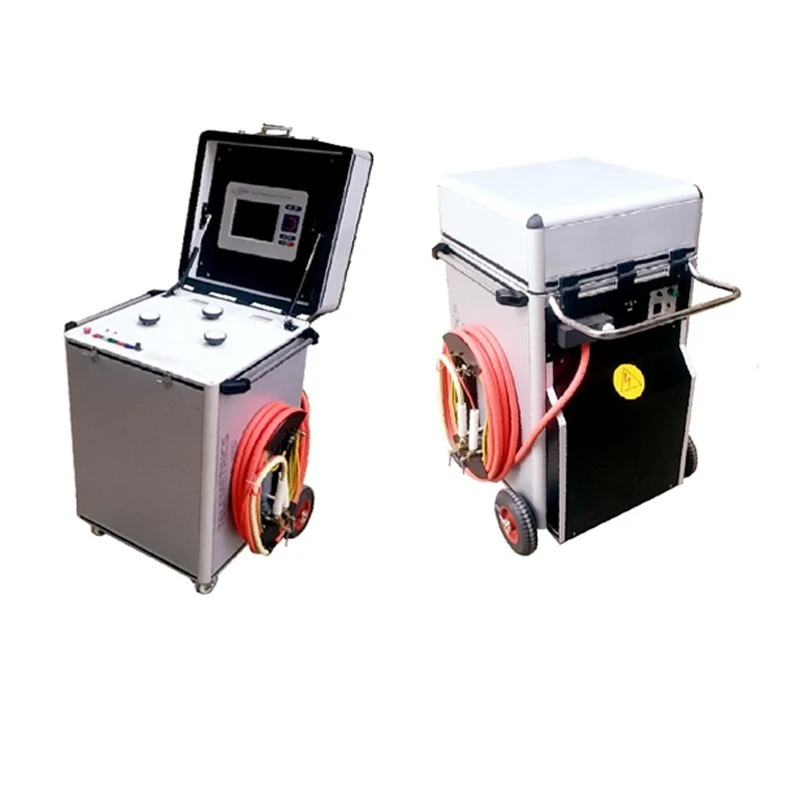

Motwane COMPAC 32D-A Cable Fault Locating System
Specifications
| Country of Origin | India |
|---|---|
| Display | 8.4 inches / Color LCD / Touch screen Refer separate catalogues for TFL 9 |
| Measuring range | 0-64km |
| Brand | Motwane |
| Power Supply | 230VAC±10% / 50 Hz / Single phase |
| Dimensions | 550(L)×700(W)×750(H) mm +Top cover 200mm + Wheel 100mm |
| Model | COMPAC 32D-A |
| Temperature | Working 0 Deg C∼55 Deg C Storage 5 Deg 60 Deg C |
| Weight | 210 Kg Approx |
| Indication | ON/OFF lamp indication Analog moving coil meter for output voltage (kV) Indication Over Heat indication |
| Sampling rate | 200MHz |
| Output Current | 10 mA |
| Output Energy | 2000 Joules full energy at each range |
| Auto Impulse Sequence | 1.5 / 3 / and 6 seconds intervals |
| Burn Current | 60 mA |
| VOP Range | 190−300m/μs |
| Width of Transmitting Pulse | 40 ns−3.56 μs |
| Surge Mode Operating Time | Surge Test 2-3 hours continuous |
| DC Test | 3 minutes |
| Output Ranges | 0-8 / 16 / 32 kV selectable & continuously variable |
| Sheath Fault | 8kV-100mA (Optional) |
| LT Range Impulse Mode | 0-4kV-2000 Joules max. Single and Auto |
| Cable Fault Pre-locator | TFL 9 Voltage of 30V transmitting pulse |
| DC Test Mode Output Voltage (V) | 32 kV |
Key Features
- Two working mode Surge and DC high voltage (High-Pot) test.
- Pin-point location of cable faults in Low, Medium and High voltage cables by acoustic method.
- Output voltage selectable in three ranges 8, 16, 32 kV.
- LT Range 0 - 4kV - 2000 Joules
- High energy of 2000 Joules
- Full energy delivering capacity at each select range.
- Perform Surge and DC high voltage test up to 32 kV.
- Fully protected operation with safety interlocks.
- Pre-location of cable faults with TDR, ICM & SIM.
- Pre-location range up to 64 Km.
- Big LCD touch screen color display.
- Pre-location of cable fault distance with suitable pre-locator unit in ICM mode.
- Automatic discharging facility of cable under test, in case of power failure or after switching off.
- Continues operation for extended period in case of pin-point difficult cable faults.
- Rugged construction and easy to carry on site.
Product Description
The Cable Fault Locating System COMPAC 32D is useful equipment to pin-point underground power cable faults by the acoustic method, using a suitable surge receiver. It is also used to pre-locate cable fault distance with the help of a suitable pre-locator unit in impulse current (ICM) mode.
Application
It is used to pin-point underground cable faults in acoustic mode with the help of suitable surge wave receiver and to perform DC high voltage di-electric test up to 32 kV in power transmission and distribution cable networks.
Standard Accessories:
- HV Output Cable 10 sq mm single core screen cable 10-meter length with heavy-duty clamp.
- Mains supply cord 10-meter length.
- Yellow/Green 10 sq mm earthing cable 10-meter length.
- Associated receiver used to pin-point cable faults with a surge tester
Available on EnvMart, these Cable Trackers are designed for precise wire tracing and continuity testing in electrical installations. Motwane Cable Trackers are known for their accuracy and efficiency, making them essential tools for electricians, telecom technicians, and network engineers.
Over Load Protection Safety Protections:Input current limiter switch in mains input supply Fast blow fuse in controlled supply Variac zero inter-lock Output cable plug inter-lock HV Switch inter-lock Over Heat Protection Input current Limiter in input supply
