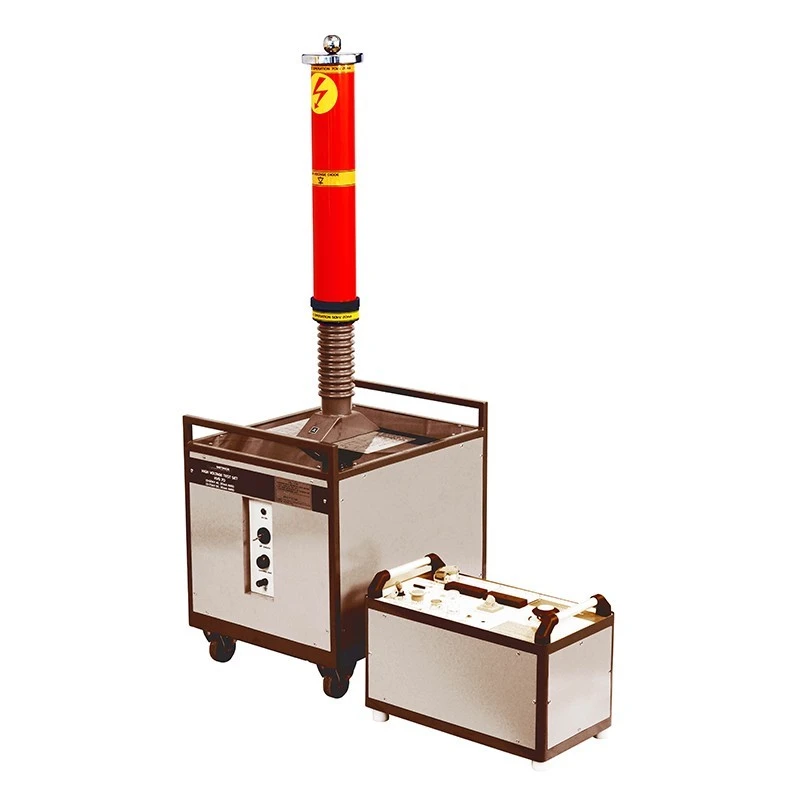

Motwane HVG 70 High Voltage Test Set
Specifications
| Country of Origin | India |
|---|---|
| Brand | Motwane |
| Power Supply | 230V AC ±10% / 50 Hz / Single Phase |
| Storage Temperature | -5 Deg C ~ 60 Deg C |
| Protection Type | Circuit Breaker in Mains input / Variac Zero Inter Lock / Over Current Trip / Over Temperature Trip |
| Working Temperature | 0 Deg C ~ 55 Deg C |
| Model | HVG 70 |
| Indication | Analog Meter / Digital LED display for output voltage (kV) / Analog Meter / Digital LED display for output leakage current (mA) / ON/OFF indication / Over Heat LED indication / Over Current Trip LED indication |
| Duty Cycle | 3 min ON / 10 min OFF |
| Mode of Operation | Manual |
| Timer Mode | Manually selectable as required |
| Output Voltage Control | Controlled manually through variac |
| DC Rated Voltage (kV) | 70 |
| DC Rated Current (mA) | 10 |
Key Features
- Output Voltage 0-50 kV AC & 0-70 kV DC continuously variable.
- Output Current 10 or 20mA manually selectable ranges selected by rotary switch.
- Duty Cycle 3 min ON / 10 min OFF.
- Timer Mode Manually selectable as required.
- Power Supply 230V AC + 10%, 50 Hz, Single phase.
- Close type or Open type frame.
- Control unit and HV unit.
Product Description
The High Voltage Test Set HVG or Dielectric Hi-Pot tester is a reliable, accurate, and rugged tool designed to assess the dielectric strength of insulation in power cables, capacitors, transformers, and various other electrical components. This test is also referred to as a Dielectric Breakdown Test. The AC/DC Hi-Pot test is crucial for identifying insulation deterioration early to enable corrective measures. It is an essential part of electrical safety tests mandated by standards organizations worldwide.
Application
DC high voltage tester is used to check die-electric strength of power cable, DC high voltage capacitors many others DC components.
AC high voltage tester is used to check insulation properties of Transformers, Switchgear & Relays, Motors, Coils & Chokes, Generators, Capacitors, and other electrical AC apparatus in power transmission and distribution network OR manufactures .
Standard Accessories:
- HV Output Cable: 10 sq mm single core screen cable, 5-meter length with heavy-duty clamp.
- Mains supply cord: 3-meter length.
- Yellow/Green earthing cable: 10 sq mm, 5-meter length.
