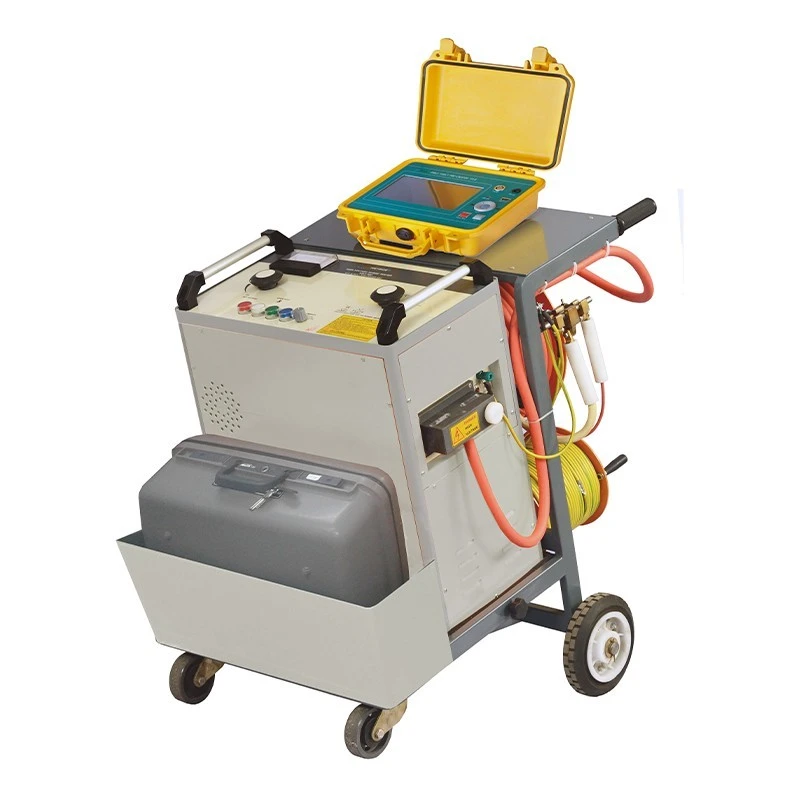

Motwane LOCOMP Trolley Mounted LT Cable Fault Locating System
Specifications
| Country of Origin | India |
|---|---|
| Brand | Motwane |
| Power Supply | 1.5∨×8 AA size batteries 230V AC±10% / 50Hz single phase |
| Operating Temperature | 0 deg C to 55 deg C |
| Dimensions | 00(L)×672(W)×950 (H) mm with Rubber wheels. |
| Storage Temperature | 5 deg C to 60 deg C |
| Protection Type | Variac zero inter-lock Output cable plug inter-lock HV Switch inter-lock Over Heat Protection Input current Limiter in input supply |
| Working | Acoustic and Magnetic |
| Model | LOCOMP |
| Weight | 95 Kg Approx. |
| Indication | ON/OFF lamp indication Analog moving coil meter for output voltage (kV) Indication Over Heat indication |
| Measurement Mode | TDR (Time Domain Reflectometer) |
| Output Energy | 500 Joules full energy at each range (Optional 1000Joules) |
| Impulse Mode | Single and Auto |
| Auto Impulse Sequence | 4 and 8 seconds intervals |
| Impedance Matching | Automatic |
| Fault Distance Range | 8 Km (240m / 480m / 1000m / 2000m / 4000m / 8000m) |
| Pulse Width | 40 ns-10 us |
| VOP Range | 100-300 |
| Pulse Amplitude | 0-30 V Adjustment adaptive |
| Output Ranges | 0-2 & 4 kV |
| Channels Acoustic | Broad band Filter 70-3000 Hz |
| Channels Magnetic | 9820 Hz |
| Channels Gain | More than 96 dB for both magnetic and acoustic channels |
| Ground Microphone | MIC S |
Key Features
- Optimized surge energy for switchable capacitors values for each range.
- Pin-point location of cable faults in Low voltage cables by acoustic method.
- Output voltage selectable in two ranges 2 & 4 kV.
- High energy of 500 Joules.
- Full energy delivering capacity at each select range.
- Continuously variable output voltage from 0 to 100% of the selected range.
- Fully protected operation with safety interlocks.
- Cyclical pulse repetition for precise pin-pointing of cable faults in Acoustic Method.
- Pre-location of cable fault distance with TDR method.
- Maximum range of 8 km for pre-location of cable faults.
- Auto/Manual mode for pre-location of cable faults.
- Automatic discharging facility of cable under test, in case of power failure or after switching off.
- Continuous operation for extended periods in case of pinpointing difficult cable faults.
- Rugged construction and easy to carry on-site.
Product Description
Telemetrics make trolley mounting cable fault locating LOCOMP system is a basic requirement of any power company. It is a very useful system to localize the underground power cable fault of any nature in short time in low voltage power cable network. The system is designed for stand-alone operation. It provides a surge tester of full surge energy of 500 Joules with 2 & 4 kV selectable output voltage for continuous operation for pin-point of cable faults.
Application
The cable fault locating system LOCOMP is used to pre-location of fault distance with the help of pre-locator and pin-point cable fault using surge tester in acoustic method with the help of surge wave receiver in low voltage power cable network.
Standard Accessories
- HV Output Cable 6 sq mm single core screen cable 15-meter length with a heavy-duty clamp.
- Mains supply cable 15-meter length.
- Yellow/Green 10 sq mm earthing cable 15-meter length
Available on EnvMart, these Cable Trackers are designed for precise wire tracing and continuity testing in electrical installations. Motwane Cable Trackers are known for their accuracy and efficiency, making them essential tools for electricians, telecom technicians, and network engineers.
