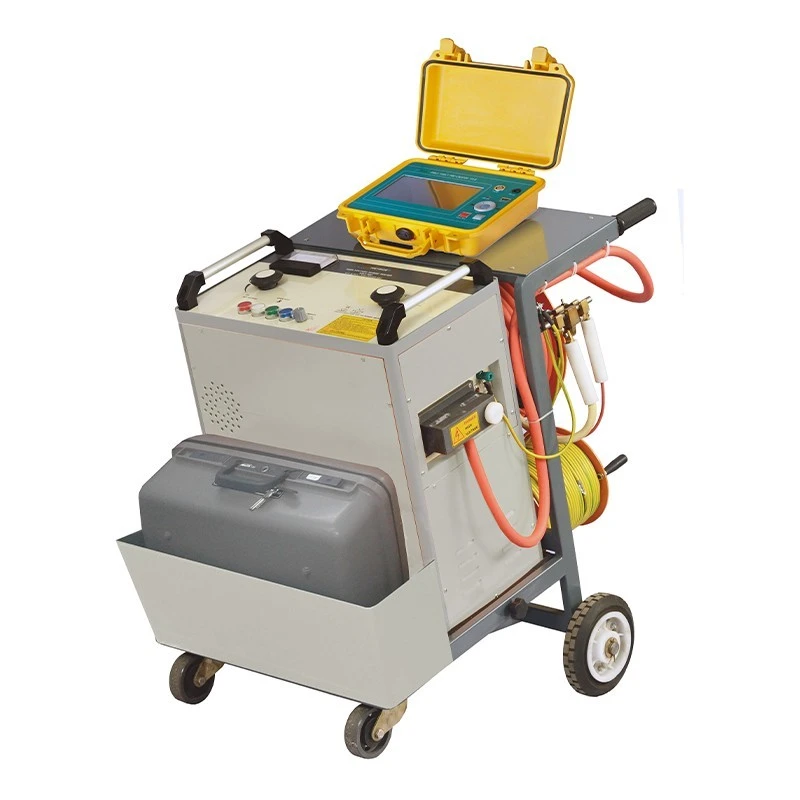

Motwane HICOMP Trolley Mounted HT Cable Fault Locating System
Specifications
| Country of Origin | India |
|---|---|
| Brand | Motwane |
| Power Supply | 1.5 v×8 AA size batteries 230V AC±10% / 50Hz single phase |
| Operating Temperature | 0 deg C to 55 deg C |
| Dimensions | 800 30(L)×750(W)×950 (H) mm with Rubber wheels. |
| Storage Temperature | 5 deg C to 60 deg C |
| Protection Type | Variac zero inter-lock Output cable plug inter-lock HV Switch inter-lock Over Heat Protection Input current Limiter in input supply |
| Working | Acoustic and Magnetic |
| Model | HICOMP |
| Weight | 120 Kg Approx. |
| Indication | ON/OFF lamp indication Analog moving coil meter for output voltage (kV) Indication Over Heat indication |
| Sampling rate | 200 MHZ |
| Measurement Mode | TDR (Time Domain Reflectometer) ICM (Impulse Current Mode) |
| Output Energy | 1000 Joules full energy at each range |
| Impulse Mode | Single and Auto |
| Auto Impulse Sequence | 1.5 / 3 and 6 seconds intervals |
| Pulse Width | 5ns |
| VOP Range | 100~300 meter/sec |
| Output Ranges | 0−4 / &16 kV |
| Channels Acoustic | Broad band Filter 70-3000 Hz |
| Channels Magnetic | 9820 Hz +10 Hz Bandwidth Filter |
| Channels Gain | More than 96 dB for both magnetic and acoustic channels |
| Fault Distance | 100 km |
| Low Voltage of | 30∨ |
Key Features
- Optimized surge energy for switchable capacitors values for each range.
- Pin-point location of cable faults in Low and Medium voltage cables by acoustic method.
- Output voltage selectable in three ranges 4, 8 & 16 kV.
- High energy of 1000 Joules.
- Full energy delivering capacity at each select range.
- Continuously variable output voltage from 0 to 100% of the selected range.
- Fully protected operation with safety interlocks.
- Cyclical pulse repetition for precise pin-pointing of cable faults in Acoustic Method.
- Pre-location of cable fault distance with TDR & ICM method.
- Maximum range of 100 km for pre-location of cable faults.
- In-built current coupler for pre-location of cable faults distance on ICM mode.
- Memory up to 50 echo-grams available to store pre-located fault results.
- Automatic discharging facility of cable under test, in case of power failure or after switching off.
- Continues operation for extended period in case of pin-point difficult cable faults.
- Rugged trolley mounting system for easy to carry on site
Product Description
Telemetrics make trolley mounting cable fault locating HICOMP 16A system is a basic requirement of any power company. It is a very useful system to localize the underground power cable fault of any nature in short time in low and medium voltage power cable networks. The system is designed for stand-alone operation. It is provided with a surge tester of full surge energy of 1000 Joules with 4, 8 &16 kV selectable output voltage for continuous operation for pin-point of cable faults. The cable fault locating system HICOMP 16A is used to pre-location of fault distance with the help of a pre-locator unit and pin-point cable fault using a surge tester and highly sensitive surge wave receiver by the acoustic method in power cable networks.
Application
The cable fault locating system HICOMP is used to pre-location of fault distance with the help of pre-locator and pin-point cable fault using surge tester in acoustic method with the help of surge wave receiver in low voltage power cable network.
Standard Accessories
- HV Output Cable 10 sq mm single core screen 15-meter length with heavy-duty clamp.
- Mains supply cable 6 sq. mm 15-meter length.
- Yellow/Green 10 sq mm earthing cable 15-meter length.
- BNC to crocodile for TDR measurements 15-meter length
