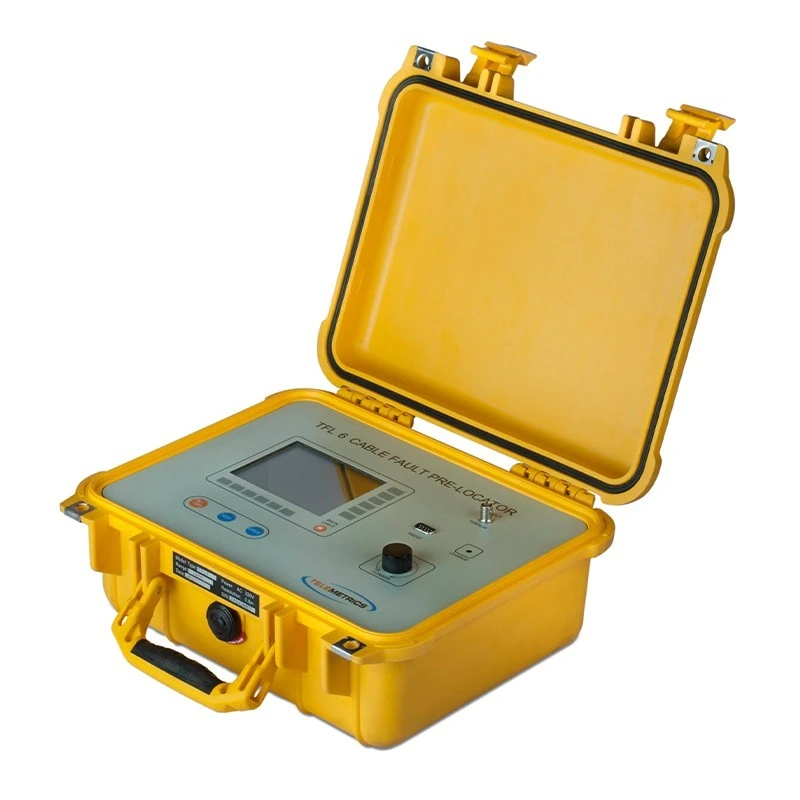

Motwane TFL 6 Cable Fault Pre locator
Specifications
| Country of Origin | India |
|---|---|
| Measuring range | 0-16 Km (In 0.5 / 1 / 2 / 4 / 8 and 16 km selectable ranges) |
| Brand | Motwane |
| Storage Temperature | -40 Deg C ~ +60 Deg C |
| Working Temperature | -20 Deg C ~ +55 Deg C |
| Model | TFL 6 |
| Operating Mode | TDR and ICM |
| Output Impedance | 5-80 Ohm |
| Sampling rate | 100 MHZ (10 ns) |
| VOP Range | 90-300 m/μs |
| Voltage of Transmitting Pulse | 30 V |
| Width of Transmitting Pulse | 40 ns- 3.56 us |
| Voltage Withstand | 400 VAC (50/60Hz) |
| Resolution TDR Mode | ≤±1 m when detecting range ≤4 Km / ≤±4 m when detecting range Greater than 4 Km |
| Resolution ICM Mode | ≤±4 m when detecting range ≤4 Km / ≤±16.1 m when detecting range Greater than 4 Km |
| Charging Input Supply Voltage (V) | 110-265 V AC / 50Hz |
| Charger Output Voltage (V) | 8.4 V±10% DC |
| Operation Time of Batteries | 5 Hours Approx |
Key Features
- Two Workmode TDR & ICM.
- Capable to locate faults in any type of metallic single core armored or multi-core armored cables.
- Comparison facility of faulty cable with healthy.
- Maximum measuring range up to 16 km.
- Big LCD display with back light facility.
- Battery Operated.
Product Description
Cable Fault Pre-locator TFL 6 is a latest micro-processor controlled, menu driven, digital technology to offer precise fault distance in any type of metallic cables. It is a portable equipment easy to use, single - phase unit for cable fault pre-location of short and open circuit fault by using the Time Domain Reflection (TDR) method in low, medium and high voltage cables. Another Impulse Current Method (ICM) is available and use for pre-location of low insulation or intermittent nature cable fault by coupling with High voltage surge tester. The maximum measuring ranges enable for pre-location of cable fault is 16 km.
Application
It is used for pre-location of short circuit, open circuit fault distance in TDR mode and Low insulation / high resistance / flashing fault in ICM mode with the help of suitable High voltage surge tester by power transmission and distribution network companies and service providers.
Standard Accessories
- Software CD
- Carrying case
- Instruction / User Manual
- Ext Current Coupler
Available on EnvMart, these Cable Trackers are designed for precise wire tracing and continuity testing in electrical installations. Motwane Cable Trackers are known for their accuracy and efficiency, making them essential tools for electricians, telecom technicians, and network engineers.
